Zinwell Ku-Band DRO LNB

45 In stock

KU-Band DRO LNBs

Zinwell

Zinwell is specialized in designing and manufacturing of RF products that include LNBs, Multi-switches, and VSAT. For LNB business, Zinwell is a pioneer to develop LNBs and validate with dish antennas in Compact Antenna Test Range (CATR) Lab for the worldwide market. We are always pursuing modern technology; for example, dCSS LNB is the...
-
+
USD 24.00
USD 24.00
Add to wishlist
Tags: /

Zinwell is specialized in designing and manufacturing of RF products that include LNBs, Multi-switches, and VSAT. For LNB business, Zinwell is a pioneer to develop LNBs and validate with dish antennas in Compact Antenna Test Range (CATR) Lab for the worldwide market. We are always pursuing modern technology; for example, dCSS LNB is the latest development of Zinwell. The dCSS LNBF can significantly reduce cost and complexity of installation. With the highest quality, Zinwell's LNBs and Multi-switches have been adapted by most of Tier-1 DTH operators around the world.

Mechanical Diagram

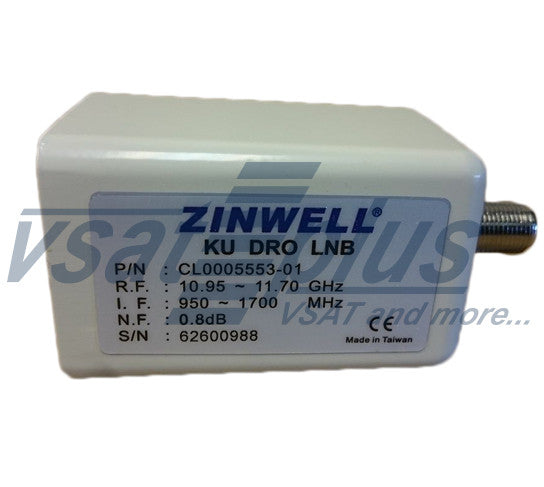

Zinwell ZK-VE1

  • Input Frequency Range 10.95 ~ 11.70 GHz
  • Output Frequency Range 950 ~ 1700 MHz
  • Local Oscillator Frequency 10 GHz
  • Input Waveguide Flange WR-75
  • Conversion Gain 50 ~ 60 dB
  • Gain Variation ±3 dB (any 30deg C)
  • Gain Flatness ±1 dB p-p@54MHz 4 dB p-p@750MHz
  • Noise Figure 1.0 dB (Typ.)
  • Output Power (at 1dB Gain Compression Point) 0 dBm (Min.)
  • L.O. Frequency Stability (-40℃ ~ 60 ℃) ±1 MHz
  • L.O. Phase Noise
    • ( 1 KHz Offset ) - 65 dBc/Hz
    • ( 10 KHz Offset ) - 75 dBc/Hz
    • ( 100 KHz Offset )  - 90 dBc/Hz
  • Output Return Loss 7.5 dB (Min.)
  • Output Connector F-Typ, Female
  • D.C Supply Voltage 11.5 ~ 24 V
  • D.C Current Consumption 150mA (Max.)
  • Operating Temperature -40℃ ~ 60℃
