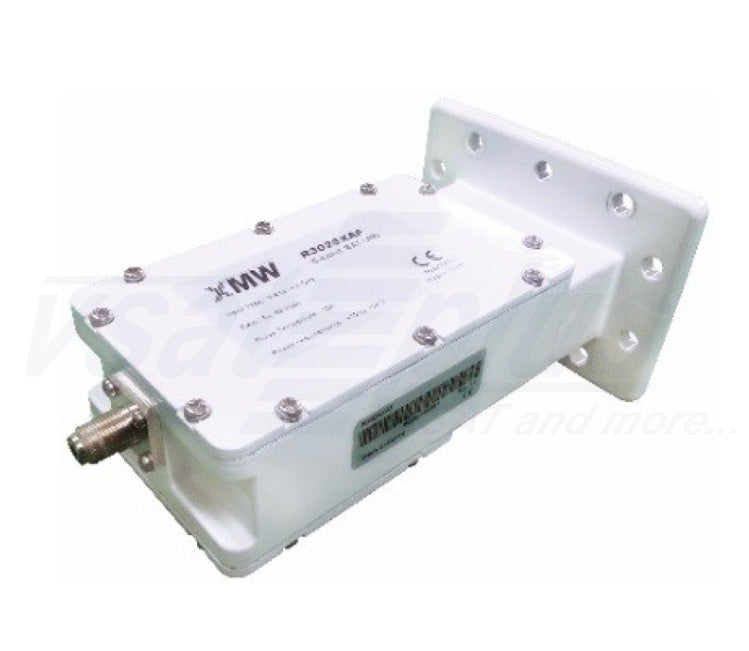

XMW PLL-BPF-3754 C-band PLL LNB for 5G (Compare to 3200-BPF-3)
RF Filter
XMW provides a comprehensive line of products for C-Band Pass Filter. RF freq. (GHz) 3.754 - 4.20 LO freq. (GHz) 5.15 IF freq. (MHz) 950 - 1525 Noise temperature 30K typ @+23℃ LO stability ±5 to ±25 KHz Phase noise...
- SKU::
- Category: Accessories, All Products, RF Filter
XMW provides a comprehensive line of products for C-Band Pass Filter.
RF freq. (GHz) |
3.754 - 4.20 |
LO freq. (GHz) |
5.15 |
IF freq. (MHz) |
950 - 1525 |
Noise temperature |
30K typ @+23℃ |
LO stability |
±5 to ±25 KHz |
Phase noise |
-78dBc/Hz @1KHz -88dBc/Hz @10KHz -100dBc/Hz @100KHz |
Input VSWR |
2.2 : 1 |
Output VSWR |
2.2 : 1 |
Gain |
62dB typ |
Output P1dB |
+5dBm min |
RF input level |
-30dBm max |
Image Rejection |
40dBc min |
Spurious |
-60dBc max @-10dBm |
Band rejection |
R3000IE0-5G: 30dB @3.7GHz |
DC voltage / current |
+12 to +24 V / 250mA |
Input waveguide |
CPR-229G |
Output connector |
N-female, F-female |
Dimension |
148(L) x 99(W) x 70(H) mm |
Weight |
680g |
Operating temperature |
-40 to 60°C |
