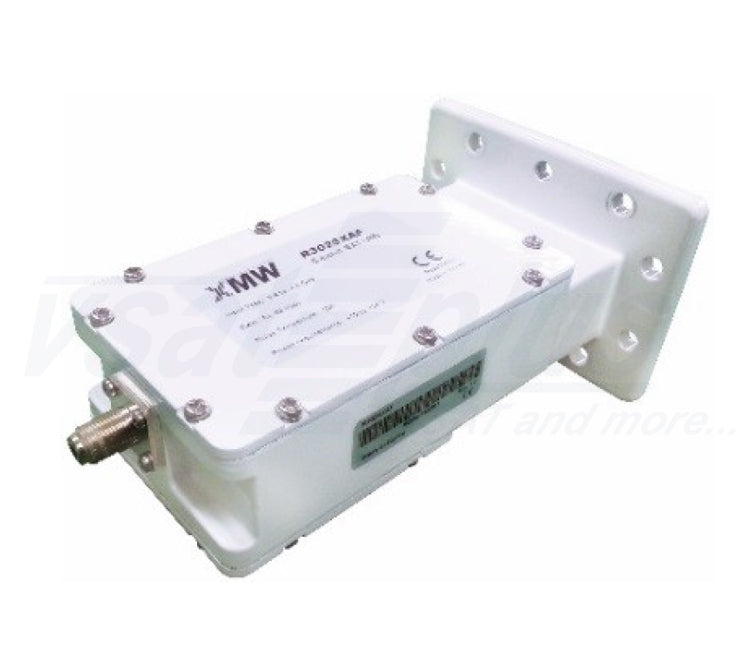

XMW PLL-BPF-3625 C-band PLL LNB for 5G (Compare to 3200-BPF-2)

XMW PLL-BPF-3625 C-band PLL LNB for 5G (Compare to 3200-BPF-2)

RF Filter

XMW provides a comprehensive line of products for C-Band Pass Filter.  RF freq. (GHz) 3.625 - 4.20 LO freq. (GHz) 5.15 IF freq. (MHz) 950 - 1525 Noise temperature 30K typ @+23℃ LO stability ±5 to ±25 KHz Phase noise...

USD 469.00
  • Category: Accessories, All Products, Featured products, RF Filter

XMW provides a comprehensive line of products for C-Band Pass Filter.

RF freq. (GHz)

3.625 - 4.20

LO freq. (GHz)

5.15

IF freq. (MHz)

950 - 1525

Noise temperature

30K typ @+23℃

LO stability

±5 to ±25 KHz

Phase noise

 -78dBc/Hz @1KHz

-88dBc/Hz @10KHz

-100dBc/Hz @100KHz

Input VSWR

2.2 : 1

Output VSWR

2.2 : 1

Gain

62dB typ

Output P1dB

+5dBm min

RF input level

-30dBm max

Image Rejection

40dBc min

Spurious
               Signal related
               Power supply related



 -60dBc max @-10dBm
 -50dBc max @-10dBm

Band rejection

R3000IC-5G: 30dB @3.525GHz

DC voltage / current

+12 to +24 V / 250mA

Input waveguide

CPR-229G

Output connector

N-female, F-female

Dimension

148(L) x 99(W) x 70(H) mm

Weight

680g

Operating temperature

-40 to 60°C
