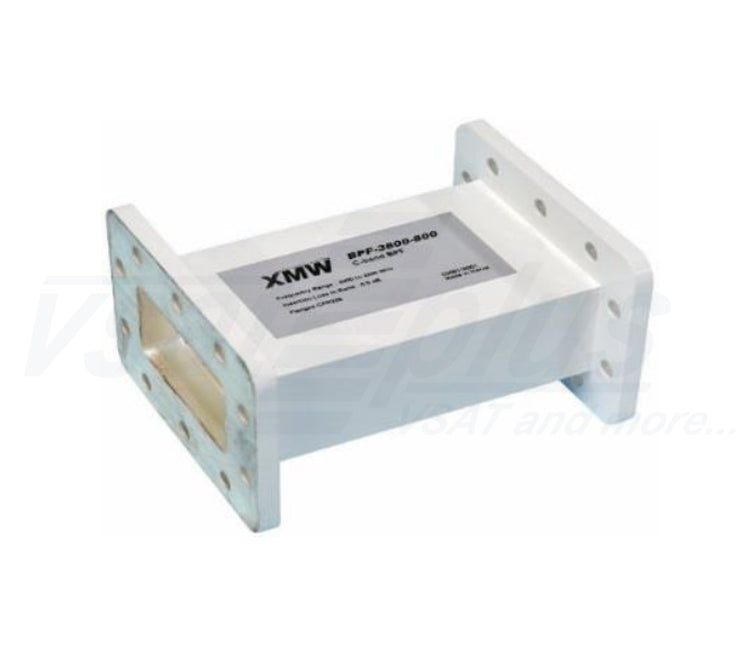

XMW BPF-3977-446 C-Band Pass Filter (Compare to Norsat BPF-C-3)

XMW BPF-3977-446 C-Band Pass Filter (Compare to Norsat BPF-C-3)

Request for a quote

SKU: BPF-3977-446

XMW provides a comprehensive line of products for C-Band Pass Filter.

FREQUENCY FILTER

XMW BPF-3977-446 C-Band Pass Filter (Equal to Norsat BPF-C-3)



OUTLINE DRAWING

SPECIFICATION

Center Frequency

3912.5MHz

Bandwidth

575MHz

Frequency Range

3625 to 4200 MHz

Insertion Loss

 0.5dB max

 Return loss in band

 15dB min

 Rejection@CF±300MHz

                     @CF±400MHz

                     @CF±450MHz

                     @~8GHz



25dB min

60dB min

70dB min

70dB min



Flanges

In: CPR229G, Out: CPR229F

Weight

650g
