Ubiquiti Networks

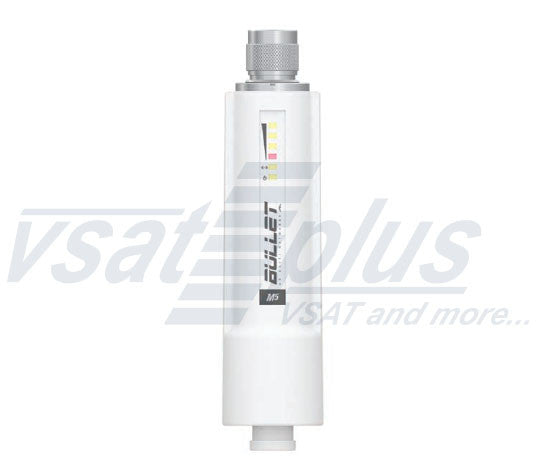

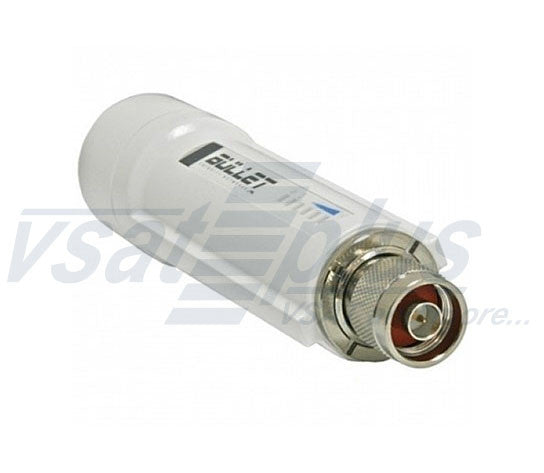

Ubiquiti BM5HP Bullet M5 HP airMAX Outdoor 5GHz WiFi PoE Access Point

Ubiquiti BM5HP Bullet M5 HP airMAX Outdoor 5GHz WiFi PoE Access Point

Request for a quote

SKU: BM5HP

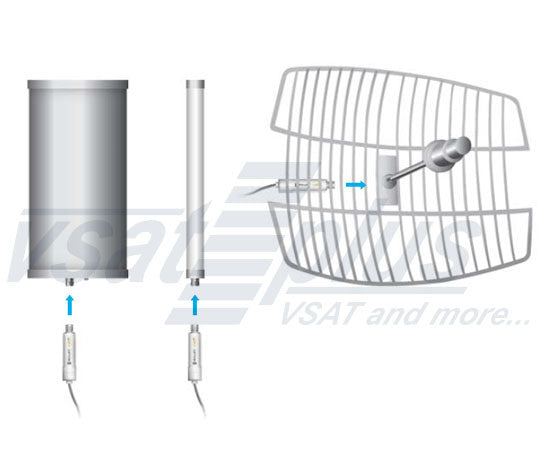

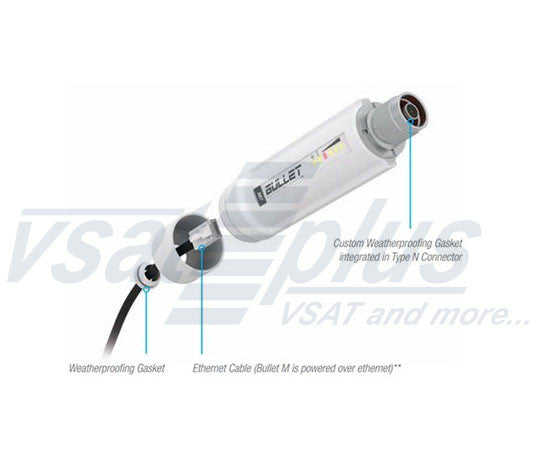

The Ubiquiti Bullet M5 HP airMAX is the latest version of the popular Ubiquiti Bullet. Like its predecessor, this Ubiquiti Bullet M5 HP airMAX is a wireless radio/access point with an integrated Type N RF connector that can be directly plugged into any Antenna to create a powerful and robust outdoor Access Point, Client, or Bridge. The Bullet M features a signal strength LED meter for antenna alignment, a low-loss integrated N-type RF connector, and a robust weatherproof design.

Key Features

  • High Performance 802.11a/n radio architecture.
  • Adjustable Channel support (5/10/20 MHz).
  • Works with any suitable antenna.
  • Ubiquiti AirOS software.
  • External status LEDs with signal indicator.
  • Power over Ethernet (PoE) support.*
  • Please note: No PoE injector is supplied

Zero Variable Deployment

The Ubiquiti Bullet M5 HP airMAX eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Ubiquiti Bullet M5 HP airMAX, operators can just plug and go.

Integrated AirMax Technology

The Ubiquiti Bullet M5 HP airMAX can instantly become a powerful TDMA Base Station utilising Ubiquiti's breakthrough AirMax technology. With AirMax, PtMP networks can scale gracefully while maintaining high throughput and low latency performance.

airOS

Ubiquiti airOS is an intuitive, versatile, highly developed Ubiquiti Firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful ? Firmware architecture which enables hi-performance outdoor multipoint networking.

Standard warranty: 1-year

Specifications

System Information

  • Processor Specs Atheros MIPS 24KC, 400MHz
  • Memory Information 32MB SDRAM, 8MB Flash
  • Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet

Regulatory / Compliance Information

  • Wireless Approvals FCC Part 15.247, IC RS210, CE
  • RoHS Compliance YES

Range Performance

  • Outdoor (Antenna Dependent) Over 50km

Physical / Electrical / Environmental

  • Enclosure Size 15.2 x 3.7 x 3.1 cm (length, width, height)
  • Weight 0.18kg
  • Enclosure Characteristics Outdoor UV Stabilised Plastic
  • Power Rating Up to 24V
  • Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)*
  • Operating Temperature -40C to 80C
  • Operating Humidity 5 to 95% Condensing
  • Shock and Vibration ETSI300-019-1.4

Max Power Consumption

  • 6 Watts, 24v MAX
View full details
