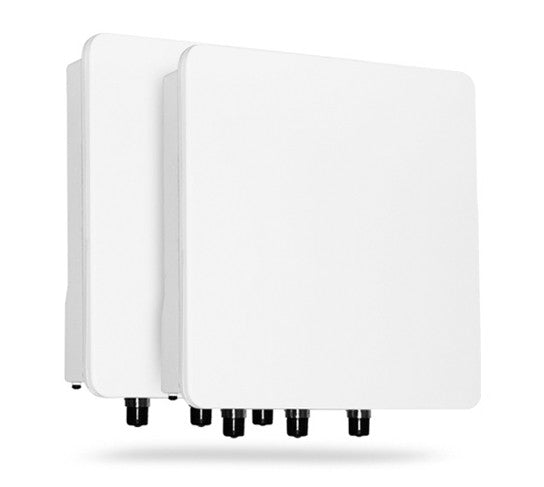

Tsunami QB-8200 Link, 300 Mbps, MIMO 3x3, Type-N Connectors (Two QB-8200-EPA-WD)

Tsunami QB-8200 Link, 300 Mbps, MIMO 3x3, Type-N Connectors (Two QB-8200-EPA-WD)

Point-to-point

High Capacity Backhauling for Dense Networks Leveraging the advantages of OFDM, MIMO radio innovations along with Proxim’s proprietary Wireless Outdoor Routing Protocol (WORP®), Tsunami® QB-8200 series is a feature rich equipment specifically designed for backhaul applications to wireless video surveillance...

  • Category: All Products, Proxim, Wireless Equipments

High Capacity Backhauling for Dense Networks

Leveraging the advantages of OFDM, MIMO radio innovations along with Proxim’s proprietary Wireless Outdoor Routing Protocol (WORP®), Tsunami® QB-8200 series is a feature rich equipment specifically designed for backhaul applications to wireless video surveillance and more.

Tsunami® QB-8200-LNK-G with WORP Sync

With the increase of wireless network using the 5 GHz band, finding interference free channel is becoming a challenge. To simplify channel planning task, Proxim wireless introduces Tsunami® QB-8200-LNK-G which adds multiple Link synchronization to the versatile and high performance Tsunami® QB- 8200 series. Tsunami® QB-8200-LNK-G when loaded with Proxim’s WORP Sync software , has the capability to synchronize its internal clock to the one pulse per second signal of an external GPS receiver or an Ethernet based synchronization timing devices. With the help of this feature multiple QB-8200-LNK-G start following the same transmit/receive pattern and avoid interfering with each other even when using adjacent channels. Additionally Tsunami® QB-8200-LNK-G has advanced channel management capability and cutting edge QoS class of service.

World-class Performance

  • Point-to-Point system that delivers 300 Mbps data rate at distances of over 5 miles (8 km)
  • Very low latency of 2 to 3 ms to support voice and video applications over long distances
  • Dual IPv4 and IPv6 stack for transparent evolution to tomorrow networks
  • Built-in feature rich network protocols for bridging, routing and gateway functionality

Non-Line-of-Sight and Advanced Features

  • Non-line-of-sight capable, utilizing OFDM and enhanced 3x3 MIMO techniques to improve link performance and better penetrate through obstructions
  • Features dual Gigabit Ethernet ports with PoE out to power other devices like surveillance cameras or additional radios
  • Compatibility with LACP switches for link aggregation
  • Spectrum analyzer to help study frequency bands for interference, and select a relatively low interference channel.

Optimal RF Management

  • Multiple Link synchronization based on PPS signal from GPS of Ethernet based Synchronization Module

Frequency Agnostic

  • Operates in licensed and unlicensed frequency bands from 4.900 to 5.925 GHz with support for 5, 10, 20 and 40 MHz flexible channel size

Enhanced Feature set

  • Choice of WORP® or WORP Sync protocol based on application requirements
  • Service flow based QoS with comprehensive packet identification to create unique and sophisticated service rules and tiered service classes with ease

Carrier-Grade Security

  • Implements tiered security layers for the most secure outdoor wireless communications in the unlicensed frequency spectrum
  • Utilizes Proxim’s Wireless Outdoor Routing Protocol (WORP®), which prevents snooping, and features highly-secure remote management via SSL, SSH and SNMPv3
  • Provides military-grade security with AES encryption technology, prevents unsecure client-to-client communications and leverages MAC, Ethertype and IP address packet filtering for granular network security

Cost Effective and Ease of Use for Quick Return on Investment

  • Suitable for the carriers, WISP and Government markets
  • Certified for deployments in the Americas, Europe and Asia
  • The equipment meets Russian requirements for the output power levels and allowed frequency channels
  • The most cost-effective, high performance point-to-point solution from Proxim, enabling any deployment to enjoy a quick return on investment

Product Line Compatibility

  • Connects to existing Tsunami® QB-8100
