Times Microwave LMR®-400 Flexible Coax Cable Black PE Jacket

Name: Times Microwave LMR®-400 Flexible Coax Cable Black PE Jacket
Brand: Times Microwave
Availability: InStock

Cables and Connectors

Times Microwave LMR-400 Flexible Coax Cable Black PE Jacket LMR-400 coax cable from Times Microwave is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Times Microwave...

Log-in to see price

SKU::
Category: Accessories, All Products, Installation Accessories

Times Microwave LMR-400 Flexible Coax Cable Black PE Jacket

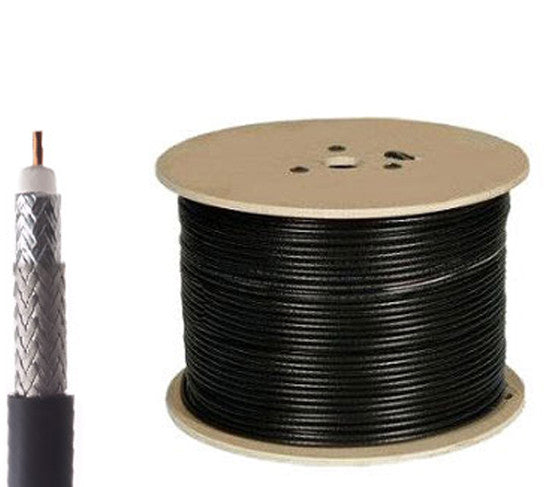

LMR-400 coax cable from Times Microwave is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Times Microwave LMR-400 coax cable is manufactured in a flexible design and has a 50 Ohm impedance. This flexible 50 Ohm coax cable LMR-400 is constructed with a 0.405 inch diameter and PE jacket.

LMR-400 flexible 50 Ohm coax cable with PE jacket is rated for a 5.8 GHz maximum operating frequency. This 50 Ohm 0.405 inch diameter and flexible coax cable is built with a shield count of 1 and RF shielding of 90 dB.

Times Microwave LMR-400 coax is constructed with PE (F) dielectric and a maximum operating temperature of 85 degrees C. Times Microwave LMR-400 coax cable specs for this wire properties can be found on its RF coax cable LMR-400 datasheet PDF specifications above.

LMR-400 cable is part of more than one million RF, microwave and millimeter wave parts in stock. This Times Microwave LMR-400 coax cable is ready to buy and can be shipped worldwide.

* LMR™ is a trademark of Times Microwave Systems.
