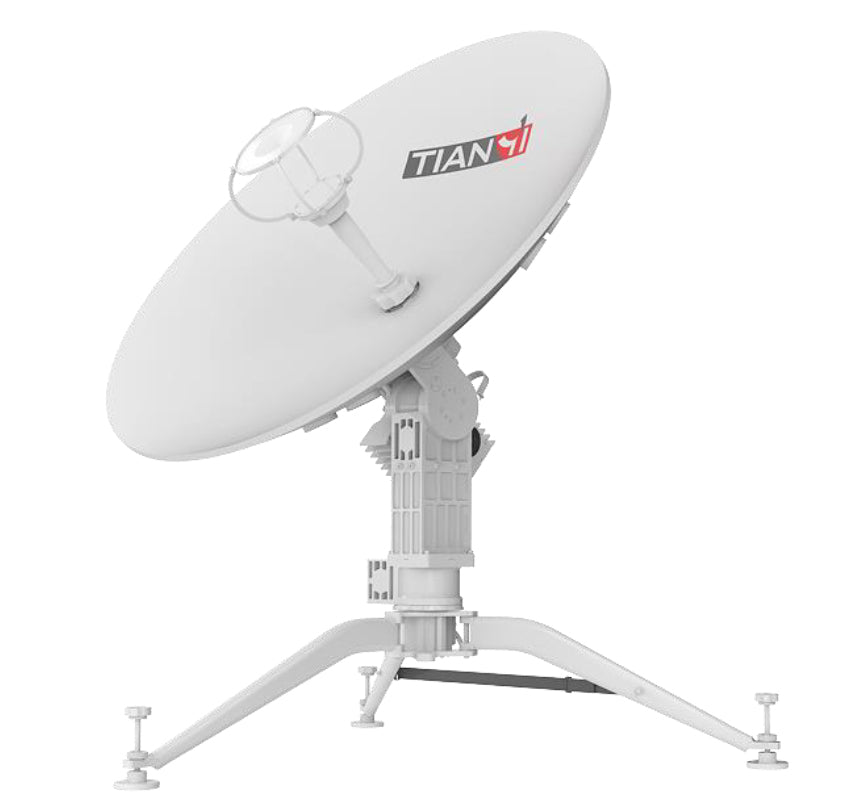

Tianyi Satcom 1.2M Manual Flyaway Antenna (MF1200Z-A)
1.2m Ku-Band Antenna
Highlight ➢ Ring focus antenna with 8 segments reflector ➢ Carbon fiber reflector with light weight, high strength and one person can finish the installation within 3 minutes. ➢ Easy acquisition without any training and tools; ➢ Fast and high-quality...
- SKU::
- Category: All Products, Antennas, Featured products, Ku-Band Tx/Rx Antennas, Quick Deploy/Flyaway Antennas
Highlight
- ➢ Ring focus antenna with 8 segments reflector
- ➢ Carbon fiber reflector with light weight, high strength and one person can finish the installation within 3 minutes.
- ➢ Easy acquisition without any training and tools;
- ➢ Fast and high-quality transmission at anytime and anywhere.
- ➢ Carbon fiber tripod support legs.
- ➢ Support Ku and Ka band as an option;
- ➢ Using at such industries as Broadcast & media, emergency & public safety, oil and gas etc.
System composition
1. Single offset reflector antenna, 6 segments.
2. AZ, EL pedestal, feed, feed support arm , support legs etc.
System features
1. Superior RF performance through optimization design of reflector and RF branch.
2. Utilization rate of carbon fiber is up to 80% ,the reflector has light weight, high strength, convenient and simple in disassembly and assembly and one person can finish the installation within 5 minutes.
3. Fast and high quality band width transmission with transmission band width not less than 10M anywhere and anytime.
4. High integration ,light weight ,case type.
5. No tool is needed in assembly & disassembly of the antenna and interchangeability is good.
Name |
1.2m KU manual flyaway antenna |
Antenna feed |
Offset |
|||
Type |
MF-1200-A |
Equivalent aperture |
1.2 m |
POL mode |
Linear |
|
Frequency |
Rx:12.25~12.75 GHz |
Gain |
Rx:≥41.5+20lg(f/12.50) dBi |
|||
Tx:14.00~14.50 GHz |
Tx:≥42.6+20lg(f/14.25) dBi |
|||||
Port isolation |
Rx-Tx :≥ 85 dB(LNB input ) |
VSWR |
Rx:≤ 1.3 |
|||
Tx-Rx:≥ 40 dB(BUC output ) |
Tx:≤ 1.3 |
|||||
Cross polarization isolation |
≥ 35 dB(axle ) |
1st side lobe |
≤ -14 dB |
|||
Motion range |
AZ |
± 45° |
Power capacity |
≤1000 W |
||
EL |
0° ~ 90° |
RF interface |
Rx:WR75 |
|||
POL |
± 90° |
Tx:WR75 |
||||
Operating temperature |
-40°C~+60 °C |
Operating wind velocity |
≤11 m/s(Ballasting ) |
|||
Storage temperature |
-50°C~+70 °C |
Survival wind velocity |
≤18 m/s(Ballasting ) |
|||
Humidity requirement |
No more than 95%(20 °C) |
Protection grade |
IP 65 |
|||
System weight |
≤17Kg(excluding BUC、LNB、packaging and accessories etc) |
