TerraSat IBUC G Ku-Band
TerraSat IBUC G Ku-Band
Couldn't load pickup availability

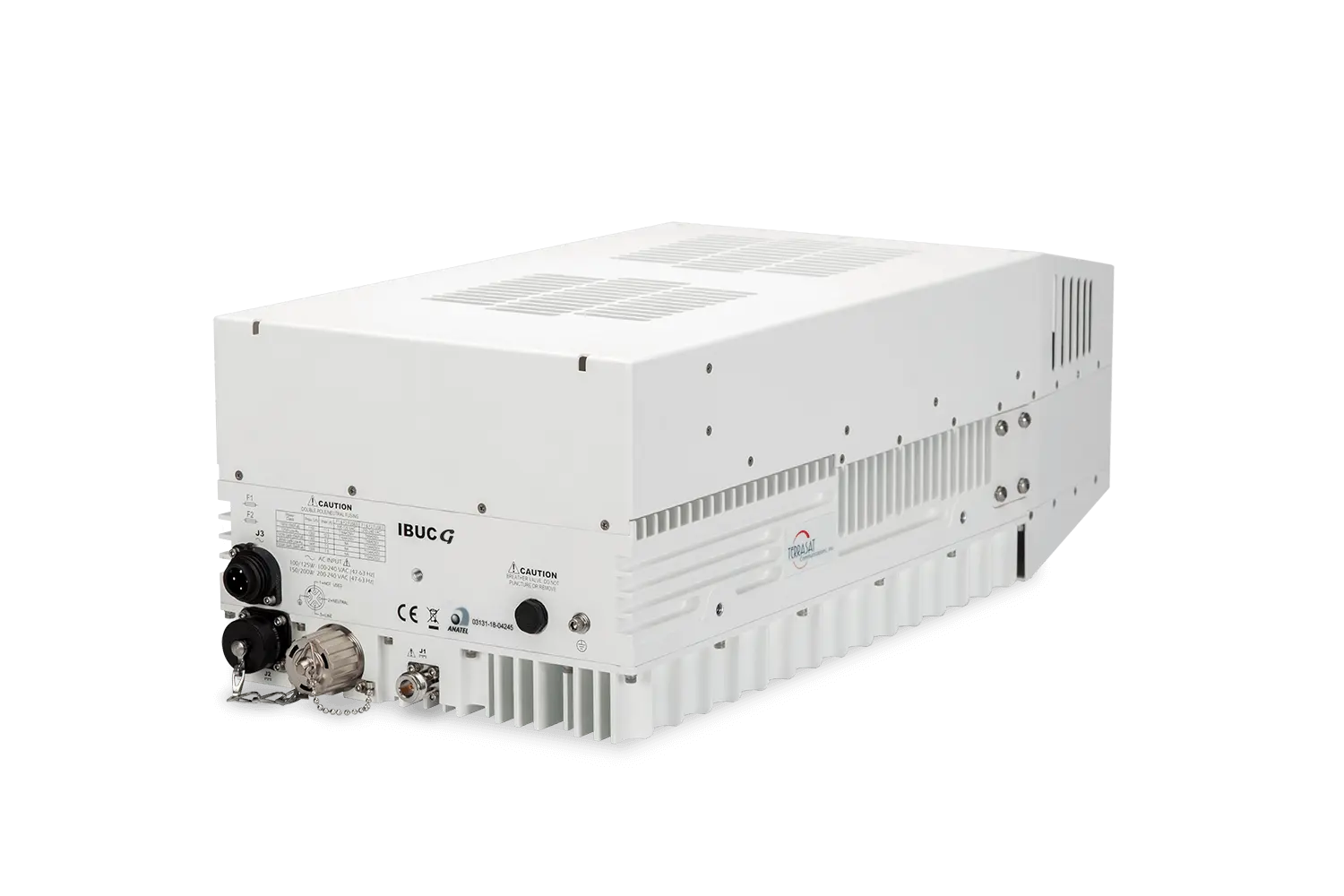

The TerraSat IBUC G Ku-Band is a high-power Gallium Nitride (GaN) Intelligent Block Upconverter designed for professional multicarrier satellite communication systems. Available in 150W and 200W models, the IBUC G combines exceptional RF performance, advanced monitor and control capabilities, and GaN amplifier efficiency in a compact outdoor package. Designed for teleports, broadcast facilities, maritime communications, defense networks, and high-capacity VSAT hubs, it delivers outstanding linear output power with superior reliability and low power consumption.
Equipped with a built-in Web Interface, SNMP management, AGC/ALC functionality, optional Cyber Hardened security, and multiple Ku-Band frequency configurations, the IBUC G provides operators with a powerful, intelligent, and easy-to-manage RF uplink solution.
Key Features
- High-efficiency GaN RF amplifier technology
- Available in 150W and 200W output power models
- Optimized for multicarrier applications
- Embedded Web Interface, HTTP, Telnet & SNMP
- User-selectable AGC / ALC
- Optional Cyber Hardened management platform
- Optional high-stability 10 MHz internal reference
- Supports Standard, Full, and Low Ku-Band
- Weatherized outdoor enclosure
- 3-Year Manufacturer Warranty
Technical Specifications
|
Specification |
150W Model |
200W Model |
|---|---|---|
|
RF Frequency |
14.00–14.50 GHz (Std), 13.75–14.50 GHz (Full), 12.75–13.25 GHz (Low) |
Same |
|
IF Frequency |
950–1450 MHz / 950–1700 MHz |
Same |
|
Output Power (PSAT) |
+51.8 dBm (150W) |
+53.0 dBm (200W) |
|
Linear Output Power (PLin) |
75W (48.8 dBm) |
100W (50.0 dBm) |
|
Small Signal Gain |
83 dB (Standard) / 72 dB (WGS) |
83 dB (Standard) / 73 dB (WGS) |
|
Input Connector |
Type-N Female (Optional Type-F or TNC) |
Same |
|
RF Output |
WR75 Grooved Waveguide |
Same |
|
Power Supply |
200–240 VAC, 50/60 Hz |
Same |
|
Power Consumption |
1150 VA |
1350 VA |
|
Operating Temperature |
-40°C to +55°C |
Same |
General Specifications
|
Feature |
Details |
|---|---|
|
Amplifier Technology |
Gallium Nitride (GaN) |
|
Variable Attenuator |
30 dB (0.1 dB Steps) |
|
AGC / ALC |
User Selectable |
|
External Reference |
10 MHz (-12 to +5 dBm) |
|
Internal Reference |
Optional Auto-Detect |
|
Management |
HTTP, Telnet, SNMPv2c, RS232/485 |
|
Cyber Security Option |
HTTPS, SSHv2, SNMPv3, FIPS 140-2 Compatible |
|
Relative Humidity |
100% Condensing |
|
Weight |
37 lbs (17 kg) |
|
Dimensions |
23 × 10 × 7.4 in (584 × 254 × 188 mm) |
|
Warranty |
3 Years |
Applications
The TerraSat IBUC G Ku-Band is ideal for:
- Teleport Uplink Systems
- High-Capacity VSAT Networks
- Broadcast & Media Distribution
- Maritime Satellite Communications
- Enterprise SATCOM Infrastructure
- WGS (Wideband Global SATCOM) Deployments
- Mission-Critical Multicarrier Applications
Why Buy from VSATplus?
VSATplus supplies genuine TerraSat Intelligent Block Upconverters with expert technical consultation, competitive pricing, and worldwide shipping. Whether you’re expanding a teleport, upgrading a VSAT hub, or deploying a high-power satellite uplink, the TerraSat IBUC G Ku-Band 150W & 200W delivers industry-leading RF performance, intelligent management, and long-term reliability.
Contact VSATplus today for product availability, technical assistance, and customized SATCOM solutions for your next project.
TerraSat IBUC G Ku-Band Datasheet
