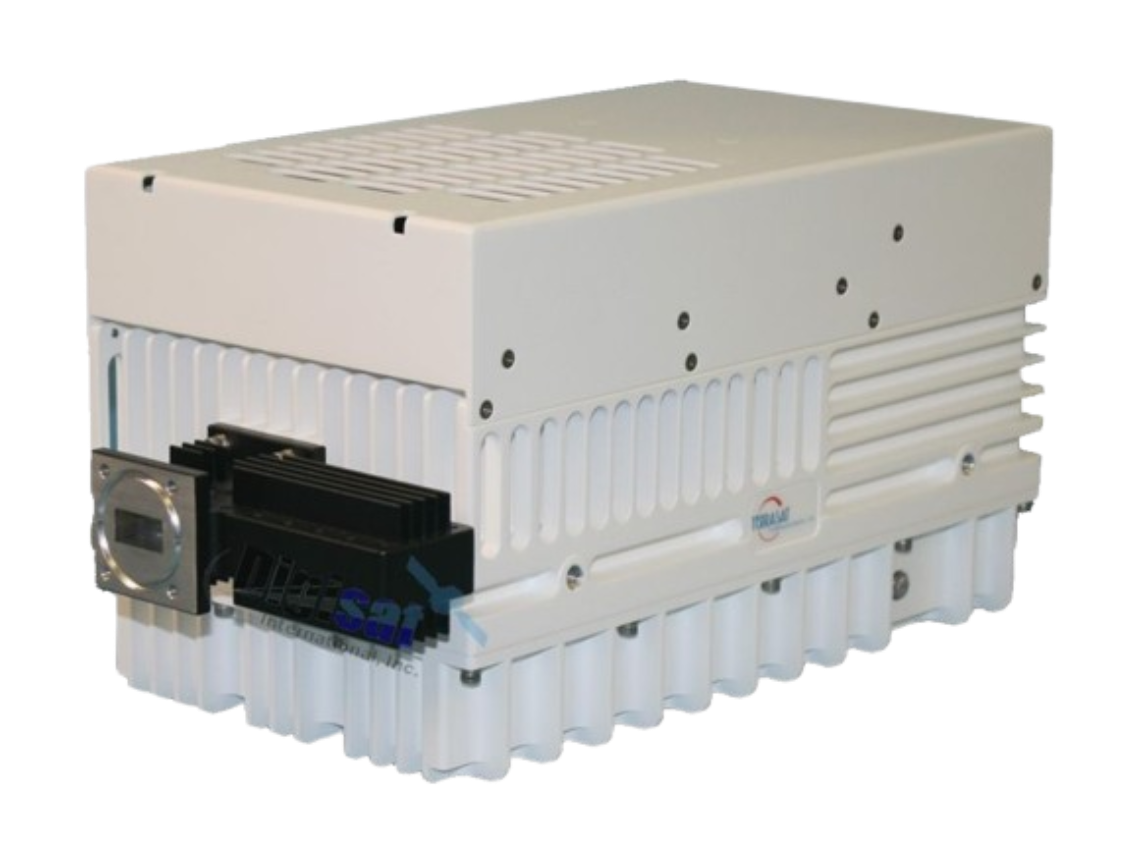

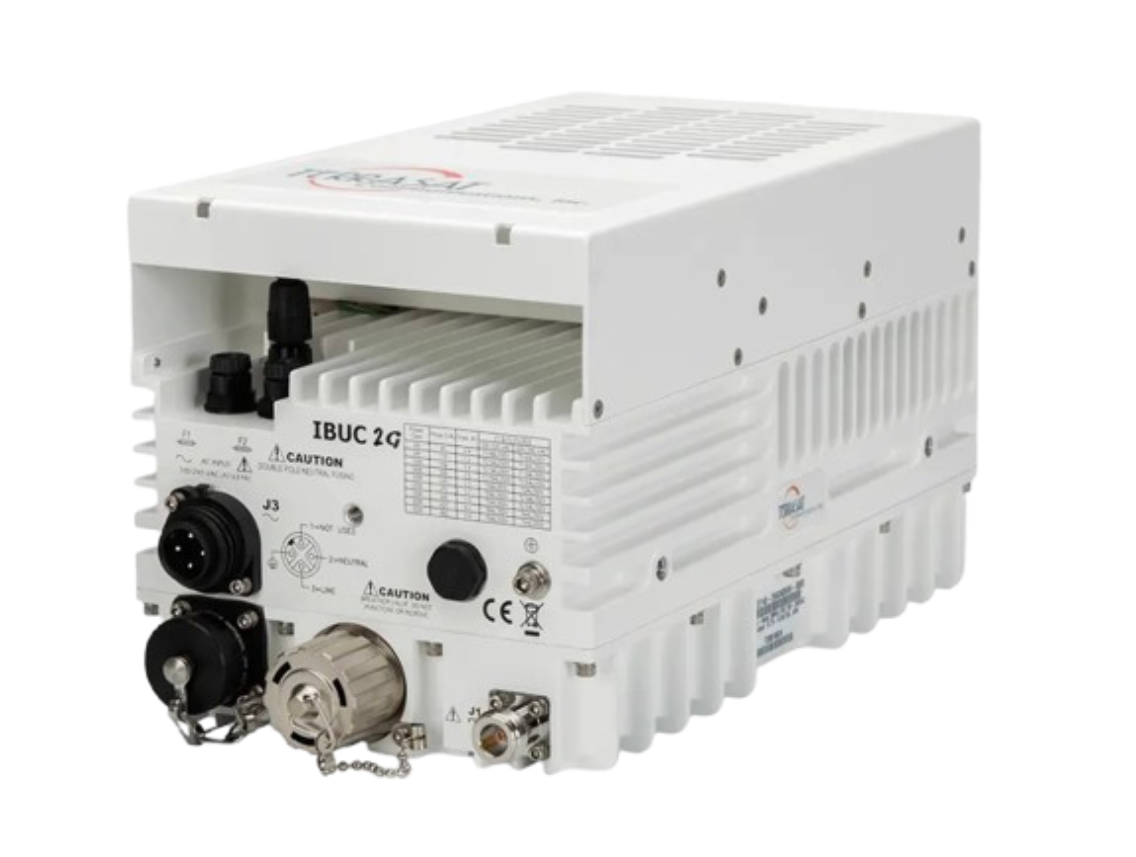

TerraSat IBUC 2G Ka-Band
TerraSat IBUC 2G Ka-Band
Couldn't load pickup availability
The TerraSat IBUC 2G Ka-Band Series is a high-performance Intelligent Block Upconverter (BUC) designed for Ka-band satellite communication systems requiring superior RF performance, reliability, and compact form factors. Integrating a high-efficiency GaN Solid-State Power Amplifier (SSPA) with TerraSat’s intelligent monitor and control platform, the IBUC 2G delivers exceptional linearity, low power consumption, and outstanding multicarrier performance for enterprise, government, defense, mobility, broadcast, and teleport applications. Available in output power levels from 5W to 50W, the series supports multiple Ka-band frequency plans and is optimized for both fixed and mobile satellite terminals. Its rugged weatherproof enclosure, advanced remote management capabilities, and optional Cyber Hardened security features make it an ideal solution for mission-critical satellite communication networks.
Key Features
- Available in 5W, 10W, 16W, 20W, 25W, 40W and 50W models
- High-efficiency GaN amplifier technology
- Optimized for multicarrier Ka-Band applications
- Compact outdoor weatherproof enclosure
- Superior RF linearity and low phase noise
- Embedded Web Interface with HTTP, Telnet and SNMP
- Performance trend analysis and statistical logging
- More than 70 configurable alarms and thresholds
- Ethernet, RS-232/485 and FSK monitor & control
- Optional Cyber Hardened security platform
- Optional internal 10 MHz reference with auto-detection
- Available in AC or DC powered versions
- Backed by a 3-Year Manufacturer Warranty
Product Specifications
|
Model |
RF Frequency |
Output Power |
Small Signal Gain |
Power Supply |
Dimensions (L × W × H) |
Weight |
|---|---|---|---|---|---|---|
|
IBUC 2G Ka-Band 5W |
29.0–30.0 / 29.5–30.0 / 30.0–31.0 GHz |
5W (+37 dBm) |
68 dB |
AC or DC |
10.5 × 6 × 3.8 in (DC)10.5 × 6 × 4.2 in (AC) |
9.5 lbs (DC)10.5 lbs (AC) |
|
IBUC 2G Ka-Band 10W |
Same Frequency Options |
10W (+40 dBm) |
71 dB |
AC or DC |
10.5 × 6 × 3.8 in (DC)10.5 × 6 × 4.2 in (AC) |
9.5 lbs (DC)10.5 lbs (AC) |
|
IBUC 2G Ka-Band 16W |
Same Frequency Options |
16W (+42 dBm) |
73 dB |
AC or DC |
10.5 × 6 × 5.7 in (DC)10.5 × 6 × 6.1 in (AC) |
11.5 lbs (DC)12.8 lbs (AC) |
|
IBUC 2G Ka-Band 20W |
Same Frequency Options |
20W (+43 dBm) |
74 dB |
AC or DC |
10.5 × 6 × 5.7 in (DC)10.5 × 6 × 6.1 in (AC) |
11.5 lbs (DC)12.8 lbs (AC) |
|
IBUC 2G Ka-Band 25W |
Same Frequency Options |
25W (+44 dBm) |
75 dB |
AC or DC |
10.5 × 6 × 5.7 in (DC)10.5 × 6 × 6.1 in (AC) |
11.5 lbs (DC)12.8 lbs (AC) |
|
IBUC 2G Ka-Band 40W |
Same Frequency Options |
40W (+46 dBm) |
77 dB |
AC or DC |
10.5 × 6 × 5.7 in (DC)10.5 × 6 × 6.1 in (AC) |
11.5 lbs (DC)12.8 lbs (AC) |
|
IBUC 2G Ka-Band 50W |
Same Frequency Options |
50W (+47 dBm) |
78 dB |
AC or DC |
10.5 × 6 × 5.7 in (DC)10.5 × 6 × 6.1 in (AC) |
11.5 lbs (DC)12.8 lbs (AC) |
General Specifications
|
Specification |
Details |
|---|---|
|
RF Frequency Options |
29.0–30.0 GHz, 29.5–30.0 GHz, 30.0–31.0 GHz |
|
IF Frequency |
1.0–2.0 GHz or 950–1950 MHz (Model Dependent) |
|
Technology |
GaN Solid-State Power Amplifier (SSPA) |
|
Input Connector |
Type-N Female (50 Ω) |
|
Optional Input Connectors |
Type-F (75 Ω), TNC (50 Ω) |
|
RF Output Interface |
WR28 UG Cover with Groove |
|
Small Signal Gain |
68–78 dB (Standard Version) |
|
Attenuator |
30 dB Variable in 0.1 dB Steps |
|
AGC |
User Selectable |
|
ALC |
User Selectable |
|
Output VSWR |
1.3:1 Maximum |
|
Output Noise Density |
Tx < -74 dBm/Hz |
|
Monitor & Control |
HTTP, Telnet, SNMPv2c, RS232/485, FSK |
|
Cyber Security Option |
HTTPS, SSHv2, SNMPv3, FIPS 140-2 Compatible |
|
Operating Temperature |
-40°C to +60°C (5W–10W)-40°C to +55°C (16W–50W) |
|
Humidity |
100% Condensing |
|
Maximum Altitude |
10,000 ft (3,000 m) |
|
Warranty |
3 Years |
Typical Applications
- High Throughput Satellite (HTS) Networks
- Enterprise VSAT Systems
- Mobile & Transportable Satellite Terminals
- Teleport Infrastructure
- Broadcast Contribution Networks
- Maritime Connectivity
- Cellular Backhaul
- Emergency Response Communications
- Remote Broadband Services
Available from VSATplus, the TerraSat IBUC 2G Ka-Band Series delivers outstanding RF performance, intelligent remote management, and long-term reliability for professional satellite communication deployments. Contact VSATplus today for expert consultation, competitive pricing, and worldwide delivery.
