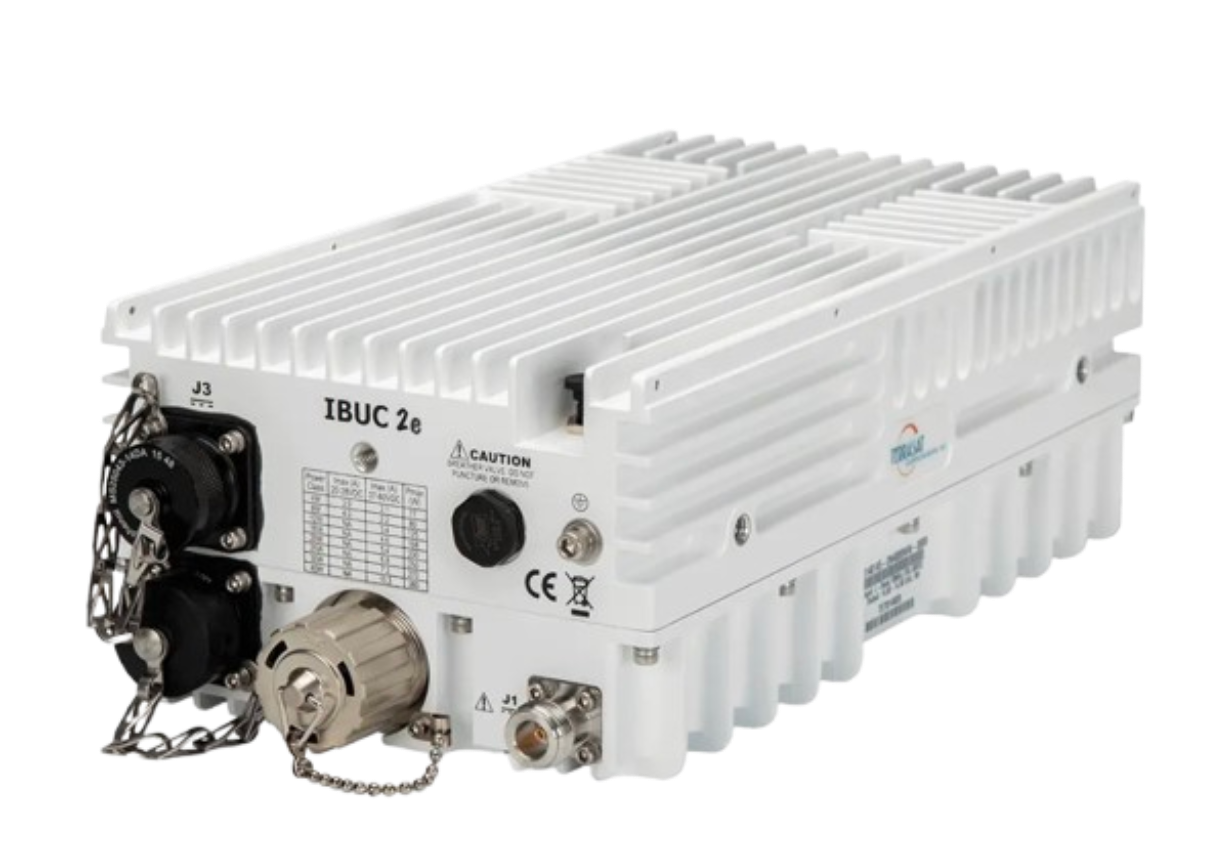

TerraSat IBUC 2e Ku-Band
TerraSat IBUC 2e Ku-Band
Couldn't load pickup availability
The TerraSat IBUC 2e Ku-Band is a low-power, high-performance Intelligent Block Upconverter (BUC) designed for professional satellite communication systems. Available in 8W and 16W output power models, the IBUC 2e is powered directly through the IFL coaxial cable, eliminating the need for an external power connector and simplifying installation. Built with TerraSat’s intelligent management platform, it delivers exceptional RF performance, advanced monitoring, and reliable operation for VSAT, enterprise, government, and mobility applications.
The IBUC 2e features a built-in web interface, SNMP support, user-selectable AGC/ALC, optional Cyber Hardened security, and automatic 10 MHz reference detection. With support for Standard Ku-Band, Full Ku-Band, and Low Ku-Band frequency plans, it offers outstanding flexibility for modern satellite networks.
Key Features
- Available in 8W and 16W output power models
- Powered directly through the coaxial IFL cable
- Supports Standard, Full, and Low Ku-Band
- Embedded Web Interface, HTTP, Telnet & SNMP
- Optional Cyber Hardened security version
- User-selectable AGC / ALC
- Optional high-stability 10 MHz internal reference
- Weatherized RJ45 Ethernet interface
- Compact outdoor design with 3-Year Warranty
Technical Specifications
|
Specification |
8W Model |
16W Model |
|---|---|---|
|
RF Frequency |
14.00–14.50 GHz (Std) / 13.75–14.50 GHz (Full) / 12.75–13.25 GHz (Low) |
Same |
|
IF Frequency |
950–1450 MHz / 950–1700 MHz |
Same |
|
Output Power (P1dB) |
+39 dBm |
+42 dBm |
|
Small Signal Gain |
70 dB |
73 dB |
|
Input Voltage |
18–75 VDC |
37–60 VDC |
|
Power Consumption |
65 W |
120 W |
|
RF Output |
WR75 Waveguide |
WR75 Waveguide |
|
Operating Temperature |
-40°C to +60°C |
-40°C to +60°C |
General Specifications
|
Feature |
Details |
|---|---|
|
IF Input Connector |
N-Type (50Ω) or Optional F-Type (75Ω) |
|
Variable Attenuator |
30 dB (0.1 dB Steps) |
|
AGC / ALC |
User Selectable |
|
External Reference |
10 MHz (-12 to +5 dBm) |
|
Management |
HTTP, Telnet, SNMPv2c, RS232/485 |
|
Optional Security |
Cyber Hardened (HTTPS, SSHv2, SNMPv3) |
|
Operating Humidity |
100% Condensing |
|
Warranty |
3 Years |
Applications
The TerraSat IBUC 2e Ku-Band is ideal for:
- Enterprise VSAT Networks
- Government & Defense Communications
- Broadcast Uplink Systems
- Mobility & Transportable Terminals
- Maritime SATCOM
- Emergency Response Networks
- Remote Broadband Connectivity
Why Buy from VSATplus?
At VSATplus, we supply genuine TerraSat Intelligent Block Upconverters backed by expert technical support, competitive pricing, and worldwide shipping. Whether you’re deploying a new VSAT network or upgrading an existing satellite communication system, the TerraSat IBUC 2e Ku-Band provides reliable RF performance, intelligent monitoring, and simplified installation through power-over-coax technology.
Contact VSATplus today for product availability, technical consultation, and the best TerraSat solution for your SATCOM project.
Contact us: Sales@vsatplus.com
TerraSat IBUC 2e Ku-Band Datasheet
