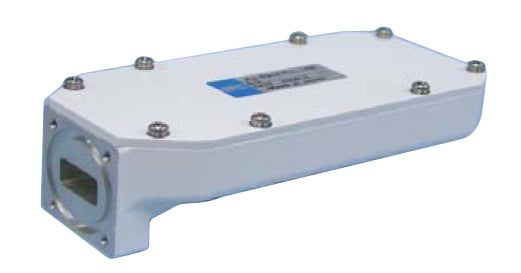

SPC Japan SPCR5400BN Ext. Ref. Ku-Band PLL LNB

SPC Japan SPCR5400BN Ext. Ref. Ku-Band PLL LNB

Ku-Band PLL LNBs

FEATURES■ 1dB Gain Compression +10dBm■ High Stability, Low Noise Converter ■ Reliability by design■ High Quality by design■ Low cost by design■ Small, Light weight, Easy to installSPC Electronics Corp, a global leader in the design,manufature,supply of LNB of VSAT...

  • Category: All Products, Ku-Band LNBs, Low Noise Block LNB, SPC Japan, YEAR END SALE 2018!

FEATURES

■ 1dB Gain Compression +10dBm
■ High Stability, Low Noise Converter
■ Reliability by design
■ High Quality by design
■ Low cost by design
■ Small, Light weight, Easy to install

SPC Electronics Corp, a global leader in the design,manufature,supply of LNB of VSAT has a wealth of experience in providing significant supplies to fulfill the needs of the wireless market.

SPC Japan SPC5300BN

Item

Specification

RF Input Frequency

11.70 to 12.20 GHz12.25 to 12.75 GHz

10.95 to 11.70 GHz

IF Output Frequency

950 to 1450 MHz950 to 1700 MHz

Local Frequency

10.75 GHz11.30 GHz

10.00 GHz

Local Frequency Stability

Phase locked to external reference

Requirement for External Reference

* Supplied through center conductor of IF cable[Frequency] 10MHz(sine wave)

[Input Level] 0 to -10dBm @ IF

out

[Phase Noise] -134dBc/Hz max. @ 100 Hz

-144dBc/Hz max. @ 1 KHz

-154dBc/Hz max. @ 10 KHz

-154dBc/Hz max. @ 100 KHz

Local Oscillator SSB Phase Noise:

Offset Frequency / Phase Noise100 Hz / -60 dBc/Hz

1 KHz / -70 dBc/Hz

10 KHz / -80 dBc/Hz

100 KHz / -95 dBc/Hz

Noise Figure

0.8dB max. @ +25°C

Gain

55 to 70 dB over Frequency & Temperature

Gain Ripple

1 dB p-p max per 36MHZ segment across the frequency band

Input VSWR

2.5: 1 typical

Output VSWR

2.3: 1 max

Output 1 dB Gain Compression Point

+10 dBm min.

Image Rejection

-45dBc max

Spurious in Rx Band

-140dBm max. @ waveguide input excluding Rx out + 1 MHz measured at RF Input power -85dBm

Input Voltage

+12 to +24 V supplied through center conductor of the IF cable

Current

350 mA max

Input Interface

WR-75,Waterproof – Mated with matching flange and O-ring

Output Interface

Standard: F-Type, 75 ?, female, WaterproofOption: N-Type, 50 ?, female, Waterproof

Size

125(L) mm x 60(W) mm x 22(H) mm

Weight

340g (F-Conn) / 348g (N-Conn)

Operating Temperature

-40°C to +60°C

Storage Temperature

-40°C to +80°C

Relative Humidity

Up to 100%, condensation and frost

Altitude

Up to 10,000 feet at operating
