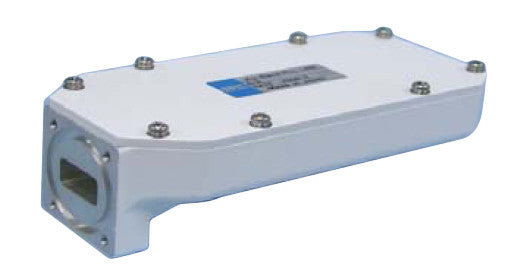

SPC Japan SPCR5400 Series Ku-Band Ext. Ref. PLL LNB

Features:

  • 1dB Gain Compression +10dBm
  • Suitable for high data rate digital communication applications
  • Low power consumption
  • Low noise
No Item Specification
-1 RF Input Frequency 11.70 to 12.20 GHz12.25 to 12.75 GHz



10.95 to 11.70 GHz

-2 IF Output Frequency 950 to 1450 MHz950 to 1700 MHz
-3 Local Frequency 10.75 GHz11.30 GHz



10.00 GHz

-4 Local Frequency Stability Phase locked to external reference
-5 Requirement for External Reference * Supplied through center conductor of IF cable[Frequency] 10MHz(sine wave)



[Input Level] 0 to -10dBm @ IF

out

[Phase Noise] -134dBc/Hz max. @ 100 Hz

-144dBc/Hz max. @ 1 KHz

-154dBc/Hz max. @ 10 KHz

-154dBc/Hz max. @ 100 KHz

-6 Local Oscillator SSB Phase Noise: Offset Frequency / Phase Noise100 Hz / -60 dBc/Hz



1 KHz / -70 dBc/Hz

10 KHz / -80 dBc/Hz

100 KHz / -95 dBc/Hz

-7 Noise Figure 0.8dB max. @ +25°C
-8 Gain 55 to 70 dB over Frequency & Temperature
-9 Gain Ripple 1 dB p-p max per 36MHZ segment across the frequency band
-10 Input VSWR 2.5: 1 typical
-11 Output VSWR 2.3: 1 max
-12 Output 1 dB Gain Compression Point +10 dBm min.
-13 Image Rejection -45dBc max
-14 Spurious in Rx Band -140dBm max. @ waveguide input excluding Rx out + 1 MHz measured at RF Input power -85dBm
-15 Input Voltage +12 to +24 V supplied through center conductor of the IF cable
-16 Current 350 mA max
-17 Input Interface WR-75,Waterproof – Mated with matching flange and O-ring
-18 Output Interface Standard: F-Type, 75 ?, female, WaterproofOption: N-Type, 50 ?, female, Waterproof
-19 Size 125(L) mm x 60(W) mm x 22(H) mm
-20 Weight 340g (F-Conn) / 348g (N-Conn)
-21 Operating Temperature -40°C to +60°C
-22 Storage Temperature -40°C to +80°C
-23 Relative Humidity Up to 100%, condensation and frost
-24 Altitude Up to 10,000 feet at operating
