SPC Japan SPC5300B Ku-Band PLL LNB

SPC Japan SPC5300B Ku-Band PLL LNB

Ku-Band PLL LNBs

FEATURES ■ Ku-Band PLL LNB■ High Stability, Low Noise Converter ■ Reliability by design■ High Quality by design■ Low cost by design■ Small, Light weight, Easy to installSPC Electronics Corp, a global leader in the design,manufature,supply of LNB of VSAT has...

  • Category: All Products, Ku-Band LNBs, Low Noise Block LNB, SPC Japan, YEAR END SALE 2018!

FEATURES

■ Ku-Band PLL LNB
■ High Stability, Low Noise Converter
■ Reliability by design
■ High Quality by design
■ Low cost by design
■ Small, Light weight, Easy to install

SPC Electronics Corp, a global leader in the design,manufature,supply of LNB of VSAT has a wealth of experience in providing significant supplies to fulfill the needs of the wireless market.

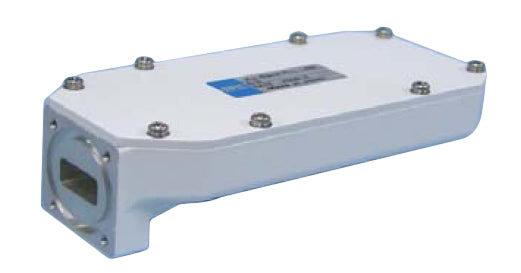

SPC Japan SPC5300BN

■ TECHNICAL SPECIFICATIONS
Parameter Specification
RF Input Frequency 10.95 to 11.70GHz 11.70 to 12.20GHz 12.25 to 12.75GHz
IF Output Frequency 950 to 1700MHz 950 to 1450MHz
Local Frequency 10.00GHz nominal 10.75GHz nominal 11.30GHz nominal
Local Frequency Initial Offset ±1ppm max. (Measured at 1 minute after DC power On)
Local Frequency Stability ±2.5ppm max. @-40℃ to +60℃ / ±1.0ppm max.@-40℃ to +60℃
Phase Noise 100Hz offset -70dBc/Hz
1KHz offset -80dBc/Hz
Noise Figure 0.8dB max. @+25℃
Gain (Over Freq. And Temp.) 55dB to 70dB @Over Freq.& Temp.
1dB Gain Compression Point +10dBm min.
Gain Ripple 1dBp-p/36MHz over the frequency band @+25℃
Input VSWR 2.5:1 nominal (w/o isolator)
Output VSWR 2.3:1 normal @75Ω
DC Supply Voltage +12V to +20V
Current 250mA max.
Output Connector F-type 75Ω, female, Waterproof / N-type 50Ω, female, Waterproof
Weight 350g
Size 125 x 60 x 22 mm
