FEATURES

■ High Stability, Low Noise Converter
■ Reliability by design
■ High Quality by design
■ Low cost by design
■ Small, Light weight, Easy to install

SPC Electronics Corp, a global leader in the design,manufature,supply of LNB of VSAT has a wealth of experience in providing significant supplies to fulfill the needs of the wireless market.

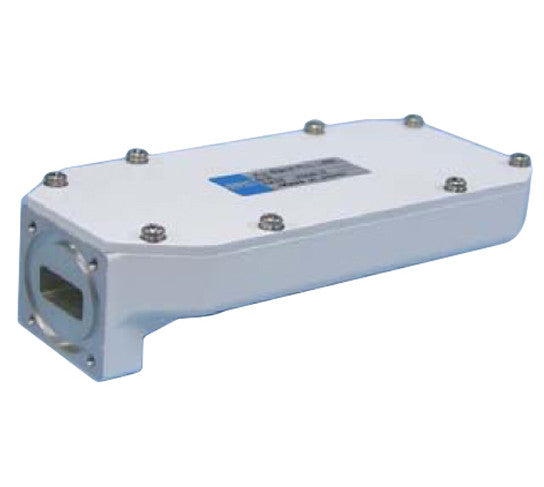

Ku-Band PLL LNB
TECHNICAL SPECIFICATIONS
Parameter Specification
RF Input Frequency 12.25 to 12.75GHz
IF Output Frequency 950 to 1450MHz
Local Frequency 11.30GHz nominal
Local Frequency Initial Offset ±1ppm max. (Measured at 1 minute after DC power On)
Local Frequency Stability ±2.5ppm max. @-40℃ to +60℃ / ±1.0ppm max.@-40℃ to +60℃
Phase Noise 100Hz offset   -70dBc/Hz
1KHz offset   -80dBc/Hz
Noise Figure 0.8dB max. @+25℃
Gain (Over Freq. And Temp.) 55dB to 70dB @Over Freq.& Temp.
1dB Gain Compression Point +10dBm min.
Gain Ripple 1dBp-p/36MHz over the frequency band @+25℃
Input VSWR 2.5:1 nominal (w/o isolator)
Output VSWR 2.3:1 normal @75Ω
DC Supply Voltage +12V to +20V
Current 250mA max.
Output Connector F-type 75Ω, female, Waterproof / N-type 50Ω, female, Waterproof
Weight 350g
Size 125 x 60 x 22 mm
