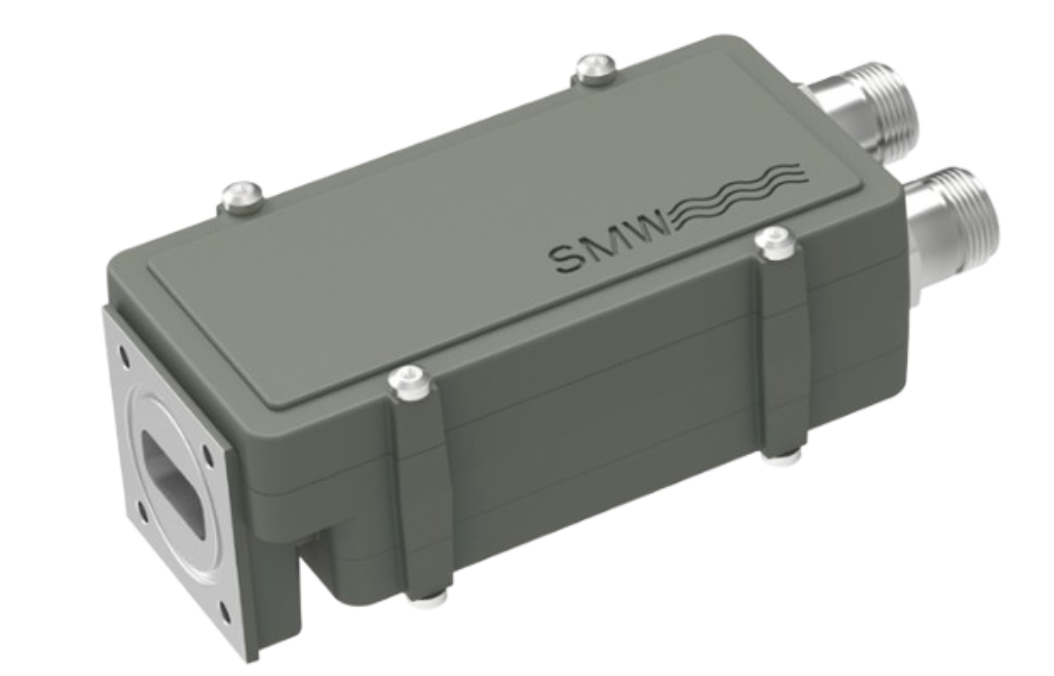

The SMW Ku LNB 10.70–12.75 GHz WDL ULP Dual & Quattro from Swedish Microwave AB is a professional Ku-band LNB designed for satellite reception systems requiring simultaneous Low- and High-band reception, ultra-low phase noise, and high linearity. It supports the full 10.70–12.75 GHz Ku-band in Model E, while Model B covers 10.95–12.75 GHz. The product is available as a Dual LNB or Quattro LNB for Horizontal and Vertical polarization configurations.
With Ultra Low Phase Noise (ULP) as standard, the LNB is designed to meet demanding reception requirements for DVB-S2X professional profiles, N3, and N4 signals, including high-order modulation and applications where pilots are disabled.
Key Features
- Full Ku-band coverage: 10.70–12.75 GHz
- Simultaneous Low & High band reception
- Ultra Low Phase Noise (ULP) as standard
- Dual Low/High-band outputs
- Available as Dual or Quattro LNB
- Supports Horizontal and Vertical polarization
- High P1dB and IP3 for strong-signal performance
- Models with external 10 MHz reference or internal ±1 ppm reference
- Wide operating temperature range: -40°C to +80°C
- 60 dB typical gain
- 0.8 dB typical noise figure
- Designed for demanding DVB-S2/DVB-S2X and NS3/NS4 applications
Dual & Quattro Configurations

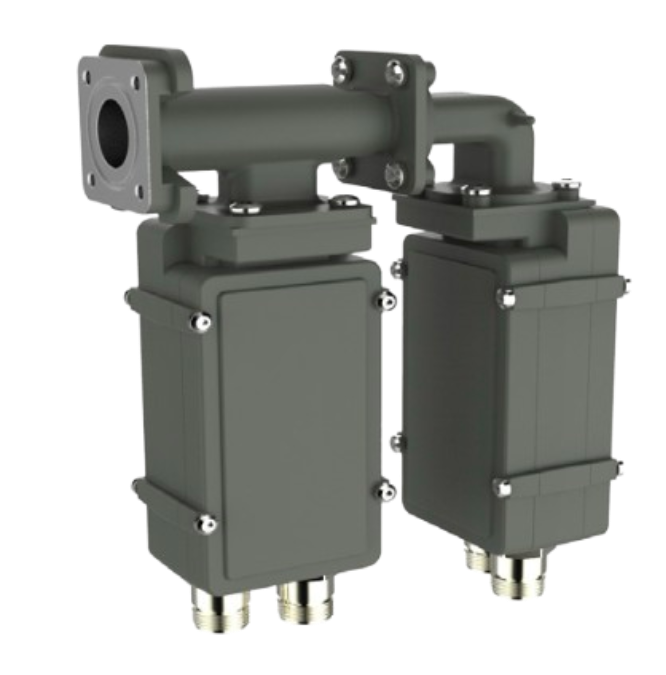

The SMW WDL ULP platform offers flexibility for different satellite architectures. The Dual LNB provides separate Low-band and High-band RF outputs, while the Quattro version is available for systems requiring both Horizontal and Vertical polarization and can be supplied with an OMT and weather protection case.

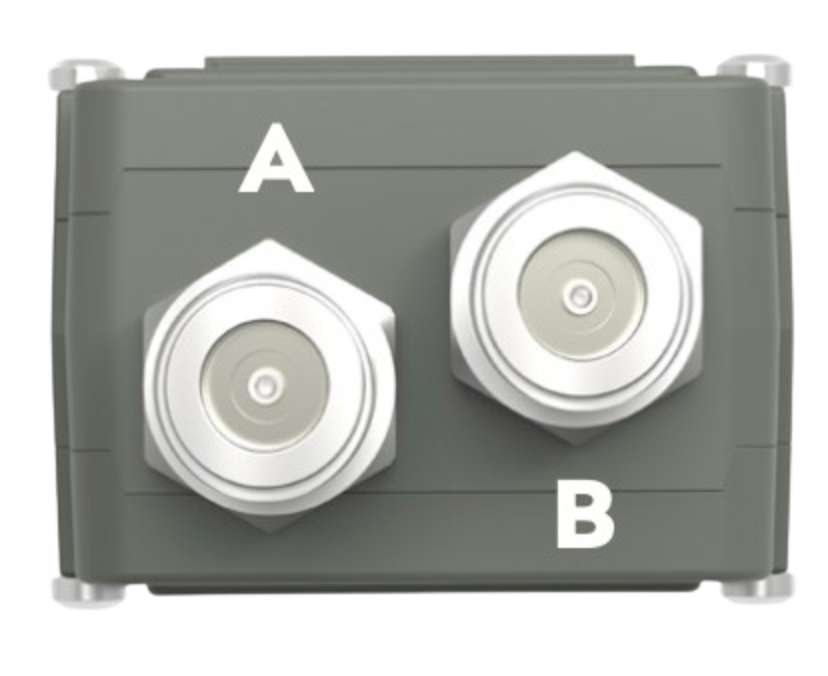

The LNB rear connectors can be configured with F female 75Ω, N female 50Ω, or SMA female 50Ω interfaces. Connector functions include Low-band RF output and High-band RF output, with DC and 10 MHz reference input depending on the configuration.
Technical Specifications
|
Specification |
Model E |
Model B |
|---|---|---|
|
Input Frequency |
10.70–12.75 GHz |
10.95–12.75 GHz |
|
LO |
9.75 & 10.60 GHz |
10.00 & 10.75 GHz |
|
Low/High Band |
10.70–11.70 / 11.70–12.75 GHz |
10.95–11.70 / 11.70–12.75 GHz |
|
Input Waveguide |
WR75 / R120 |
WR75 / R120 |
|
Input Flange |
PBR120 with M4 thread |
PBR120 with M4 thread |
|
Input VSWR |
2.3:1 max. |
2.3:1 max. |
|
Input Max Power |
0 dBm instantaneous |
0 dBm instantaneous |
|
DC Input |
+15 to +24 V |
+15 to +24 V |
|
Power Consumption |
5 W typ. |
5 W typ. |
|
Gain |
60 dB typ., 55 dB min. |
60 dB typ., 55 dB min. |
|
Gain Variation / 24h |
±0.1 dB @ 23°C |
±0.1 dB @ 23°C |
|
Gain Flatness |
±0.25 dB within 30 MHz; ±2 dB over band |
±0.25 dB within 30 MHz; ±2 dB over band |
|
Internal LO Reference |
±1 ppm, -40 to +80°C |
±1 ppm, -40 to +80°C |
|
External 10 MHz Reference |
-10 to +10 dBm |
-10 to +10 dBm |
|
Out-of-Band Rejection |
20 dB min. |
20 dB min. |
|
LO Leakage |
-60 dBm max. @ waveguide input; -40 dBm max. @ IF output |
Same |
|
Group Delay |
±1 ns max. |
±1 ns max. |
|
Image Rejection |
40 dB typ. |
40 dB typ. |
|
Phase Noise |
-35 dBc @ 10 Hz to -120 dBc @ >1 MHz typ. |
Same |
|
Noise Figure |
0.8 dB / 59 K typ. @ 23°C |
0.8 dB / 59 K typ. @ 23°C |
|
Low-Band IF |
950–1950 MHz |
950–1700 MHz |
|
High-Band IF |
1100–2150 MHz |
950–2000 MHz |
|
Output P1dB |
+12 dBm min. |
+12 dBm min. |
|
Output IP3 |
+22 dBm min. |
+22 dBm min. |
|
Output VSWR |
1.7:1 typ. |
1.7:1 typ. |
|
Output Connectors |
F 75Ω / N 50Ω / SMA 50Ω |
F 75Ω / N 50Ω / SMA 50Ω |
|
Temperature |
-40°C to +80°C |
-40°C to +80°C |
|
Dimensions |
122 × 57 × 46 mm (F/SMA) |
122 × 57 × 46 mm (F/SMA) |
|
Weight |
335 g (F/SMA); 371 g (N) |
335 g (F/SMA); 371 g (N) |
Technical specifications are based on the manufacturer’s datasheet.
Ultra Low Phase Noise for Advanced Modulation
The ULP architecture is particularly suited to demanding satellite modulation schemes. The manufacturer recommends Ultra Low Phase Noise for DVB-S2 narrowband 8PSK 8/9 and 9/10 FEC, 16APSK and higher modulation, applications with Pilot Off, as well as all DVB-S2X and NS3/NS4 MODCODs and symbol rates.
Quattro LNB Option

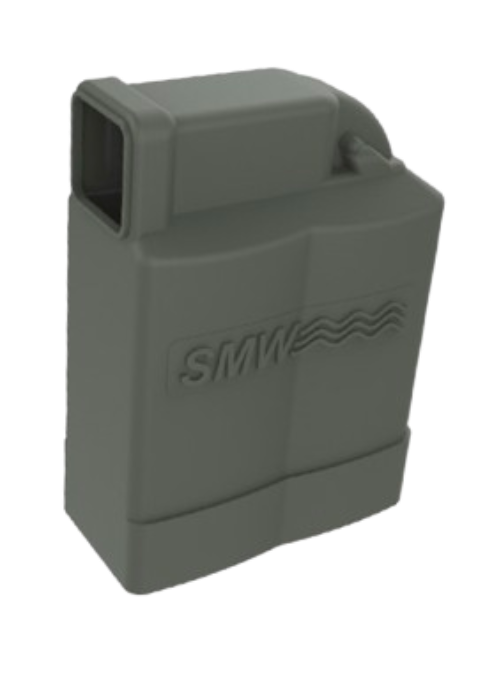

For professional distribution and multi-polarization satellite reception systems, the Quattro version can be supplied with an OMT and weather protection. The Quattro configuration features a 31.5 dB minimum cross-polarization, C-120 circular 18 mm input waveguide, and measures 205 × 152 × 83 mm with a weight of approximately 1.16–1.23 kg, depending on connector configuration.
Applications
The SMW Ku LNB WDL ULP Dual & Quattro is suitable for:
- Professional VSAT networks
- Satellite gateways and teleport systems
- DVB-S2/DVB-S2X reception
- High-order modulation satellite links
- Broadcast and media distribution
- Professional satellite monitoring
- Multi-polarization satellite reception
- N3/N4 satellite communication systems
- High-performance satellite reception infrastructure
Order the SMW Ku LNB 10.70–12.75 GHz WDL ULP Dual & Quattro from VSATPLUS for pricing, configuration assistance, availability, and professional satellite communication solutions.
Contact us: Sales@vsatplus.com
