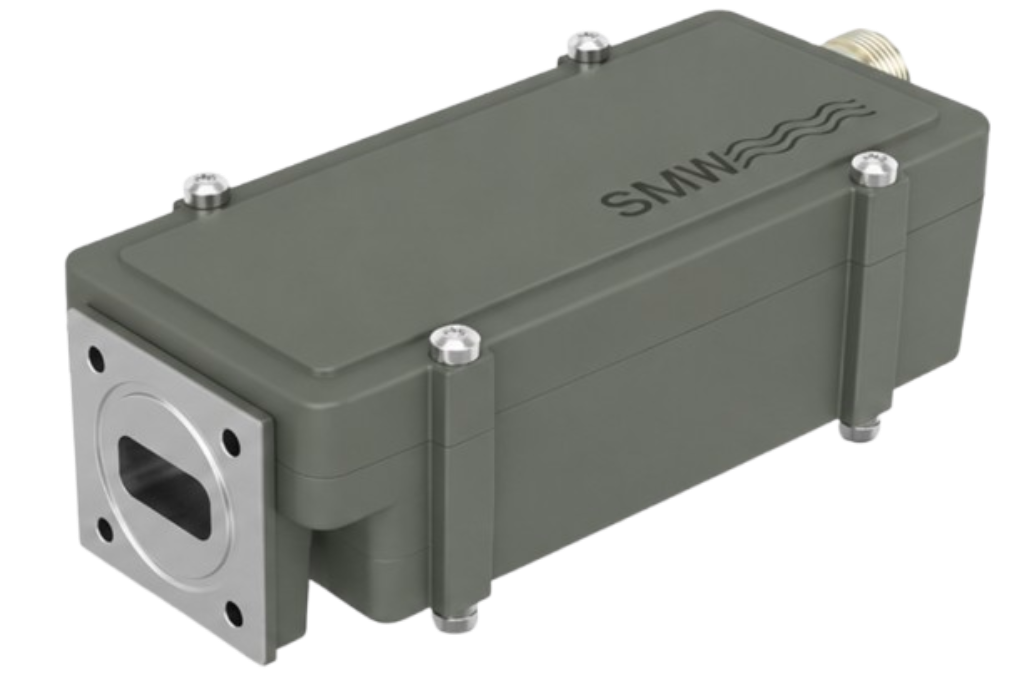

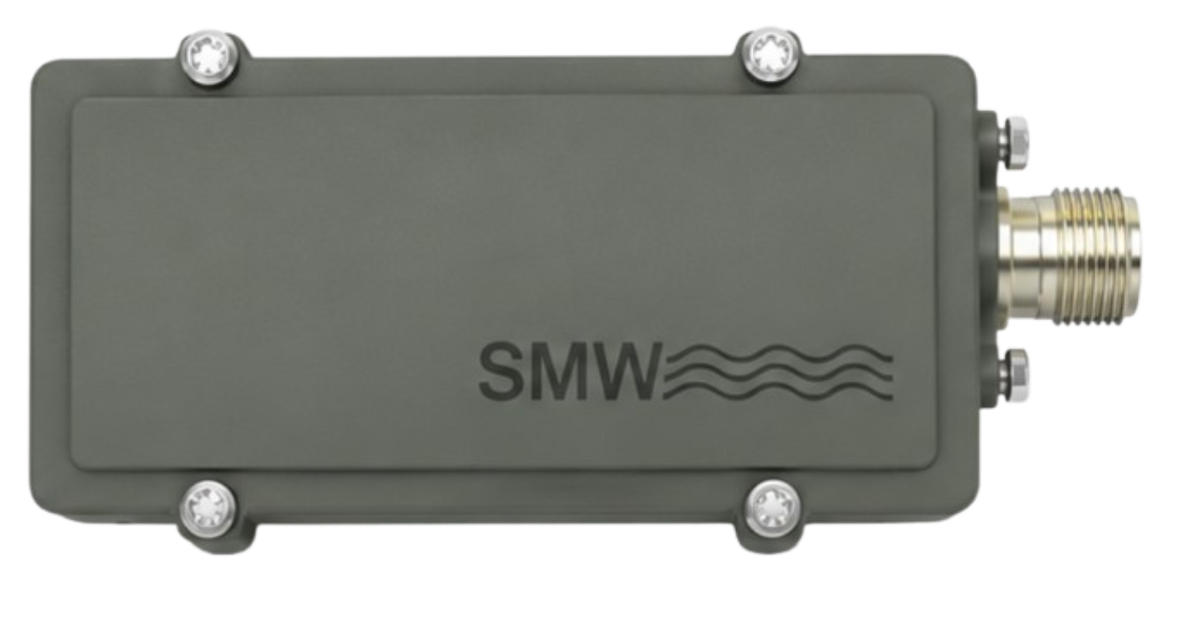

The SMW Ku LNB 10.70–12.75 GHz 2–4 Band from Swedish Microwave AB is a high-performance, switchable Ku-band LNB designed for professional satellite communication and reception systems requiring flexible sub-band selection, excellent phase-noise performance, and a wide IF output range. It is an upgraded version of SMW’s popular Ku Multiband/Q-PLL platform, incorporating improved technology and additional monitoring and control capabilities.
With support for 2-, 3-, and 4-band configurations, the LNB provides flexibility for different Ku-band frequency plans. Multiple LO frequencies from 9.75 to 11.30 GHz are available, with customized LO options also supported. Sub-band switching can be performed using traditional 13/15/18/24 V and 22 kHz tone switching, or through RS485 Modbus RTU when the optional Monitoring & Control interface is selected.
Key Features
- Ku-band input: 10.70–12.80 GHz
- 2-, 3-, and 4-band configurations
- Wide IF output: 950–2150 MHz
- Excellent phase-noise performance
- Multiple selectable LO frequencies: 9.75–11.30 GHz
- External 10 MHz reference with automatic fallback to internal reference
- Legacy voltage/tone switching
- Optional RS485 Modbus RTU Monitoring & Control
- Optional configurable alarm output
- 60 dB typical gain / 55 dB minimum
- 0.8 dB typical noise figure
- +15 dBm minimum output P1dB
- +25 dBm minimum output IP3
- Wide operating and storage temperature range of -40°C to +80°C
- Compact 128 × 56 × 47 mm design
- 370 g weight with N-connector
Technical Specifications
|
Specification |
Details |
|---|---|
|
Product Type |
Ku-band Multiband LNB |
|
RF Input Frequency |
10.70–12.80 GHz |
|
IF Output Frequency |
950–2150 MHz |
|
LO Frequencies |
9.75, 10.00, 10.25, 10.50, 10.60, 10.75, 10.80, 10.90, 11.00, 11.05, 11.25, 11.30 GHz or customized |
|
Configuration |
2-, 3-, or 4-band |
|
Gain |
60 dB typ., 55 dB min. |
|
Noise Figure |
0.8 dB typ., 1.0 dB max. |
|
Output P1dB |
+15 dBm min. |
|
Output IP3 |
+25 dBm min. |
|
Input VSWR |
1.35:1 max. |
|
Output VSWR |
1.7:1 max. N/SMA; 2.3:1 max. F |
|
Phase Noise |
Up to -120 dBc/Hz @ 1 MHz |
|
Input Interface |
WR75 / R120, PBR120 flange |
|
Output Connector |

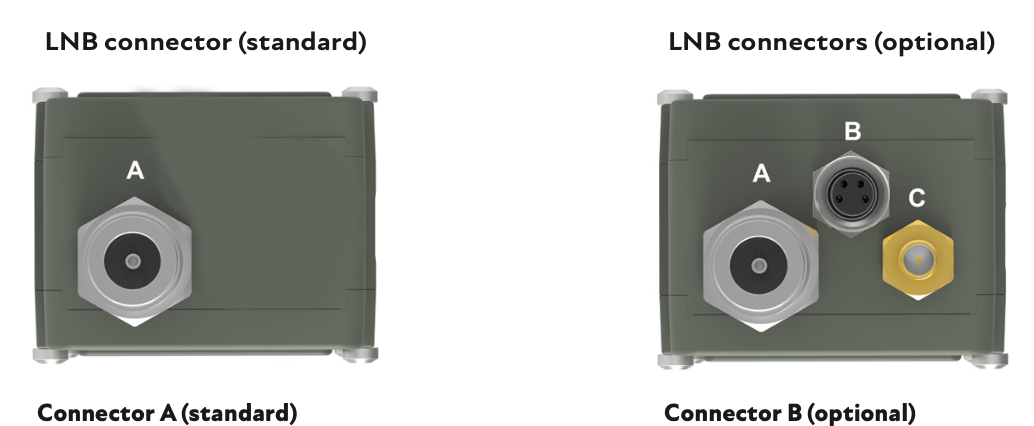

N-type 50Ω, SMA-type 50Ω, or F-type 75Ω |
|
DC Input |
+12 to +24 V nominal |
|
Power Consumption |
5 W max. |
|
External Reference |
10 MHz |
|
Operating Temperature |
-40°C to +80°C |
|
Dimensions |
128 × 56 × 47 mm |
|
Weight |
370 g with N-connector |
|
Optional M&C |
RS485 Modbus RTU |
|
Optional Alarm |
Configurable open-collector alarm |
Specifications are based on the manufacturer’s technical documentation; specific part-number configurations should be confirmed before ordering.
