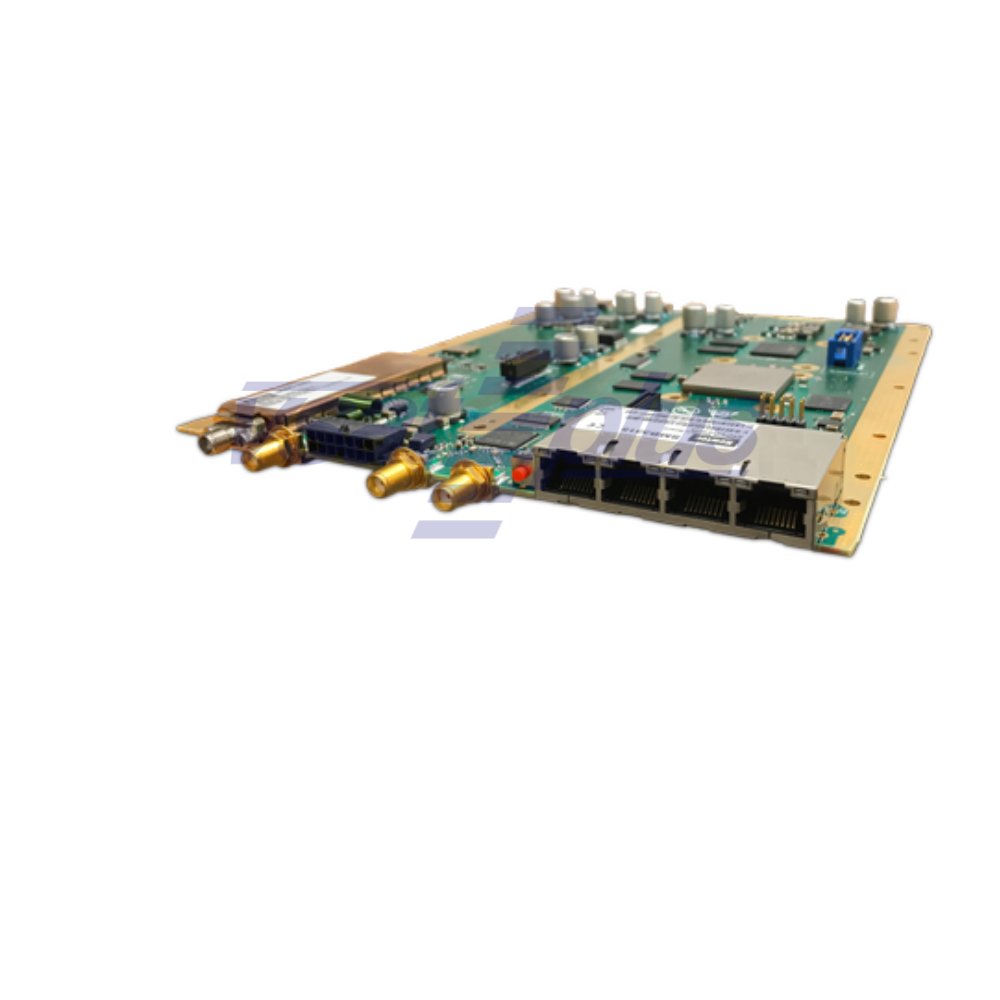

iDirect/ST Engineering SMB3315 Satellite Modem Board

iDirect/ST Engineering SMB3315 Satellite Modem Board

Request for a quote

The SMB3315 Satellite Modem Board is suitable for integration into highly compact COTM terminals for the government and defense, broadcast and mobility markets. It offers unprecedented performance and flexibility in a modem board with the ability to operate on either Dialog or Velocity networks, supports a broad array of mobility capabilities and is fully equipped to operate on HTS spot beams satellites.

Features of the SMB3315

  • For operation in either Dialog or Velocity networks

  • DVB-S2 (up to 45Msps) / DVB-S2X (up to 500 Msps) outbound

  • Supports DVB-S2X MODCODS up to 64APSK

  • Return max rates up to 40Msps (SCPC), 20Msps (MxDMA)

  • Ideal for both fixed and mobility applications with peak throughput rates up to 150/70 Mbps

  • OpenAMIP and GXT file support for mobility

  • Security features with 256-bit AES Link Encryption

  • Embedded TCP acceleration, GTP acceleration and header compression

Network Configuration

Network Topology Rx Tx
                        Dialog DVB-S2/DVB-S2X* MF-TDMA Mx-DMA HRC Mx-DMA MRC SCPC
Modulation QPSK, 8PSK, 16APSK,
32APSK, 64APSK		 4CPM QPSK, 8PSK
16APSK, 32APSK		 QPSK, 8PSK, 16APSK,
32APSK, 64APSK		 QPSK, 8PSK, 16APSK,
32APSK, 64APSK
Symbol Rates 1 Msps to 500 Msps Up to 7.6 Msps Up to 20 Msps Up to 25 Msps 1 Msps to 64 Msps
                     Velocity DVB-S2 Adaptive TDMA
Modulation QPSK, 8PSK, 16APSK, 32APSK BSPK, QSPK, 8PSK
Symbol Rate 1 Msps - 45Msps Up to 7.5 Msps

Modem Interfaces

Tx Interface
Connector SMA 50 Ohm
Frequency range 950-2400 MHz
TX level

-55 dBm to +5 dBm (Dialog)
-45 dBm to + 5 dBm (Velocity
BUC power supply

24V / 4A or 43~44VDC 3.5A
software selectable
BUC reference

10/50 MHz
BUC reference leve +3 dBm

Rx Interface

Connector SMA 50 Ohm
Frequency 950-2150 MHz
LNB power supply 13/18VDC 500mA
LNB band selection 13/18V or 22kHz tone, programmable
LNB polarization selection 13/18V or 22 kHz tone, programmable
Data Interface

LAN: Four 10/100/1000 Mbps Ethernet, auto MDI/MDIX


Management Interface

I/O header, 20 pin connector (includes reset function)
Power & Status signaing connector (14 pin)

Management

 Protocols Supported
UDP, IPv4 & IPv6, ICMP, TCP, IGMPv1, IGMPv2, ARP, DHCP, DNS, NTP, BGP, NAT, Diffserv Marking

Multilingual Web GUI

 Manage web GUI via configurable management IP address

Mechanical and Environmental

Dimensions W 18.2 cm x D 23.5cm x H 2.0 cm
(W 7.2 in x D 9.2 in x H 0.79 in)
Weight 0.4 kg (0.88 lbs)
 Temperature:
Operating -25° to +55°C (-13° to +131°F)
(subject to adequate heatsinking)
Storage -40° to +60°C (-40° to +140°F)
 Humidity
Operating  5 - 95% non-condensing

Power Supply

Power Supply 24 VDC
Power Consumption <30W

Development Kit

 CAD drawings
 Thermal & Mechanical design guidelines
 Electrical interface specification
