Skyware Global Type 127 1.2m Rx/Tx Extended Ka-Band Antenna

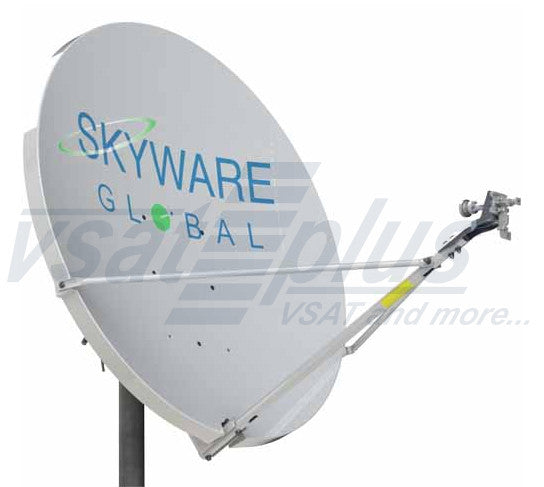

New Skyware Global 1.2m Rx/Tx Extended Ka-Band Antenna is a rugged, commercial quality product suitable for the most demanding applications.

  • The reflector is constructed from glass fiber reinforced polyester for strength and accuracy. A proprietary process developed by Skyware Global ensures high RF reflectivity as needed for Ka Band operation
  • The precision Az/El mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error.
  • This Az/El allows the antenna to be installed on standard 73mm [2-7/8”] OD installation mounts.
  • All hardware is plated to 720 hour salt spray standards tested in accordance with ASTM B-117.
  • Designed for use with the Skyware Global line of Ka-band feed assemblies.
  • Tx Cross-Polarization Isolation of 25dB (within 1dB b/w) or better for CP Application.
  • Excellent Tx Port to Port Isolation of 90dB or better.
  • Meets or exceeds regulatory agency requirements.
  • System designed for typical Ka-band RF Electronics.
RF Performance
Operating Frequency
    Tx
    Rx

28.3-30.0 GHz
18.3 - 20.2 GHz
Polarization
    Tx
    Rx

Circular, LH or RH
Circular, LH or RH
Gain (min)
    Tx
    Rx

49.5 dBi @ 30.0 GHz
46.3 dBi @ 20.2 GHz
3 dB Beamwidth
    Tx
    Rx

0.56° @ 30.0 GHz
0.83° @ 20.2 GHz
Sidelobe Envelope (Tx, Co-Pol dBi)
    100 λ/D < θ < 20˚
    20° < q< 26.3°
    26.3° <q< 48°
    0 > 48°

29 - 25 Log θ dBi
-3.5 dBi
32 - 25 Log θ dBi
-10 dBi (typical)
Antenna Cross-Polarization (within 1dB b/w)
    Tx
    Rx

>25 dB
>22 dB
Antenna Noise Temperature @ 30˚ El 57˚K Mx
VSWR 1.2:1 Max
Feed Interface Custom Circular
Mechanical Performance
Reflector Material Glass Fiber Reinforced Polyester
Antenna Optics One Piece Offset Feed Prime Focus
Mount Type Elevation over Azimuth
Elevation Adjustment Range 5° - 90° Continuous Fine Adjustment
Azimuth Adjustment Range 360° Continuous; ±5° Fine Adjustment
Mast Pipe Interface 73.2 mm (2.8 in) Diameter
Wind Loading
    Operational
    Functional Survival
    Ultimate Survival

45mph (72 km/h)
80mph (128 km/h)
125mph (200 km/h)
Temperature -50°C to 80°C
Humidity 0 to 100% (Condensing)
Corrosion Protection Standard Hardware Meets 720 Hour Salt Spray Test Requirements (ASTM B-117)
Solar Radiation 360 BTU/h/ft²
Shock and Vibration As encountered during Shipping and Handling
