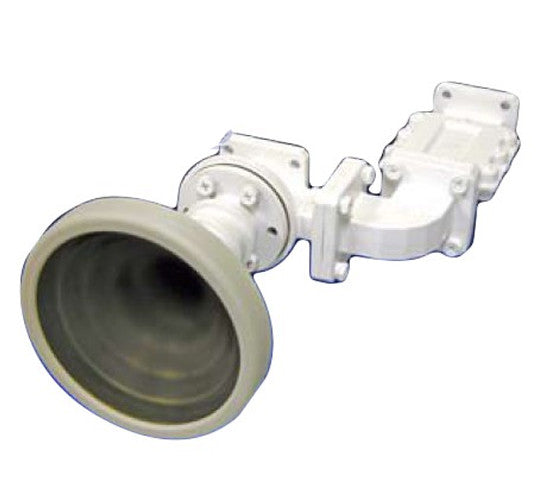

Skyware Global RxTx Cross Polarized Feed Ku Band (Model 6116784-02)
Skyware Global RxTx Cross Polarized Feed Ku Band (Model 6116784-02)
Antenna Feeds
The Skyware Global Ku-Band cross-polarized feed has been specifically designed for our line of offset reflectors. Electrically tested and matched, this die-cast feed assembly provides maximum performance for demanding commercial applications. This feed is compatible with SFL Class I antennas....
- SKU::
- Category: All Products, Antenna Feeds, Antennas, Skyware Global
The Skyware Global Ku-Band cross-polarized feed has been specifically designed for our line of offset reflectors. Electrically tested and matched, this die-cast feed assembly provides maximum performance for demanding commercial applications. This feed is compatible with SFL Class I antennas.
- Broadband performance
- Includes mounting clamp and hardware
- Polarization scale built-in for feed horn.
- All materials comply with EU directive No. 2002/95/EC (RoHS).
OUTLINE DRAWING
