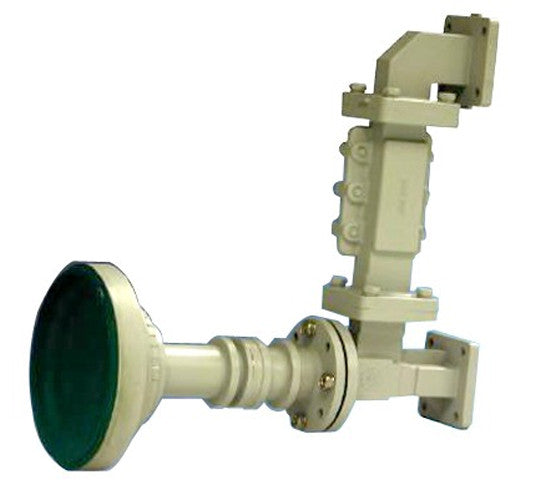

Skyware Global Cross Polarized RxTx Feed Ku Band (Model: 6116783-01)

Skyware Global Cross Polarized RxTx Feed Ku Band (Model: 6116783-01)

Antenna Feeds

Skyware Global Cross Polarized RxTx Feed Ku Band The Skyware Global Ku-Band cross-polarized feed has been specifically designed for our line of offset reflectors. Electrically tested and matched, this die-cast feed assembly provides maximum. performance for demanding commercial applications. The...

  • Category: All Products, Antenna Feeds, Antennas, Skyware Global
Skyware Global Cross Polarized RxTx Feed Ku Band

The Skyware Global Ku-Band cross-polarized feed has been specifically designed for our line of offset reflectors. Electrically tested and matched, this die-cast feed assembly provides maximum. performance for demanding commercial applications. The feed is available for the various Skyware Global antenna types.
  • Broadband performance
  • Includes mounting clamp and hardware
  • Polarization scale built-in for feed horn.
  • All materials comply with EU directive No. 2002/95/EC (RoHS).
  • Models to suit all ASC Signal antenna types.

Rx

Tx

Operating Frequency ………………… 10.70 – 12.75 GHz
VSWR ……………………………………………..…… 1:5:1

Isolation ……………………………………………... 35 dB

Insertion Loss ………………………………………. 0.6 dB

Cross-Polarization (On Axis) ………………… >30 dB

Interface ………………………………… WR75 Cover Flange

Operating Frequency ………………… 13.75 – 14.50 GHz
VSWR ……………………………………………..…… 1:3:1

Isolation ……………………………………………... 80 dB

Insertion Loss ………………………………………. 0.2 dB

Cross-Polarization (On Axis) ………………… >30 dB

Interface ………………………………… WR75 Cover Flange
