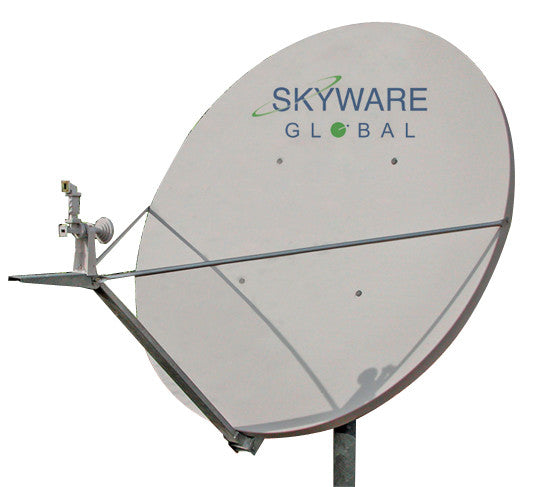

Skyware Global Type 243 2.4M Ku-Band Tx/Rx Class III Cross-Pol Antenna

  • Tx Frequency: 13.75 - 14.50 GHz
  • Rx Frequency: 10.70 - 12.75 GHz
  • Fiberglass Reflector
  • Az/El mount with fine azimuth, and elevation adjustment and 6.63" (168mm) mast pipe interface
  • Feed Support and Feed Horn assembly with Orthomode Transducer (OMT) and Transmit-Reject Filter (TRF)
  • Intelsat Approved; Reference Bulletin PA-100572
  •

    The Skyware Global Type 243 2.4M Class III Tx/Rx Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to maintain its critical parabolic shape necessary for transmit performance.

    The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector and feed support arm. Heavy-duty lockdown bolts secure the mount to any 6.63" (168 mm) O.D. mast and prevent slippage in high winds. Hot-dip galvanizing is standard for maximum environmental protection.

    Skyware Global Type 243 2.4M Ku-Band Tx/Rx Class III Cross-Pol Antenna

    Type 243 Antenna Features

  • Two-piece precision offset thermoset molded reflector
  • Heavy-duty galvanized Az/El mount
  • Fine Azimuth and elevation adjustments
  • Galvanized support arm and alignment struts
  • Factory pre-assembled mount
  • Galvanized and stainless hardware for maximum corrosion resistance
  • Includes Ku-Band linear cross-polarized RxTx feed assembly
  • Heavy-duty Class III mount for 25 lb (11 kg) RF electronics (LNB & BUC)
  • General Specifications
    Tx Frequency 13.75 - 14.50 GHz
    Rx Frequency 10.70 - 12.75 GHz
    Gain (3 dBi) 49.3 dBi @ 14.25 GHz
    Feed Interface WR-75
    OMT / Filter Assembly Included
    Electrical Specifications
    Effective Aperture 2.4m (96 in.)
    Operating Frequency Transmit = 13.75 - 14.50 GHz
    Receive = 10.70 - 12.75 GHz
    Polarization Linear, Co or Cross-Polarized
    Gain (±.3 dBi) Transmit = 49.3 dBi @ 14.25 GHz
    Receive = 47.6 dBi @ 11.95 GHz
    3 dB Beamwidth Transmit = .59° @ 14.3 GHz
    Receive = .71° @ 12.0 GHz
    Antenna Cross-Polarization >30 dB (on axis)
    Antenna Noise Temperature 10° Elevation = 42°K
    20° Elevation = 34°K
    30° Elevation = 31°K
    VSWR 1.3:1 Max.
    Isolation, Tx to Rx 80 dB Min.
    Feed Interface Transmit = WR-75
    Receive = WR-75
    Sidelobe Envelope (Tx,Co-Pol dBi):
    2°* < θ < 20°
    20° < θ < 26.3°
    26.3° < θ < 48°
    48° < θ < 180°

    29-25 Log θ
    -3.5
    32-25 Log θ
    -10 (Typical)
    Mechanical Specifications
    Reflector Material Glass Fiber Reinforced Polyester
    Antenna Optics Two-Piece Offset Feed Prime Focus
    Mount Type Elevation over Azimuth
    Elevation Adjust. Range 10°-90° Continuous Fine Adjustment
    Azimuth Adjust. Range 360° Continuous; ±12° Fine Adjustment
    Mast Pipe Interface 6.63 in.(168 mm) Diameter
    Environmental Performance
    Wind Loading Operational = 45 mi/h (72 km/h)
    Survival = 125 mi/h (200 km/h)
    Temperature -50°C to 80°C
    Humidity 0 to 100% (Condensing)
    Atmosphere Salt, Pollutants and Contaminants as
    Encountered in Coastal and Industrial Areas
    Solar Radiation 360 BTU
    Shock and Vibration As Encountered During
    Shipping and Handling
