Skyware Global Antenna 1.8m Tx/Rx C-Band Type 183 Class III

1 In stock

C-Band Rx/Tx Antenna

Skyware Global

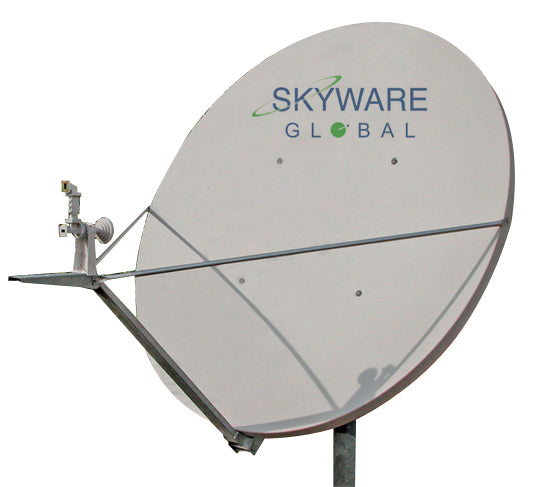

SKYWARE GLOBAL TYPE 183 1.8-METER C-BAND ANTENNA Frequency Range: Rx 3.625 - 4.2 GHz, Tx 5.850 - 6.425GHz, WR137 Flange Transmit Input, Includes: fiberglass reflector, az/el mount with fine azimuth, and elevation adjustment (4.5", 114mm mast pipe interface), feed support with transmit feed horn, Orthomode Transducer (OMT) and transmit-reject filter...
Feed Configuration *
-
+
USD 1,100.00
USD 1,100.00
Add to wishlist

SKYWARE GLOBAL TYPE 183 1.8-METER C-BAND ANTENNA

Frequency Range: Rx 3.625 - 4.2 GHz, Tx 5.850 - 6.425GHz, WR137 Flange Transmit Input, Includes: fiberglass reflector, az/el mount with fine azimuth, and elevation adjustment (4.5", 114mm mast pipe interface), feed support with transmit feed horn, Orthomode Transducer (OMT) and transmit-reject filter assembly. Intelsat Approved (62-1833911L)

The Skyware Global Type 183 1.8 m Class III RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of each reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain the critical parabolic shape necessary for transmit performance.

The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector and feed support arm. Heavy-duty lockdown bolts secure the mount to any 4.50" (114 mm) O.D mast and prevent slippage in high winds. Hot-dip galvanizing is standard for maximum environmental protection.

FEATURES

  • One-piece precision offset thermosetmolded reflector.
  • Fine Azimuth and elevation adjustments.
  • Galvanized feed support arm and alignment struts.
  • Galvanized and stainless hardware for maximum corrosion resistance.
  • RF tested feed assembly
  • Heavy-duty Class III mount for 25 lb (11 kg) RF electronics (LNB & BUC).
  • Skyware Global Antenna 1.8m Tx/Rx C-Band Type 183 Class III
    RF Performance
    Effective Aperture 1.8 m (71 in)
    Operating Frequency
        Transmit
        Receive

    5.850 - 6.725 GHz
    3.400 - 4.200 GHz
    Polarization Linear, Orthogonal
    Circular: Tx LH, Rx RH; or Tx RH, Rx LH
    Gain (±.3 dBi)
        Transmit
        Receive

    39.3 dBi @ 6.138 GHz
    35.4 dBi @ 3.913 GHz
    3 dB Beamwidth
        Transmit
        Receive

    2.0° @ 6.1 GHz
    3.0° @ 3.9 GHz
    Sidelobe Envelope (Tx, Co-Pol dBi)
        2°<θ<20°
        20°<θ<26.3°
        26.3°<θ<48°
        48°<θ<180°

    29-25 Log θ
    -3.5
    32-25 Log θ
    -10
    Antenna Cross-Polarization >30 dB (on axis)
    Antenna Noise Temperature
        10° El
        20° El
        30° El

    41°K
    36°K
    33°K
    VSWR
        Transmit
        Receive

    1.3:1
    1.4:1
    Isolation
        Transmit
        Receive

    60 dB
    60 dB
    Feed Interface
        Transmit
        Receive

    CPR-137 or Type N
    CPR-229
    Mechanical Performance
    Reflector Material Glass Fiber Reinforced Polyester
    Antenna Optics One-Piece Offset Feed Prime Focus Long Focal Length
    Mount Type Elevation over Azimuth
    Elevation Adjustment Range 7° -90° Continuous Fine Adjustment
    Azimuth Adjustment Range 360° Continuous
    Feed Support Rectangular Section with Alignment Legs
    Mast Pipe Interface 4.50 in (114 mm) Diameter
    Wind Loading
        Operational
        Survival

    50 mi/h (80 km/h)
    125 mi/h (200 km/h)
    Temperature -50°C to 80°C
    Humidity 0 to 100% (Condensing)
    Atmosphere Salt, Pollutants and Contaminants as Encountered
    in Coastal and Industrial Areas
    Solar Radiation 360 BTU/h/ft²
    Shock and Vibration As Encountered During Shipping and Handling
