Skyware Global Type 122 1.2M Ku-Band Tx/Rx Class I Antenna System The Skyware Global Type 122 1.2M Ku-Band Tx/Rx Class I Antenna System is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and...

  • Category: All Products, Antennas, Ku-Band Tx/Rx Antennas, Skyware Global

Skyware Global Type 122 1.2M Ku-Band Tx/Rx Class I Antenna System

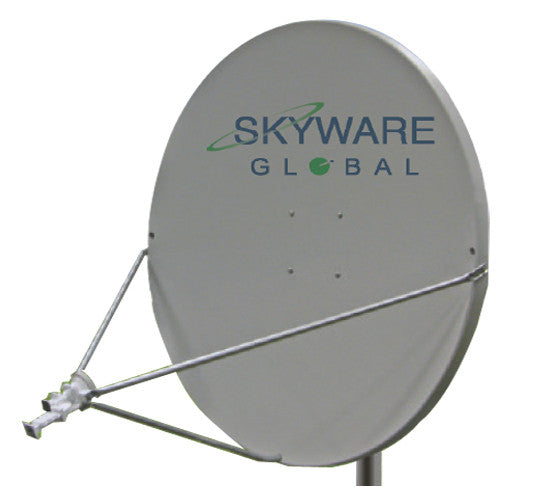

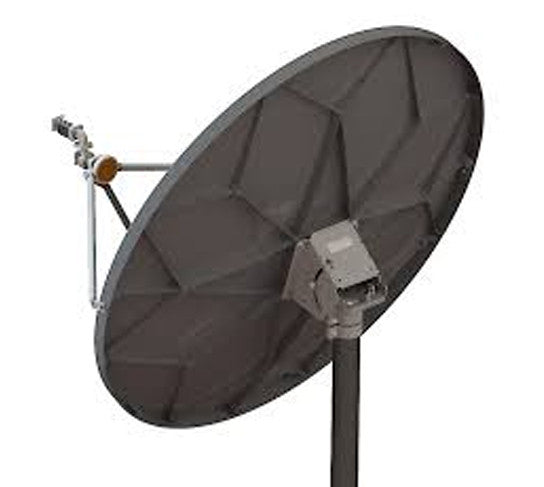

The Skyware Global Type 122 1.2M Ku-Band Tx/Rx Class I Antenna System is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which strengthens the antenna and sustains its critical parabolic shape necessary for transmit performance. The reflector optics feature a long focal length for excellent cross-pol performance.

The precision Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/El mount secures the antenna to any 73-76 mm (2.88" - 3.0") O.D. mast and prevents slippage in high winds. A specially formulated powder paint process offers excellent protection from weather-related corrosion.

The antenna features a unique feed which provides cross-pol performance that exceeds industry standards

Type 122 Features

  • All materials comply with EU directive No. 2002/95/EC (RoHS).
  • One-piece precision offset thermoset-molded reflector.
  • Available with Ku-Band co-pol or cross-pol feeds
  • Galvanized 19 mm (.75”) O.D. feed support legs for lightweight outdoor units (ODU's)
  • Plated hardware for maximum corrosion resistance
  • Az/El mount includes both elevation and azimuth fine adjustments
  • Class I system designed for typical lightweight Ku-Band RF Electronics
Skyware Global Type 122 1.2M Ku-Band Tx/Rx Class I Antenna System

*2 kg or 4.5 lb max. weight (for BUC and LNB)
2.2 kg or 4.8 lb max. weight (for Transceiver)

RF Performance
Effective Aperture 1.2M (48 in)
Operating Frequency
    Transmit
    Receive

13.75 - 14.50 GHz
10.70 - 12.75 GHz
Polarization Linear, Orthogonal
(co-pol optional)
Gain (±.3 dBi)
    Transmit
    Receive

43.3 dBi @ 14.3 GHz
41.8 dBi @ 12.0 GHz
3 dB Beamwidth
    Transmit
    Receive

1.2˚ @ 14.3 GHz
1.5˚ @ 12.0 GHz
Sidelobe Envelope (Tx, Co-Pol dBi)
    Mainbeam < θ < 20˚
    20˚ < θ < 26.3˚
    26.3˚ < θ < 48˚
    48˚ < θ < 180˚

29 - 25 Log θ
-3.5
32 - 25 Log θ
-10
Antenna Cross-Polarization 30 dB in 1 dB Contour
Antenna Noise Temperature
    10˚ El
    20˚ El
    30˚ El

48˚ K
35˚ K
29˚ K
VSWR
    Transmit
    Receive

1.3:1
1.5:1
Isolation (Port to Port)
    Transmit
    Receive

90 dB
>40 dB
Feed Interface
    Transmit
    Receive

WR75 Flat Flange
WR75 Flat Flange
Mechanical Performance
Reflector Material Glass Fiber Reinforced Polyester
Antenna Optics One-Piece Offset Feed Prime Focus
Mount Type Elevation over Azimuth
Elevation Adjustment Range 8˚ - 90˚ Continuous Fine Adjustment
Azimuth Adjustment Range 360˚ Continuous, ±5° Fine Adjustment
Mast Pipe Interface 73 - 76 mm (2.88 in - 3.00 in) Diameter
Wind Loading
    Operational
    Survival

72 km/h (45 mph)
200 km/h (125 mph)
Temperature -50˚C to 80˚C
Humidity 0 to 100% (Condensing)
Atmosphere Standard Hardware Meets 500 Hour Salt Spray Test Requirements (ASTM B-117)
Solar Radiation 360 BTU/h/ft²
Shock and Vibration As Encountered During Shipping and Handling
