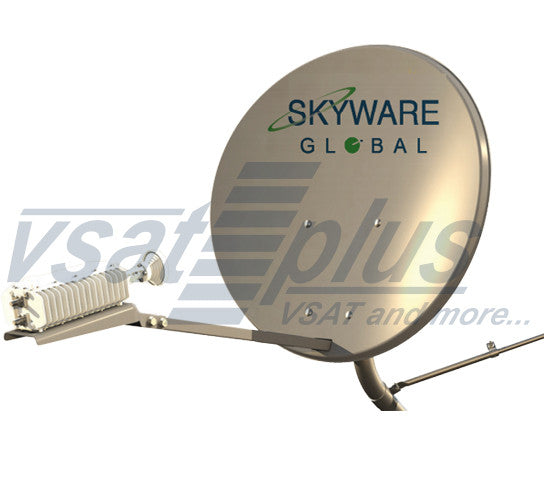

Skyware Global Type 690 69cm Rx/Tx Ka-Band Antenna

Not Specified

Ka-Band Antenna

Skyware Global

Skyware Global 69cm Rx/Tx Ka-Band Antenna The Skyware Global 69cm Rx/Tx Ka-Band Antenna is a rugged, commercial grade product suitable for the most demanding applications. The pressed steel reflector assures the surface accuracy needed for Ka-band performance. Pre-galvanized steel with a powder coat finish guarantees excellent corrosion resistance and long life. The pressed...
Add to wishlist

Skyware Global 69cm Rx/Tx Ka-Band Antenna

The Skyware Global 69cm Rx/Tx Ka-Band Antenna is a rugged, commercial grade product suitable for the most demanding applications.

  • The pressed steel reflector assures the surface accuracy needed for Ka-band performance. Pre-galvanized steel with a powder coat finish guarantees excellent corrosion resistance and long life.
  • The pressed steel back structure provides for precision alignment of the reflector and support of the RF assembly without distortion.
  • The reflector optics incorporate a long focal length for excellent cross-pol discrimination or “beam squint”.
  • The heavy gauge steel Az/El mount provides a rigid support for the antenna and incorporates precise fine elevation and azimuth adjustment.
  • This Az/El allows the antenna to be installed on any standard 2” (51mm) or 2 3/8” (60.3mm) OD installation mount or mast depending of customer requirements.

PRODUCT SPECIFICATIONS

69cm Rx/Tx Ka-Band Antenna System

RF Performance

Operating Frequency TX . . . . . . . . . . . . . . ..  29.50-30.00GHz RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   19.20-20.20GHz Polarization

TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Circular RH or LH

RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Circular RH or LH Gain (±0.3 dB)

TX . . . . . . . . . . . . . . . . . . . . . . . . . . . 44.8 dBi @ 29.75GHz

RX . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.2 dBi @ 19.70GHz

3 dB Beamwidth

TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7° @ 29.75GHz

RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1° @ 19.70GHz Sidelobe Envelope (Tx, Co-Pol dBi)

100 λ/D < q < 20°. . . . . . . . . . . . . . . . . . . . .29-25 log q dBi

20° < q < 26.3°. . . . . . . . . . . . . . . . . . . . . . . . . . . . . -3.5 dBi 26.3° < q < 48°. . . . . . . . . . . . . . . . . . . . . . . .32-25 log q dBi 48° < q < 180° . . . . . . . . . . . . . . . . . . . . . . .-10 dBi (Typical) Antenna Cross-Polarization (within 1dB B/W)

RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22dB Antenna Noise Temperature 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .@ 30° EL 56K Max

VSWR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3:1 Max Feed Interface. . . . . . . . . . . . . . . . . . . . . . Custom Circular

1 Gain and Noise Temperature at Feed Horn Flange (All specifications typical)

Mechanical Performance

Reflector Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . Steel Antenna Optics . . . . .One-Piece Offset Feed Prime Focus Mount Type . . . . . . . . . . . . . . . . . Elevation Over Azimuth Elevation Adjustment Range . . . . . . . . 8°-90° Continuous

                                                                     Fine Adjustment

Azimuth Adjustment Range . . . . . . . . . . 360° Continuous

                                                                        ± 5° Fine Adjustment

Mast Pipe Interface. . . . . . .51mm (2.00in)Diameter(Std.)

                                                 60mm (2.38in)Diameter(Opt.)

Enviromental Performance

Wind Loading Operational . . . . . . . . . . . . . . . . . .  45mph (72km/h) Functional Survival . . . . . . . . . . . . . . . . 80mph (128km/h) Ultimate Survival . . . . . . . . . . . . . . . . .125mph (200km/h) Operational Temperature . . . . . . .-40°C to +60°C

Survival Temperature . . . . . . . . . . . . . . . . . -50°C to +80°C Humidity. . . . . . . . . . . . . . . . . . . . 0 to 100% (Condensing) Corrosion protection . . . . . . .Standard Hardware 500 Hrs

                                                  SST Requirements (ASTM B-117)

Solar Radiation . . . . . . . . . . . . . . . . . . . . . . .360 BTU/h/ft2 Shock and Vibration. . . . . . . . . . . .As Encountered during

                                                             Shipping and handling
