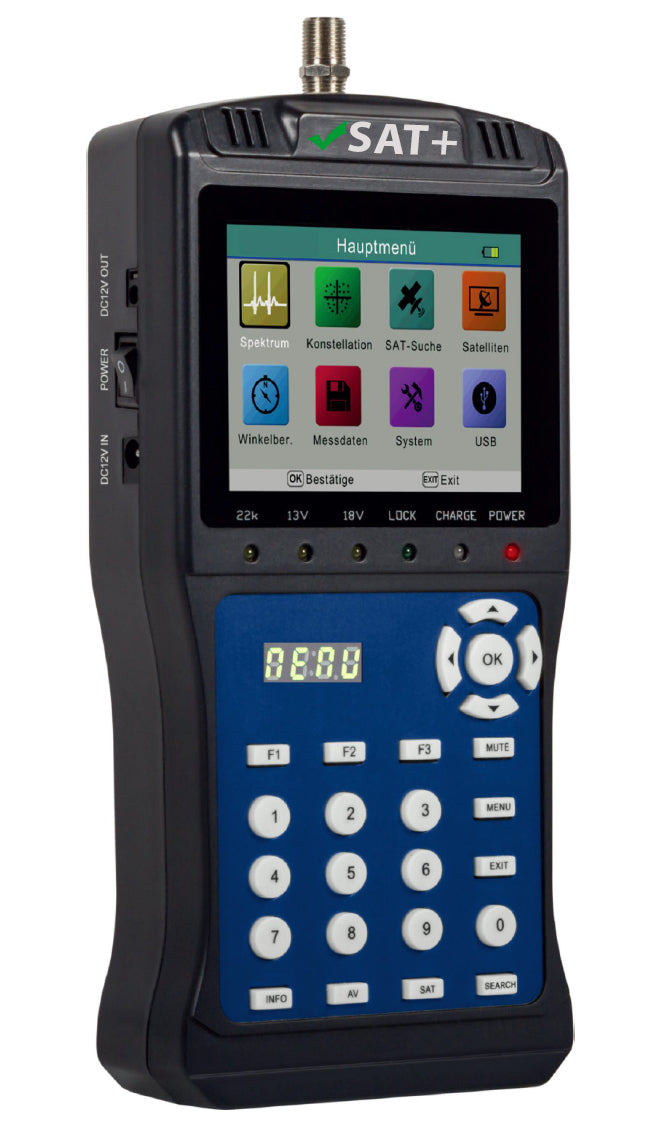

Satmeter HD1 Spectrum Satellite Meter

Satmeter HD1 Spectrum Satellite Meter

Spectrum Analyzer

FEATURES 3.5 inch TFT LCD screen with 320*240 pixels Real time spectrum display Constellation analyzer MPEG4 AVC/H.264, MPEG-2 decoder HDMI output AV in and 12V output for CCTV Support DiSEqC 1.0/1.2, USALS, SCR and SCD2. Satellite name auto detected by...

USD 187.00
  • Category: Accessories, Featured products, Spectrum Analyzer

FEATURES

  • 3.5 inch TFT LCD screen with 320*240 pixels
  • Real time spectrum display
  • Constellation analyzer
  • MPEG4 AVC/H.264, MPEG-2 decoder
  • HDMI output
  • AV in and 12V output for CCTV
  • Support DiSEqC 1.0/1.2, USALS, SCR and SCD2.
  • Satellite name auto detected by NIT
  • 4 digital 7 Segments LED display for signal level.
  • Signal lock audible notification: on/off
  • LNB short-circuit protection and indicator
  • Firmware and database upgrade by USB
  • Ultra-long standby, low power consumption
  • Fast charging Li-ion battery(8.4V@ 3000mAh) can last around 3 hours
  • Satellite and transponder import or export by USB sticker
  • Channel import or export by USB sticker
  • Spectrum and constellation data stored in device
  • Full TS recorded in USB sticker
  • Auto power off
  • AHD/TVI/CVI/Analog(Optional)
  • Compass(Optional)

Identification



DVB-S

DVB-S2

Demodulation

QPSK

QPSK, 8QPSK,16APSK, 32APSK

Code Rate

1/2, 2/3, 3/4, 5/6, 7/8,

1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10,

Symbol Rate

1~45MSPS

Input frequency

950-2150MHz

Input Impedance

75Ω

Min.level in

35dBuV(noise)

Max.level in

90dBuV

LNB Power and Pol

Vertical 13V, Horizontal 18V, 500mA

Bandwidth

C/Ku-band Selectable













Edit Satellite

Satellite

Name



Maximum support 11 characters in length

LNB Power

18V, 13V, AUTO, OFF

LNB Type

Universal,                OCS,                SINGLE1,                SINGLE2, SINGLE3,SINGLE4,SINGLE5 ,Customized

22KHz

AUTO, OFF, ON

Switch Type

DiSEQC1.0(LNB1~LNB4), DiSEQC1.1(LNB1~LNB16)

Position Type

USALS, DiSEQC1.2

Satellite Finding

Display the signal strength of selected frequency

Edit TP

Frequency, Symbol Rate, Polarity(950~2150MHz)

Spectrum Analyzer

Display waveforms of selected frequencies

Constellation

Constellation with 8PSK ,    QPSK, 16APSK, 32APSK

Angle Calculate

Azimuth, Elevation, Polarization

Interface

HDMI, USB, DC-JACK, AV IN, 12V output, Power switch

keyboard

25keys

Record

Ts  stream record Via USB,  (Does not  support hard  disk)

Software upgrade

Software upgrade via USB

Database upgrade

Database upgrade via USB
