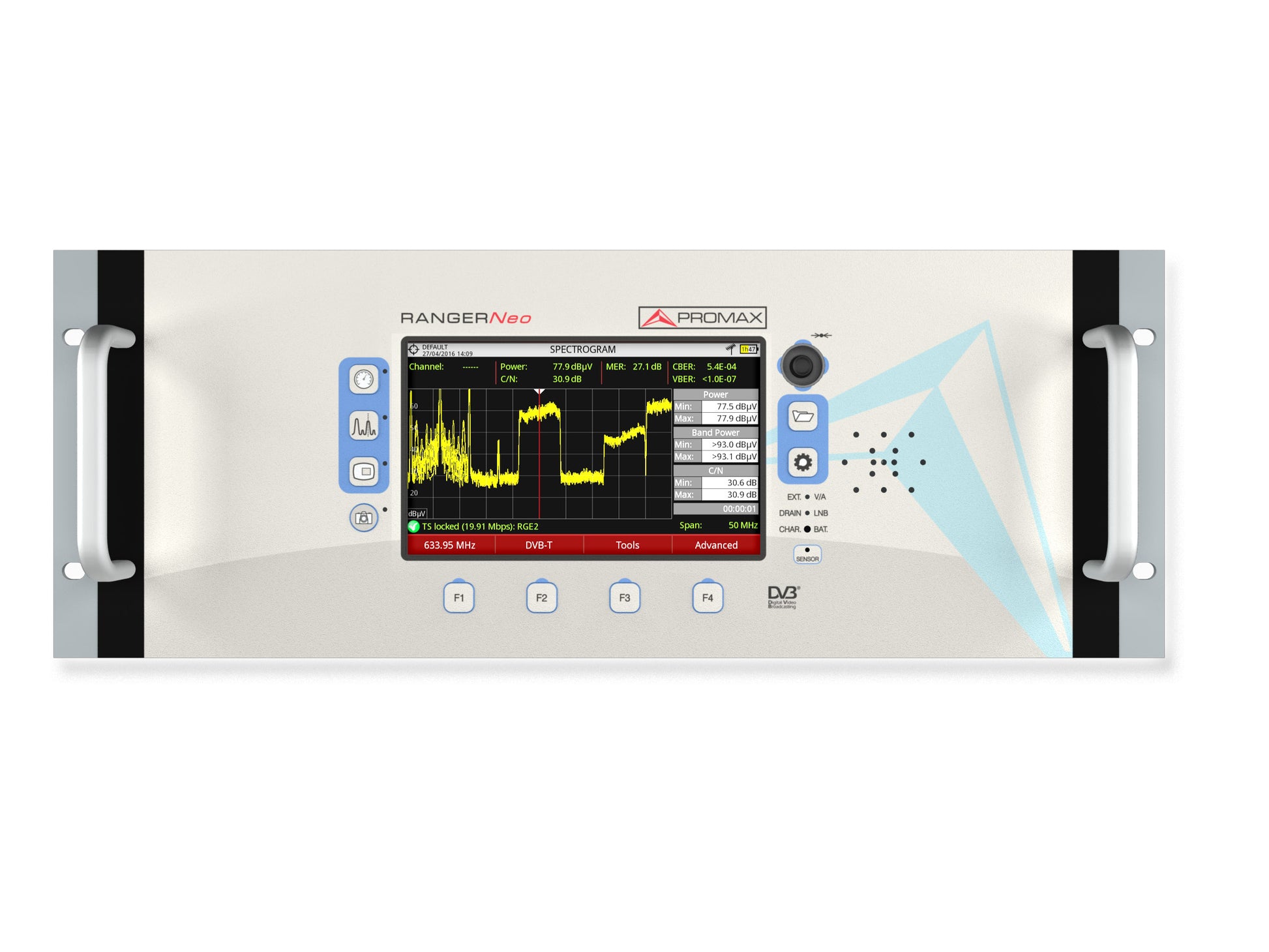

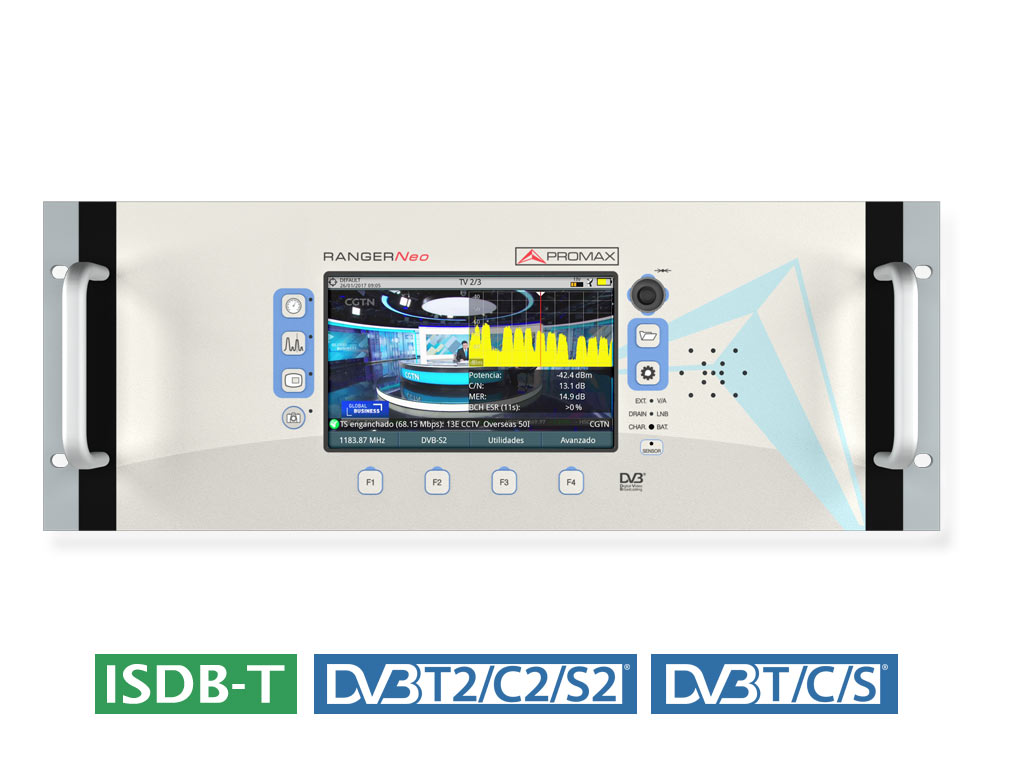

RANGERNeo + Rack: ADVANCED Multifunction TV & Satellite Analyser (DVB & ISDB-T). Rack version

RANGERNeo + Rack: ADVANCED Multifunction TV & Satellite Analyser (DVB & ISDB-T). Rack version

Request for a quote

The RANGER Neo Rack + is an advanced Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.

They are intended to help expert installers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.

HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo Rack + field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product (1600 gr) ideal for field work.

  • DVB-T2/C2/S2, DSS, Dolby Digital Plus
  • ISDB-T/Tb
  • Super spectrum analyzer with Triple split display
  • Dynamic echoes analysis
  • Touch screen
  • HEVC H.265 decoding
  • Wide band LNB compatibility
  • Wi-Fi analyzer
  • webControl remote control
  • Merogram and Spectrogram
  • Fibre optics and GPS options




SPECIFICATIONS RANGER Neo Rack 3

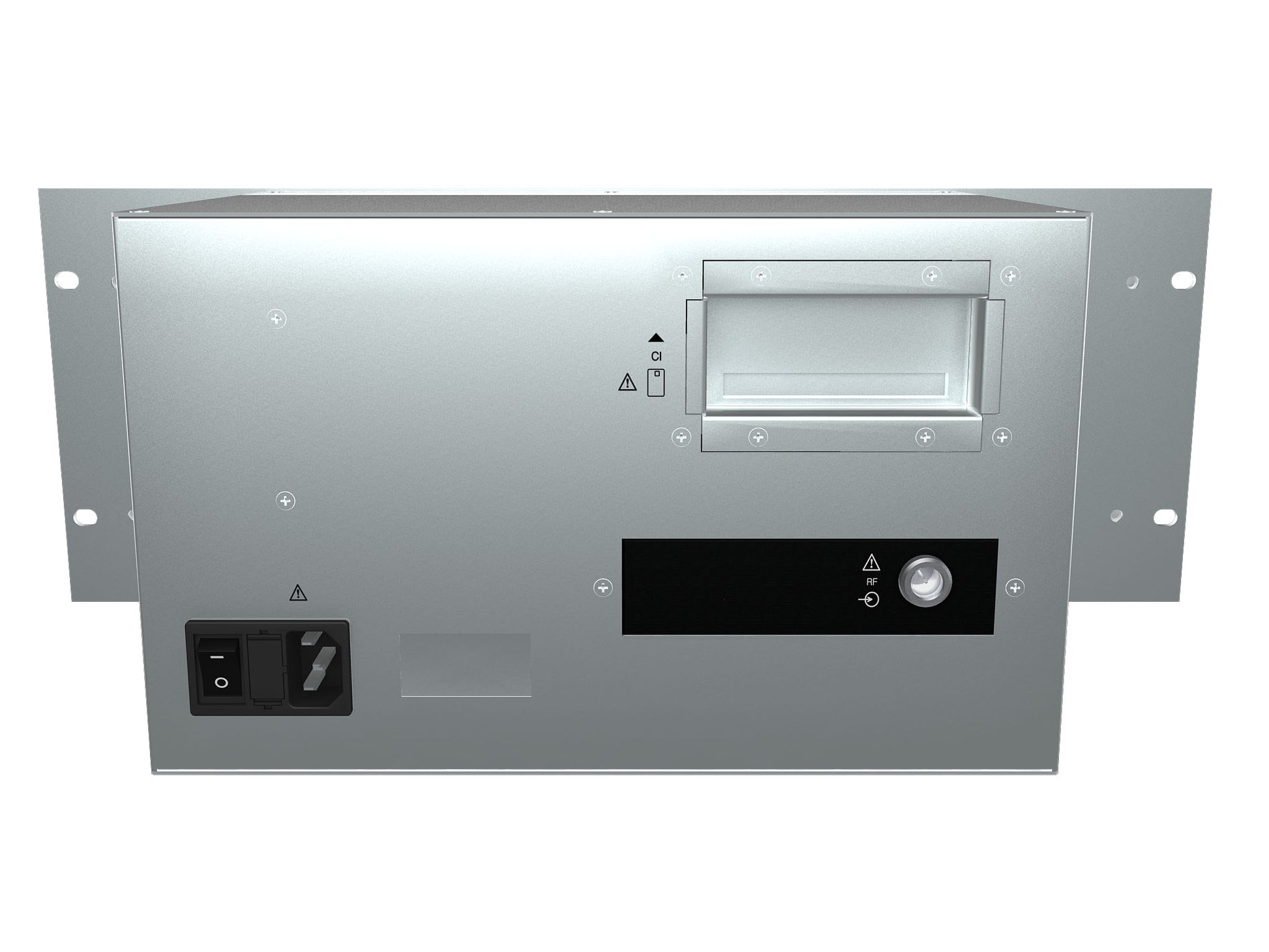

RACK ASSEMBLY 19” 4U
  • 482 (W.) x 178 (H.) x 238,7 (D.) mm
OPERATION MODES
    • Hybrid operation: 7” touch screen or conventional buttons
    DIGITAL STANDARDS
    • ISDB-T/Tb
    • QAM annex B
    • DVB-C
    • DVB-S, DVB-S2, DVB-S2 multistream
    • ISDB-T/Tb
    • DSS, ACM/VCM/CCM
    VIDEO CODECS
    • MPEG-2, MPEG-4 H.264, HEVC H.265
    AUDIO CODECS
    • MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

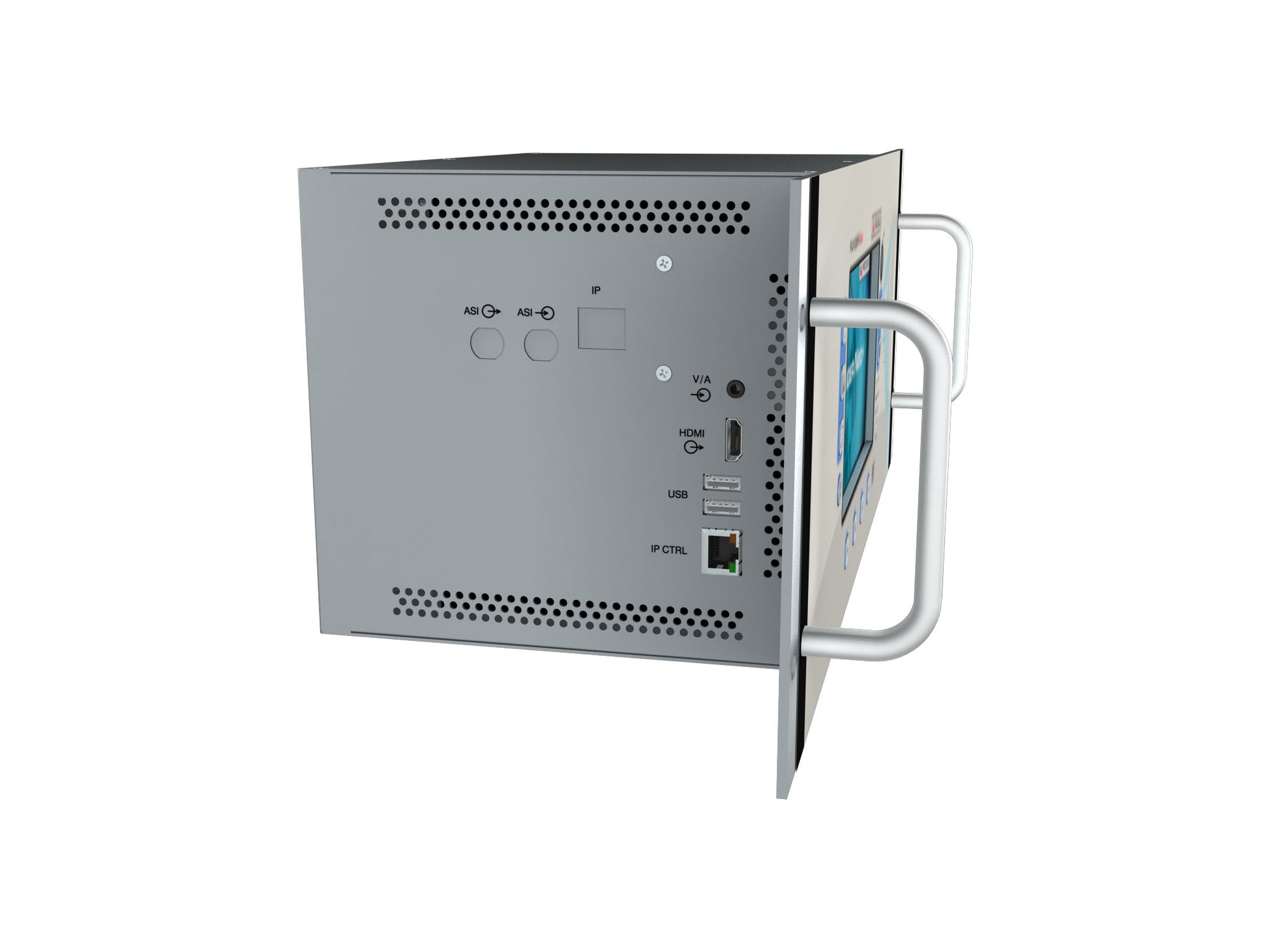

    INPUTS AND OUTPUTS

    • Universal RF connector 75 Ω
    • HDMI output
    • IP input for remote control
    • Analogue Video/Audio input
    • 2xUSB for data tranferring

     FUNCTIONS

    • 4K Frame grabber
    • Merogram
    • Spectrogram
    • Signal monitoring
    • Remote control (webControl)
    • MER by carrier
    • Video/Audio Streaming
    • SCAN + TILT
    • Shoulder attenuation
    • Constellation diagram
    • LTE ingress test
    • Dynamic echoes analysis
    • StealthID (instant identification of tuning parameters)
    • PLS (Physical Layer Scrambling)
    • Ultra fast spectrum analyzer (70 ms sweep time)
    • MAX and MIN hold
    • FM RDS radio measurement and decoding
    • Screenshots and Datalogger for measurement reports
    • Beacon-Flyaways for SNG & VSAT
    • Wideband LNB
    • WiFi 2.4 GHz
    • LTE 1.8 GHz
    • OTT
    • Service recording
    • Field strength measurement
    • Task planner
    RESOLUTION BANDWIDTHS
    • 100, 200 kHz
    • 1 MHz



    OPTIONS



    • GPS Coverage Analysis
    • OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
    • WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
    PC CONNECTION (via ethernet interface)
    • NetUpdate 4 (free software)
    • Free and automatic firmware updates
    • Remote control (webserver)
    • User customised channel plans
    • Measurement reports and screenshots
