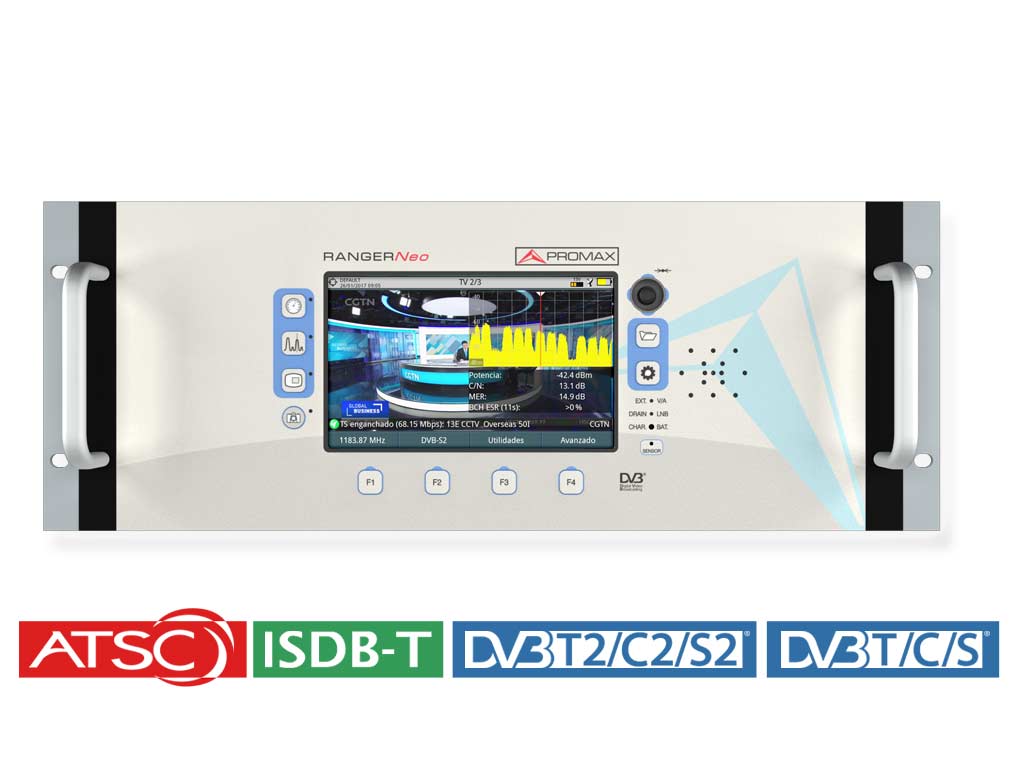

RANGERNeo + ATSC Rack: ADVANCED Multifunction TV & Satellite Analyser (ATSC North America). Rack version
RANGERNeo + ATSC Rack: ADVANCED Multifunction TV & Satellite Analyser (ATSC North America). Rack version
The RANGER Neo + ATSC is an advanced Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.
They are intended to help expert installers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.
HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo + ATSC field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product (1600 gr) ideal for field work.
- ATSC, DVB-C2/S2, DSS, Dolby Digital Plus
- Super spectrum analyzer with Triple split display
- Touch screen
- HEVC H.265 decoding
- Wide band LNB compatibility
- Wi-Fi analyzer
- webControl remote control
- Spectrogram
- Fibre optics and GPS options
- More than 4 hours battery time
SPECIFICATIONS RANGER Neo Rack 3 | |
RACK ASSEMBLY 19” 4U |
|
OPERATION MODES |
|
DIGITAL STANDARDS |
|
VIDEO CODECS |
|
AUDIO CODECS |
|
INPUTS AND OUTPUTS |
|
FUNCTIONS |
|
RESOLUTION BANDWIDTHS |
|
OPTIONS
|
|
PC CONNECTION (via ethernet interface) |
|
