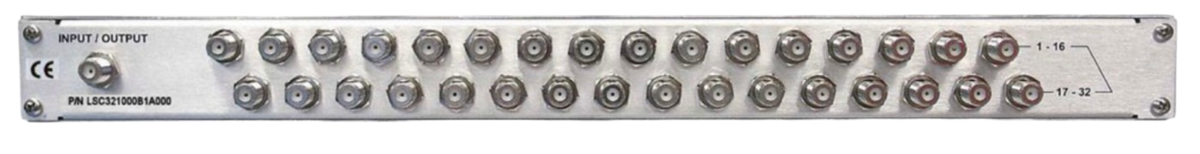

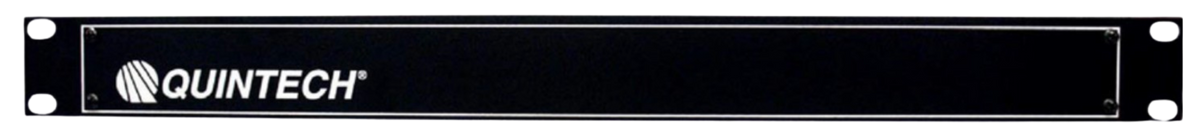

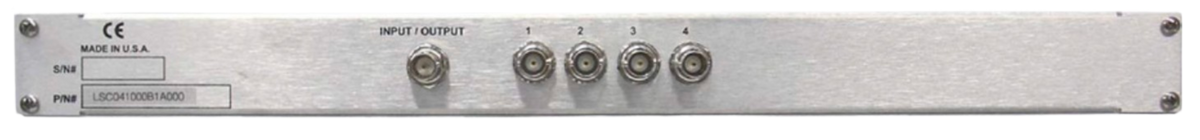

Quintech LSC 1000P Series Passive Broadband Splitter/Combiner
Quintech LSC 1000P Series Passive Broadband Splitter/Combiner
Couldn't load pickup availability
The Quintech LSC 1000P Series Passive Broadband Splitter/Combiner is a professional RF signal distribution solution designed to split or combine broadband signals across a wide frequency range of 5–1000 MHz. Manufactured by Quintech Electronics & Communications, this series uses proprietary microstrip and surface-mount technology (SMT) to deliver consistent performance, controlled signal loss, and reliable impedance matching across its input and output ports. With configurations ranging from 4-way to 64-way, the LSC 1000P Series offers flexible signal distribution options for cable television, broadband networks, and professional RF installations.
Key Features
- Wide Frequency Coverage: Operates across the 5–1000 MHz broadband RF frequency range.
- Multiple Configurations: Available in 4×1, 8×1, 16×1, 32×1, 48×1, and 64×1 configurations.
- Passive RF Design: Supports RF signal splitting and combining without requiring active amplification.
- Reliable Signal Performance: Proprietary microstrip and SMT technology supports consistent frequency response, impedance matching, and insertion-loss performance.
- Flexible Connector Options: F-type connectors are standard, with optional BNC connectors.
- Multiple Impedance Options: Available in 75 Ω and 50 Ω configurations.
- Rack-Mount Installation: Standard 1RU models are available, while the 48-way and 64-way configurations use a 3RU enclosure.
- Scalable Distribution: Multiple port configurations help accommodate different network sizes and signal-routing requirements.
Applications
The Quintech LSC 1000P Series is suitable for broadband RF distribution systems that require signals to be divided among multiple destinations or combined through a compatible passive network. Potential applications include cable television infrastructure, broadband distribution networks, RF test facilities, and professional signal-routing installations.
Its range of configurations allows system integrators to select a model based on the number of required connections. Smaller configurations are suitable for compact installations, while 48-way and 64-way models can support larger distribution systems. Selecting the appropriate impedance and connector type is essential for compatibility with connected equipment and to maintain the intended RF performance.
Technical Specifications
|
Specification |
LSC04 1000P |
LSC08 1000P |
LSC16 1000P |
LSC32 1000P |
LSC48 1000P |
LSC64 1000P |
|---|---|---|---|---|---|---|
|
Configuration |
4×1 |
8×1 |
16×1 |
32×1 |
48×1 |
64×1 |
|
Operating Frequency |
5–1000 MHz |
5–1000 MHz |
5–1000 MHz |
5–1000 MHz |
5–1000 MHz |
5–1000 MHz |
|
RF Connectors |
F-type; optional BNC |
F-type; optional BNC |
F-type; optional BNC |
F-type; optional BNC |
F-type; optional BNC |
F-type; optional BNC |
|
Impedance |
75 Ω / 50 Ω |
75 Ω / 50 Ω |
75 Ω / 50 Ω |
75 Ω / 50 Ω |
75 Ω / 50 Ω |
75 Ω / 50 Ω |
|
Frequency Response |
±2 dB |
±2 dB |
±2.5 dB |
±2.5 dB |
±2 dB |
±2.5 dB |
|
Insertion Loss |
7.5 ± 1 dB |
11.5 ± 2 dB |
15 ± 2.5 dB |
18 ± 2.5 dB |
21 ± 2 dB |
23 ± 2.5 dB |
|
Return Loss |
14 dB |
12 dB |
14 dB |
12 dB |
13 dB |
12 dB |
|
Isolation |
16 dB |
16 dB |
20 dB |
20 dB |
16 dB |
20 dB |
|
Rack Height |
1RU |
1RU |
1RU |
1RU |
3RU |
3RU |
|
Dimensions |
1.75″ H × 19″ W × 6.5″ D |
1.75″ H × 19″ W × 6.5″ D |
1.75″ H × 19″ W × 6.5″ D |
1.75″ H × 19″ W × 6.5″ D |
5.25″ H × 19″ W × 20″ D |
5.25″ H × 19″ W × 20″ D |
|
Gross Weight |
3.5 lb |
3.5 lb |
4 lb |
4.5 lb |
12 lb |
14 lb |
|
Net Weight |
2.5 lb |
2.5 lb |
3 lb |
3.5 lb |
9 lb |
9.62 lb |
Specifications may vary depending on connector type and configuration. Consult the individual model specification sheet for exact performance data and available options.
