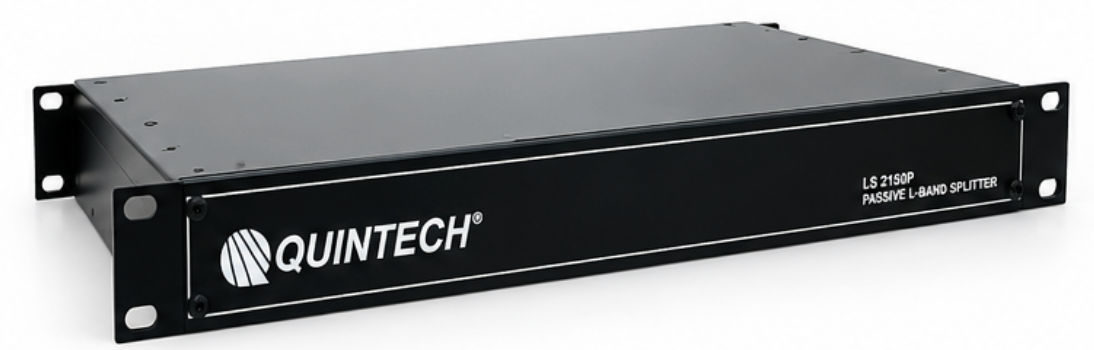

The Quintech LS 2150P Series Passive L-Band Splitter is a professional RF signal distribution solution designed to split L-band signals across multiple destinations in satellite communication and broadcast systems. Supporting frequencies from 950 to 2150 MHz, this series offers configurations ranging from 2 to 32 output ports, making it suitable for applications that require reliable signal distribution to multiple receivers, integrated receiver decoders (IRDs), and other compatible satellite equipment.

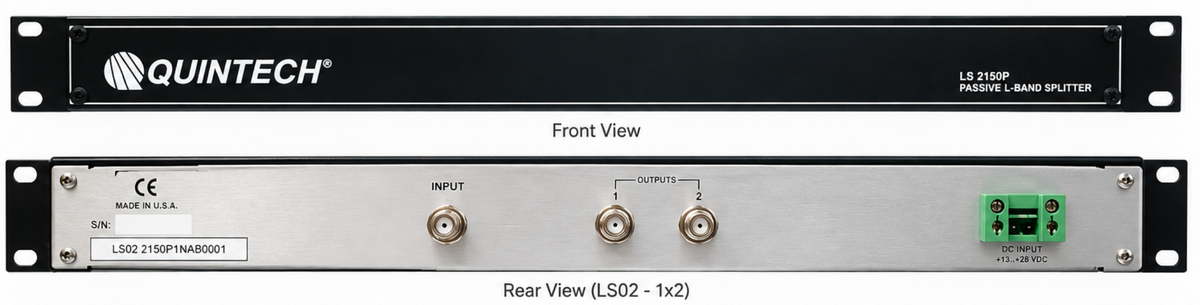

Designed for professional rack-mounted installations, the LS 2150P Series features a microstrip design, centralized cable management, and power and 10 MHz reference signal pass-through on Port 1. Its larger port-count configurations can reduce the need for cascading multiple splitters, helping simplify system architecture and improve installation efficiency.

Key Features

• Wide L-Band Frequency Range: Supports RF signals from 950 to 2150 MHz.

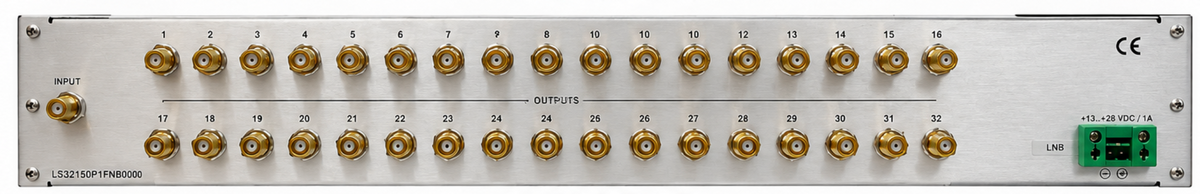

• Multiple Port Configurations: Available in 1×2, 1×4, 1×8, 1×12, 1×16, 1×24, and 1×32 configurations.
• Power and 10 MHz Pass-Through: Port 1 supports DC power and 10 MHz reference signal pass-through.
• Professional Rack-Mount Design: Centralized installation helps organize cabling and simplify equipment management.
• Microstrip Technology: Designed to provide improved performance and reliability.
• Reduced Cascading Requirements: Higher-port-count models can distribute signals to more destinations without cascading multiple splitters.
• Flexible RF Connectivity: F-type and BNC connector options are available, with 75-ohm and 50-ohm impedance configurations.
• Improved Cable Management: Easier cable routing and identification can reduce installation complexity and frequent manual connector handling.

Applications

The Quintech LS 2150P Series is suitable for satellite ground stations, broadcast facilities, teleport infrastructure, and professional RF distribution systems. It can distribute a single compatible L-band input signal to multiple connected devices, including satellite receivers and IRDs.

Typical applications include:

• Satellite signal distribution to multiple receivers.
• Broadcast and video distribution infrastructure.
• Teleport and satellite ground-station installations.
• Centralized RF distribution in equipment racks.
• Systems requiring DC power or a 10 MHz reference signal to pass through Port 1.

Choosing the appropriate port count can help simplify the distribution network, reduce cabling complexity, and avoid unnecessary cascading. The correct model should be selected according to the number of destinations, connector requirements, impedance, and signal-loss budget.

Technical Specifications

Specifications may vary according to connector type. Refer to the individual model specification sheet for exact performance data. AC adapters are sold separately.

Why Choose the Quintech LS 2150P Series from VSATplus?

The Quintech LS 2150P Series Passive L-Band Splitter provides a practical solution for distributing satellite RF signals across multiple destinations while maintaining organized, rack-mounted infrastructure. With seven available port configurations, support for power and 10 MHz pass-through on Port 1, and flexible connector and impedance options, the series can accommodate a variety of professional satellite communication and broadcast requirements.

VSATplus supplies professional satellite communication equipment and can help you select the appropriate splitter configuration for your installation.

Request a Quote from VSATplus today for pricing, availability, and assistance choosing the right Quintech LS 2150P Series model for your RF distribution system.
