The Quintech LS 1000A Series Active Broadband Splitter is a professional RF signal distribution solution designed to distribute broadband signals from a single input to multiple outputs across the 5–1000 MHz frequency range. Manufactured by Quintech Electronics & Communications, this series uses proprietary technology and a microstrip design to provide consistent signal performance, reliable impedance matching, and low insertion loss. With configurations ranging from 16 to 64 outputs, the LS 1000A Series is ideal for cable television systems, broadband distribution networks, and professional RF installations requiring efficient downstream signal distribution.

Designed for rack-mounted installations, the LS 1000A Series features an active, amplified architecture intended to provide near-zero insertion loss. Its larger port-count configurations can reduce the need for cascading multiple splitters, helping simplify system design and improve cable management. Custom configurations are also available to accommodate specific installation requirements.

Key Features

• Wide Frequency Coverage: Supports broadband RF signals from 5 to 1000 MHz.
• Active, Amplified Design: Provides approximately zero insertion loss to simplify RF distribution design.
• Multiple Output Configurations: Available in 1×16, 1×32, 1×48, and 1×64 configurations.
• Consistent Signal Performance: Designed to meet defined signal-level, impedance-matching, and loss specifications.
• Flexible RF Connectivity: Supports F-type and BNC 75 Ω connector options.
• Rack-Mount Installation: Available in 1RU, 2RU, and 3RU configurations, depending on the model.
• Improved Cable Management: Centralised rack mounting makes cable routing and identification easier.
• Reduced Cascading Requirements: Higher-port-count models can distribute signals to more destinations without cascading multiple splitters.
• Flexible Power Options: Supports 18–24 VDC through a 2-pin quick-connect interface, with 100–240 VAC, 50/60 Hz power adapter options.

Applications

The Quintech LS 1000A Series is designed for downstream broadband signal distribution, making it suitable for cable television infrastructure, broadband networks, and professional RF distribution facilities. It can distribute a cable feed to multiple individual drops, allowing one incoming signal to serve numerous connected destinations.

As illustrated in the manufacturer’s datasheet, the splitter receives a signal from the cable system and distributes it to individual room drops. The range of output configurations enables system integrators to choose the appropriate model according to the number of destinations and available rack space.

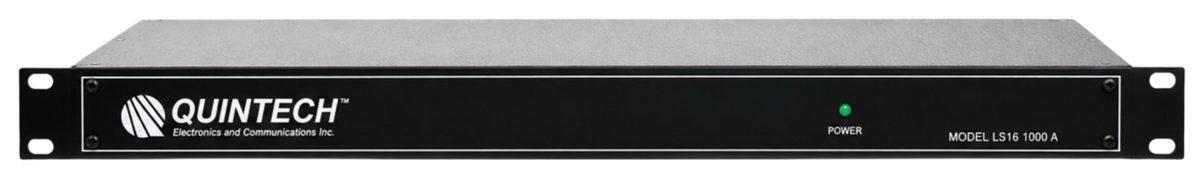

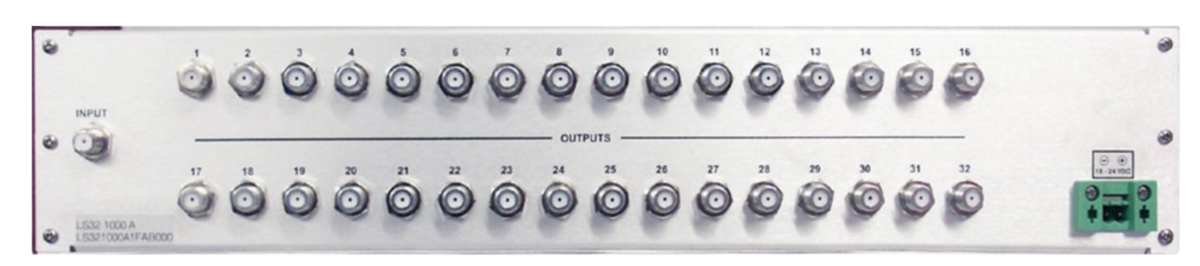

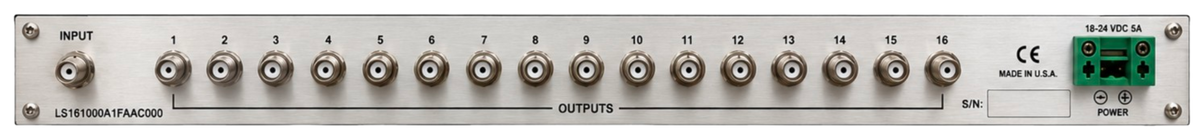

The LS16 1000A is suitable for installations requiring 16 outputs, while the LS32, LS48, and LS64 models support larger distribution networks.

Technical Specifications

Specifications may vary depending on connector type. Refer to the individual model’s specification sheet for exact performance data and available power options.
