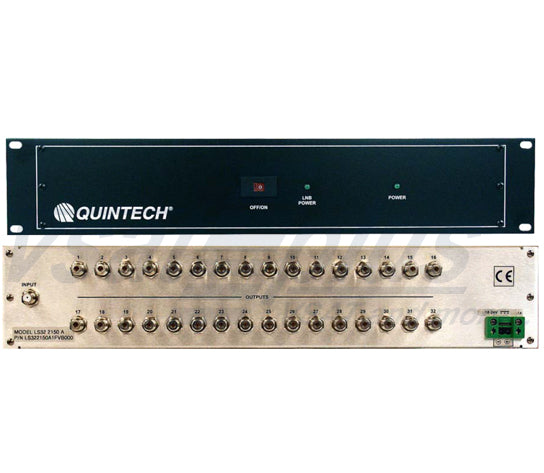

Quintech 32-Way Active Splitter 950-2150 MHz (LS322150A1FVB000)
Quintech 32-Way Active Splitter 950-2150 MHz (LS322150A1FVB000)
SKU: LS322150A1FVB000
Couldn't load pickup availability
The LS322150A1FVB000 is a commercial quality 32-way splitter that meets strict level and match specifications achieved through the use of Quintechs proprietary microstrip and SMT technology. It operates over the 950-2150 MHz frequency range and permits signal splitting with zero loss, eliminating the need for external distribution amplifiers. LS322150A1FVB000 provides LNB DC power insertion that can be switched on or off via the front panel mounted slide switch.
Note: This item requires this power adapter sold separately.
Quintech items are built to order and take approximately 2-3 weeks before shipping. As such, they are non-cancellable, non-returnable. All sales final.
|
Parameter |
Specification |
|
Frequency: |
950-2150 MHz |
|
RF Connectors: |
Type "F", 75 Ohm |
|
Power Requirements: |
18-24 VDC via 2-pin quick connect barrier strip |
|
LNB Power: |
18 VDC |
|
Power Consumption: |
12 W (excluding LNB power requirement) |
|
Mechanical: |
1 RU (1.75"H x 19"W x 6.5"D) |
|
Item not returnable and order cannot be canceled once placed. |
|
|
Impedance: |
75 Ω |
|
P1dB: |
-10 dBm |
|
Insertion Loss: |
0 +/- 2 dB |
|
Frequency Response: |
+/- 2 dB |
|
Isolation: |
18 dB |
|
Input Return Loss: |
12 dB |
|
Output Return Loss: |
12 dB |
|
Noise Figure: |
12 dB |
