Promax SATHUNTER+: DVB-S/S2 and DSS Satellite finder

Promax SATHUNTER+: DVB-S/S2 and DSS Satellite finder

Request for a quote

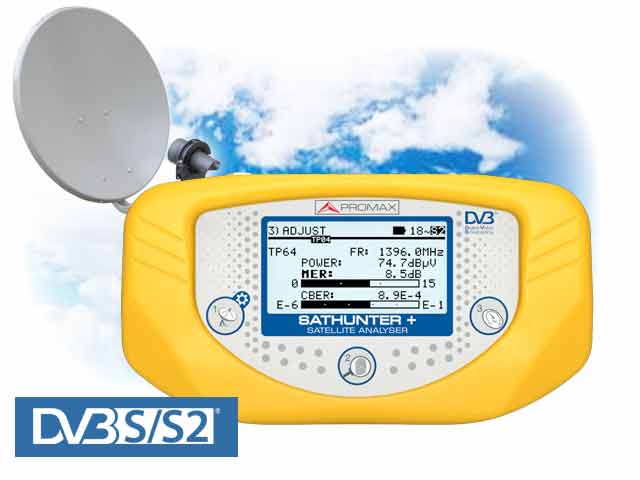

The SATHUNTER+ is a dish aligner designed for the installation of Direct To Home (DVB-S/S2 and DSS) satellite reception systems. It is fully automatic and very easy to use. Just turn the dish and the satellite finder will show up the identification of the selected satellite when it is detected. The instrument is actually reading the information transmitted by the satellite and displays its orbital position and the service list.

SPECIFICATIONS SATHUNTER
DIGITAL STANDARDS
  • DVB-T, DVB-T2
  • DVB-C, DVB-C2
  • DVB-S, DVB-S2, DVB-S2 multistream
  • DSS
VIDEO CODECS
  • MPEG-2, MPEG-4 H.264
AUDIO CODECS
  • MPEG-1, MPEG-2, HE-AAC

INPUTS AND OUTPUTS

  • Universal RF connector 75 Ω
  • Analogue Video/Audio input
  • USB for data tranferring

 FUNCTIONS

  • Constellation diagram
  • LTE
  • Dynamic echoes analysis
  • StealthID (instant identification of tuning parameters)
  • PLS (Physical Layer Scrambling)
  • Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold
  • FM radio measurements and decoding
  • Screenshots and Datalogger for measurement reports
  • DVB-S2 multistream
  • Field strength
  • Task planner
PC CONNECTION (via ethernet interface)
  • NetUpdate 4 (free software)
  • Free and automatic firmware updates
  • User customised channel plans
  • Measurement reports and screenshots
