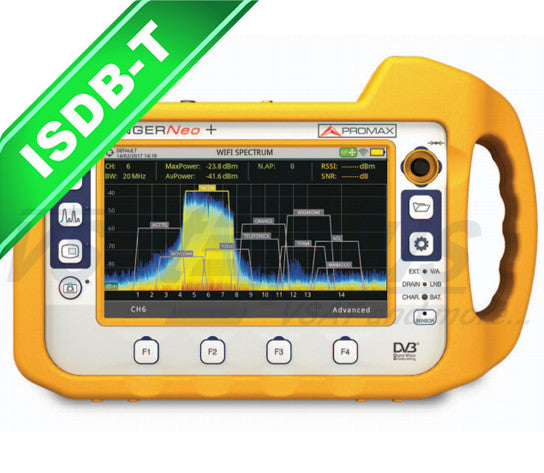

Promax RANGERNeo + ISDB-T: Advanced Multifunction TV & Satellite Analyser
Promax RANGERNeo + ISDB-T: Advanced Multifunction TV & Satellite Analyser
Promax RANGERNeo + ISDB-T: Advanced Multifunction TV & Satellite Analyser
Spectrum Analyzer
The RANGERNeo + ISDB-T/Tb is a universal field strength meter that covers a comprehensive mix of broadcast standards around the globe. The latest developments in broadcast technology such as ISDB-T/Tb, DSS, QAM Annex B (DVB-C/S/S2 also included) with MPEG-2 as...
USD 4,680.00
- SKU::
- Category: Accessories, All Products, Featured products, Promax Electronics, Spectrum Analyzer
The RANGERNeo + ISDB-T/Tb is a universal field strength meter that covers a comprehensive mix of broadcast standards around the globe. The latest developments in broadcast technology such as ISDB-T/Tb, DSS, QAM Annex B (DVB-C/S/S2 also included) with MPEG-2 as well as MPEG-4 video are managed effortlessly within the product.
One of the most noticeable and stunning features on the new RANGERNeo + ISDB-T/Tb product is the ultra fast spectrum analyser. As soon as you use the analyser you will experience this outstanding feature as one of the major changes we have adopted in the new product allowing you to sweep faster and more accurately.
The introduction of the latest technology within the product allows you to display multiple screens either overlapped together or in a 7” split screen format.
| SPECIFICATIONS RANGERNeo + ISDB-T | |
| DIGITAL STANDARDS | - ISDB-T/Tb - DVB-C, QAM Annex B/C - DVB-S, DVB-S2, DVB-S2 multistream, DSS |
| DOLBY DIGITAL PLUS | Included |
| CONNECTIVITY | - Universal RF input - Analog audio/video input and output - USB interface |
| FUNCTIONS | - Merogram and Spectrogram - Constellation diagram for all DVB standards - LTE filters - Dynamic echoes analysis - StealthID (instant signal identification) - DVB-S2 multistream - PLS (physical layer scrambling) - Ultra fast spectrum analyser (90 ms sweep time) with peak hold - FM RDS radio measurements - Signal monitoring - Field strength - Task planner - H.265 detection |
| OPTIONS | - Optical fibre measurements - 3 GHz band extender |
| OPTICAL FIBRE (optional) | - Integrated optical-to-RF converter - Integrated selective optical power meter |
| PC CONNECTION (via USB interface) | - NetUpdate 4 free software - Free and automatic firmware updates - Datalogger data download - Channel tables customization - Measurement reports |
