Promax RANGERNeo 2 ISDB-T : Professional TV & Satellite Analyser
Promax RANGERNeo 2 ISDB-T : Professional TV & Satellite Analyser
Spectrum Analyzer
The RANGERNeo 2 ISDB-T features a new 7” touch screen with excellent brightness and superior image sharpness that can also be used wearing gloves. The hybrid operation of the RANGERNeo 2 ISDB-T allows the equipment to be fully operated using...
USD 6,630.00
- SKU::
- Category: Accessories, All Products, Featured products, New Arrivals, Promax Electronics, Spectrum Analyzer

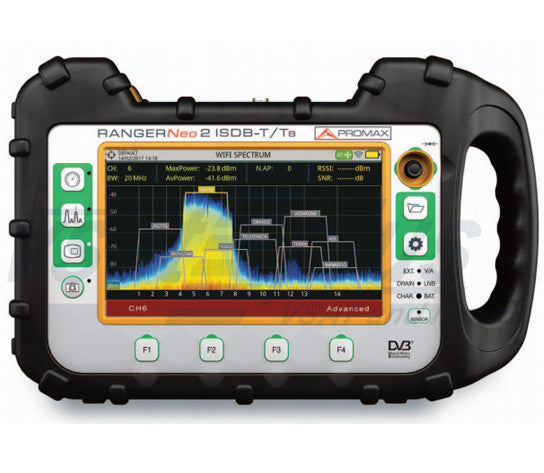

The RANGERNeo 2 ISDB-T features a new 7” touch screen with excellent brightness and superior image sharpness that can also be used wearing gloves.
The hybrid operation of the RANGERNeo 2 ISDB-T allows the equipment to be fully operated using both the touch panel and the conventional keyboard.
RANGERNeo 2 ISDB-T features all RANGERNeo + ISDB-T/Tb functions plus IPTV input, Common Interface (CAM) for encrypted channels, HDMI interface and TS-ASI input/output.
Optical measurements and 3 GHz band extension can also be included as an option, thus converting the RANGERNeo 2 ISDB-T in an all-purpose field strength meter.
| SPECIFICATIONS RANGERNeo 2 ISDB-T | |
| OPERATION MODES | Hybrid operation: 7” touch screen or conventional buttons |
| DIGITAL STANDARDS | - ISDB-T/Tb - DVB-C, QAM Annex B/C - DVB-S, DVB-S2, DVB-S2 multistream, DSS |
| DOLBY DIGITAL PLUS | Included |
| CONNECTIVITY | - Universal RF input - TS-ASI input and output - IPTV input - HDMI output - Analog audio/video input and output - Common Interface slot (CAM modules) - USB interface |
| FUNCTIONS | - Merogram and Spectrogram - Constellation diagram for all DVB standards - LTE filters - Dynamic echoes analysis - StealthID (instant signal identification) - DVB-S2 multistream - PLS (physical layer scrambling) - Ultra fast spectrum analyser (90 ms sweep time) with peak hold - FM RDS radio measurements - Signal monitoring - Field strength - Task planner - H.265 detection |
| OPTIONS | - Optical fibre measurements - 3 GHz band extender |
| OPTICAL FIBRE (optional) | - Integrated optical-to-RF converter - Integrated selective optical power meter |
| ASI-TS INPUT AND OUTPUT | - Real-time transport stream analysis function |
| IPTV INPUT | - Ethernet 100/1000 Mbps - RJ45 connector - UDP or RTP/UDP protocols - MULTICAST / IGMP v2 transmission methods - Payload: from 1 to 7 MPEG-2 packets |
| PC CONNECTION (via USB interface) | - NetUpdate 4 free software - Free and automatic firmware updates - Datalogger data download - Channel tables customization - Measurement reports |
