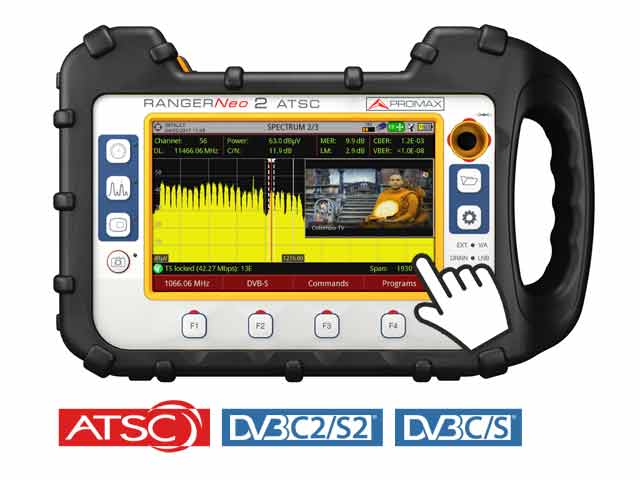

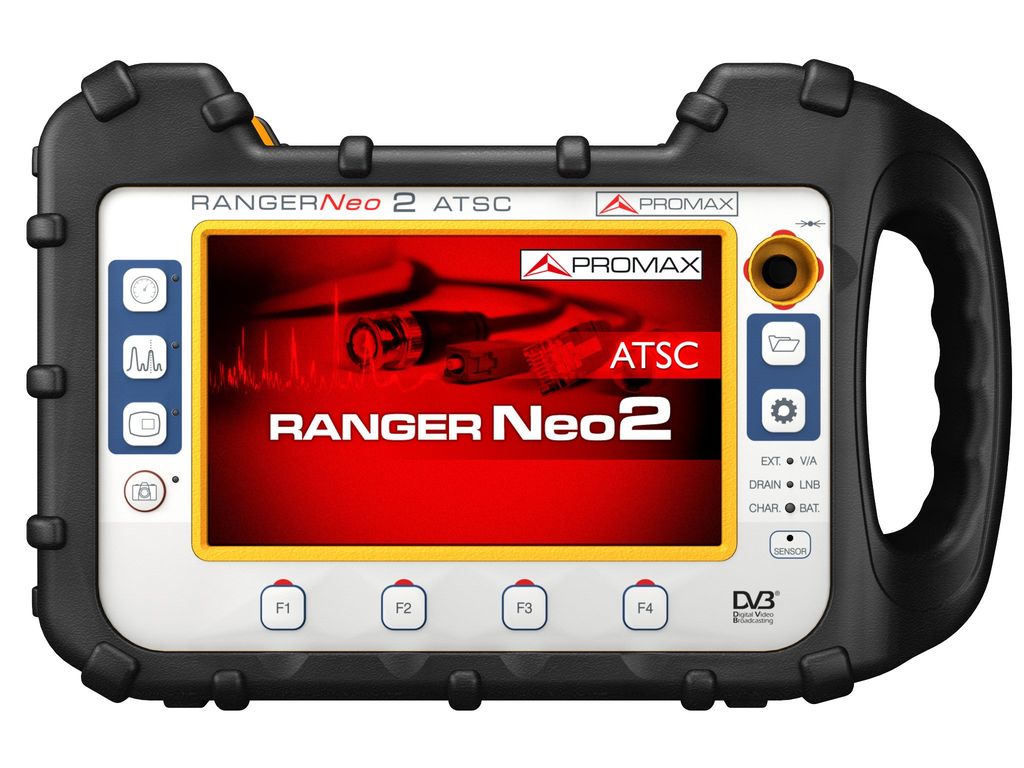

Promax RANGERNeo 2 ATSC: TV Signal & Spectrum analyzer (professional class)
Promax RANGERNeo 2 ATSC: TV Signal & Spectrum analyzer (professional class)
Couldn't load pickup availability
The RANGER Neo 2 ATSC is a professional Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.
They are intended to help expert installers and broadcast engineers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.
HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo 2 ATSC field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product ideal for field work.
| SPECIFICATIONS RANGERNeo 2 ATSC | |
| OPERATION MODES | - Hybrid operation: 7” touch screen or conventional buttons |
| DIGITAL STANDARDS | - ATSC, TS - DVB-C, QAM Annex B - DVB-S, DVB-S2, DVB-S2 multistream, DSS, ACM/VCM - MPEG-TS |
| VIDEO CODECS | - MPEG-2, MPEG-4 H.264, HEVC H.265 |
| AUDIO CODECS | - MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus |

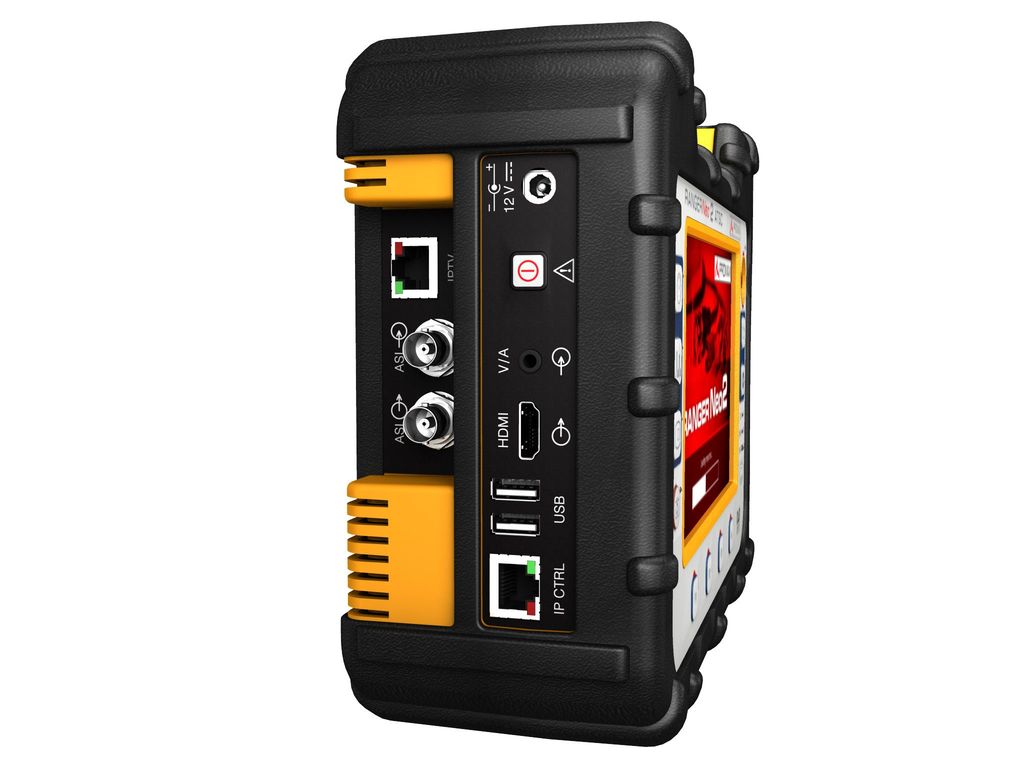

| INPUTS AND OUTPUTS |

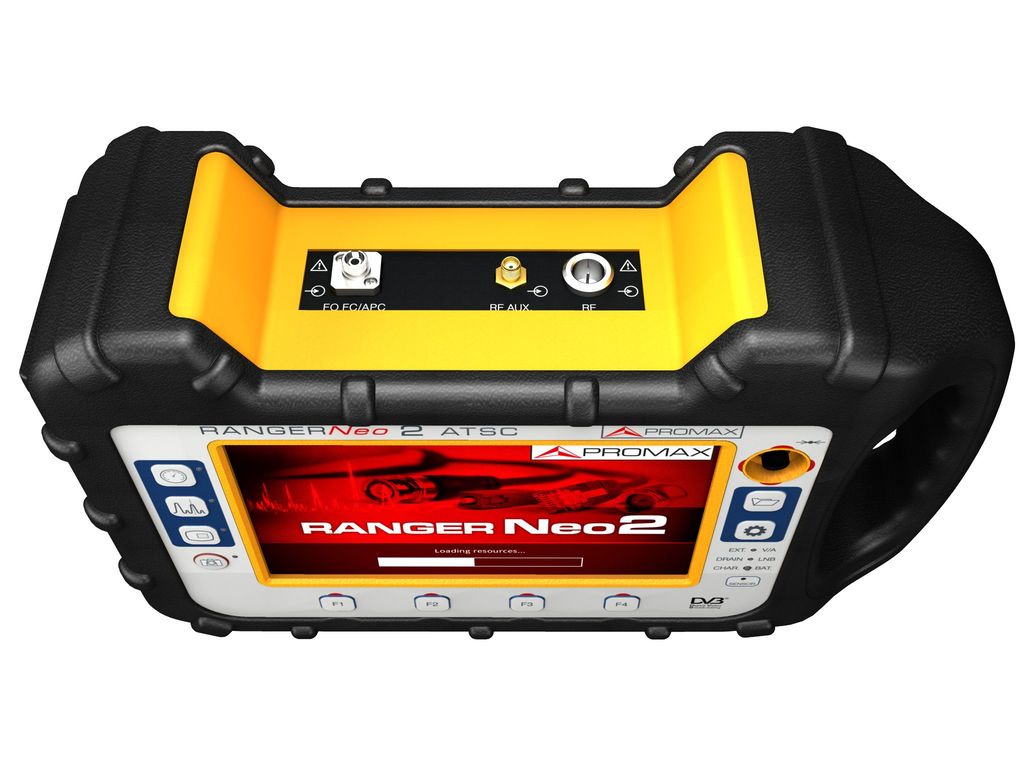

- Universal RF connector 75 Ω |
|
FUNCTIONS |
- Spectrogram - Constellation diagram - LTE - Audio/Video streaming - SCAN + TILT - StealthID (instant identification of tuning parameters) - PLS (Physical Layer Scrambling) - Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold - 4K Frame grabber - FM RDS radio measurements and decoding - Screenshots and Datalogger for measurement reports - Wideband LNB - WiFi 2.4 GHz - LTE 1.8 GHz - OTT - Service Recording - DVB-S2 multistream - Signal monitoring - Field strength - Task planner - TS Recording - TS Analysis - webControl - IPTV multicast - Shoulder Attenuation - Beacon-Flyaways SNG and VSAT - PSIP - CC analysis |
|
RESOLUTION BANDWIDTHS |
- 2, 10, 20, 30, 40, 100, 200 kHz |
| OPTIONS | - DAB, DAB+ - Advanced DAB/DAB+ analyzer - GPS Coverage Analysis - Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm - Optical Power Meter + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input - WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input |
| PC CONNECTION (via Ethernet interface) | - NetUpdate 4 (free software) - Free and automatic firmware updates - Remote control (webControl) - User customised channel plans - Measurement reports and screenshots - Audio/Video streamin |
