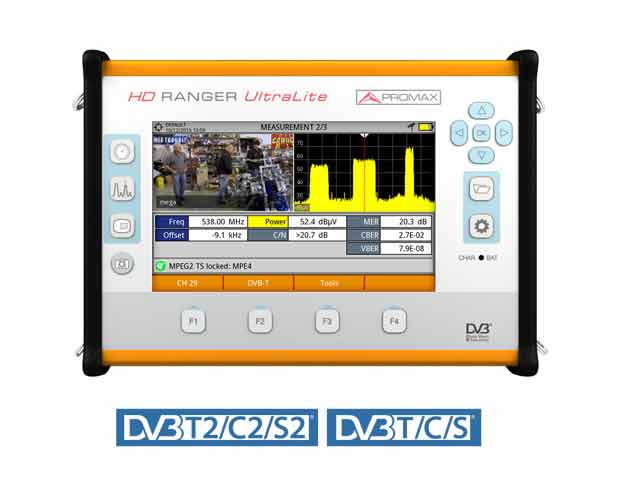

Promax HD RANGER UltraLite : Tablet-sized TV signal and spectrum analyzer

Promax HD RANGER UltraLite : Tablet-sized TV signal and spectrum analyzer

Request for a quote

The HD RANGER UltraLite is a universal TV signal strength meter that covers a comprehensive mix of broadcast standards around the globe.

The latest developments in broadcast technology such as DVB-T/T2, DVB-C/C2, DVB-S/S2 with MPEG-2 as well as MPEG-4 video are managed effortlessly by the product.

The HD RANGER UltraLite is perfect for satellite installers: Built-in DVB-S and DVB-S2 satellite finder, digital decoder and signal analysis.

The introduction of the latest technology in the product allows you to display multiple screens either overlapped together or in a split screen format.

SPECIFICATIONS RANGER UltraLite
DIGITAL STANDARDS
  • DVB-T, DVB-T2, DVB-T2 lite
  • DVB-C, DVB-C2
  • DVB-S, DVB-S2, DVB-S2 multistream
  • DSS
VIDEO CODECS
  • MPEG-2, MPEG-4 H.264
AUDIO CODECS
  • MPEG-1, MPEG-2, HE-AAC

INPUTS AND OUTPUTS
  • Universal RF connector 75 Ω
  • Analogue Video/Audio input
  • USB for data tranferring

 FUNCTIONS
  • Constellation diagram
  • LTE
  • Dynamic echoes analysis
  • StealthID (instant identification of tuning parameters)
  • PLS (Physical Layer Scrambling)
  • Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold
  • FM radio measurements and decoding
  • Screenshots and Datalogger for measurement reports
  • Service recording
  • LTE 1.8 GHz
  • DVB-S2 multistream
  • Field strength
  • Task planner
PC CONNECTION (via ethernet interface)
  • NetUpdate 4 (free software)
  • Free and automatic firmware updates
  • User customised channel plans
  • Measurement reports and screenshots

View full details
