Promax HD Ranger Eco: TV signal and spectrum analyzer
Promax HD Ranger Eco: TV signal and spectrum analyzer
Sale
Sold out
Couldn't load pickup availability

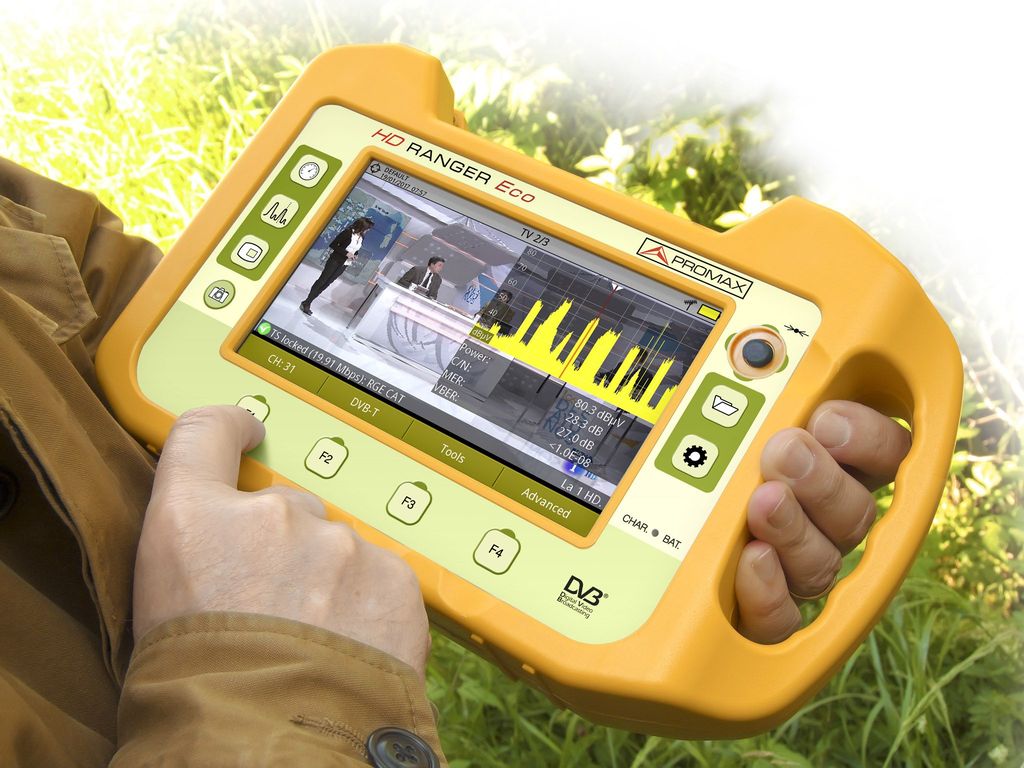

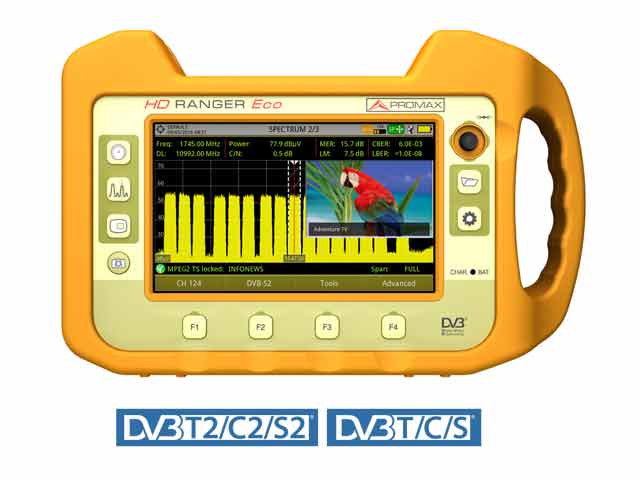

The HD RANGER Eco is the most affordable of our entry-level Field Strength Meters and Spectrum Analyzers. It is ideal for those installers who mostly do classic installation work involving DVB-T2/C2/S2, DVB-T/C/S with MPEG-2 as well as MPEG-4 video. Powerful and fast spectrum analyzer well beyond that of other analyzers in its class.
| SPECIFICATIONS HD RANGER Eco | |
| DIGITAL STANDARDS | - DVB-T, DVB-T2 - DVB-C, DVB-C2 - DVB-S, DVB-S2, DVB-S2 multistream - DSS |
|
VIDEO CODECS |
- MPEG-2, MPEG-4 H.264 |
| AUDIO CODECS | - MPEG-1, MPEG-2, HE-AAC |

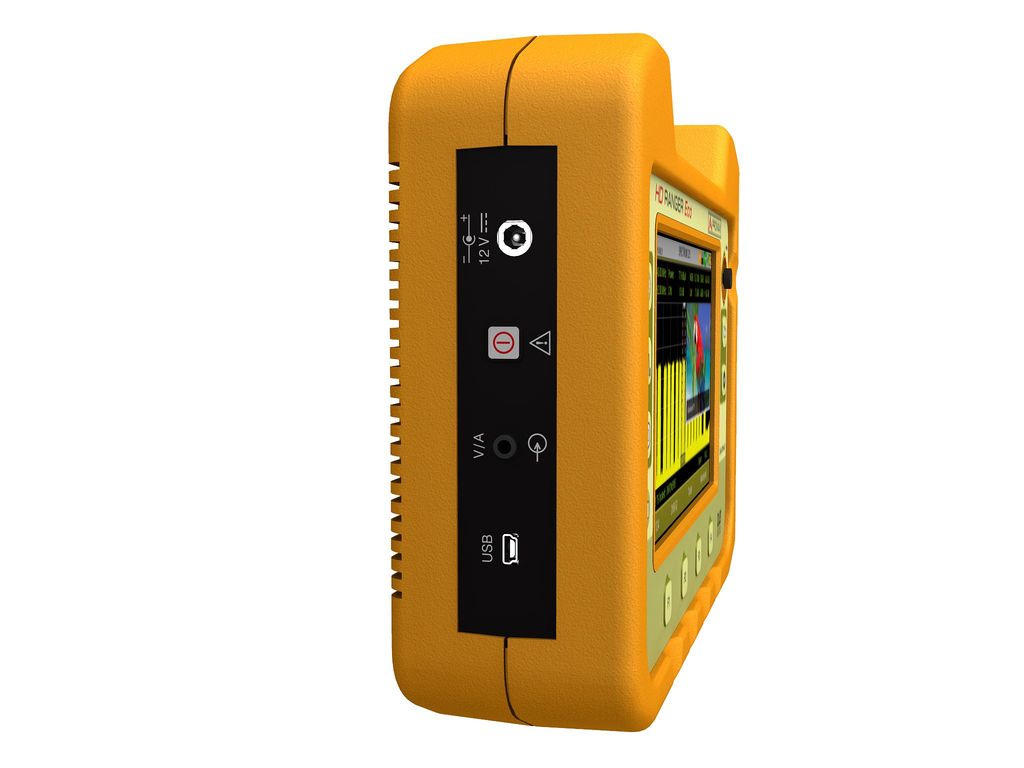

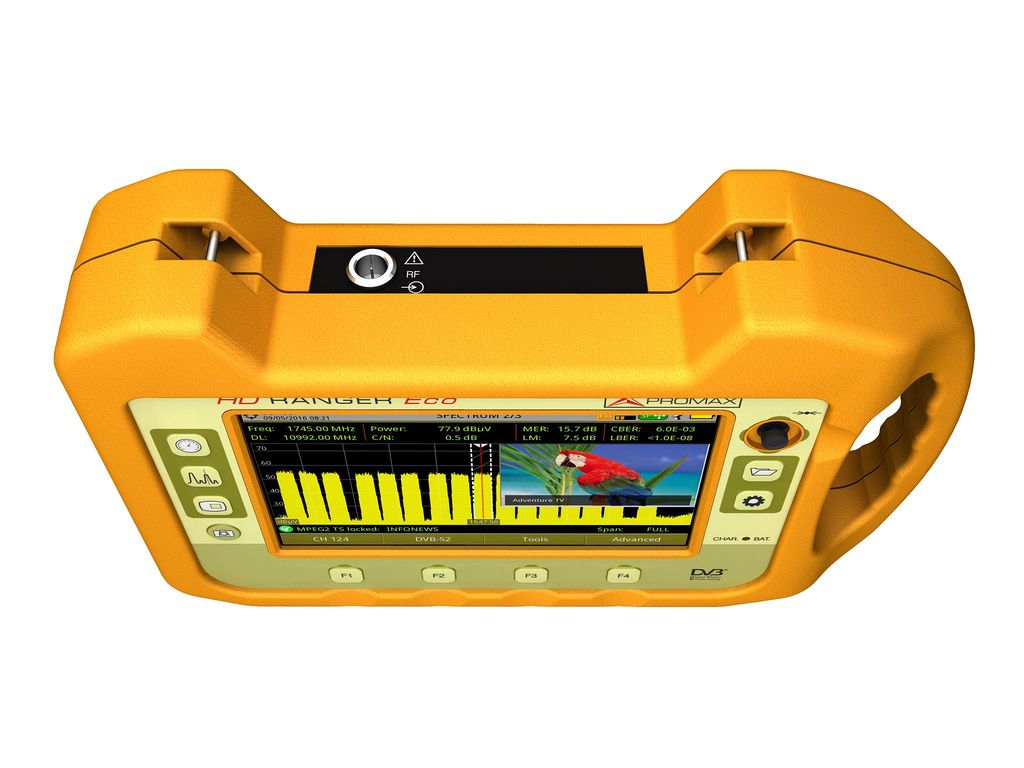

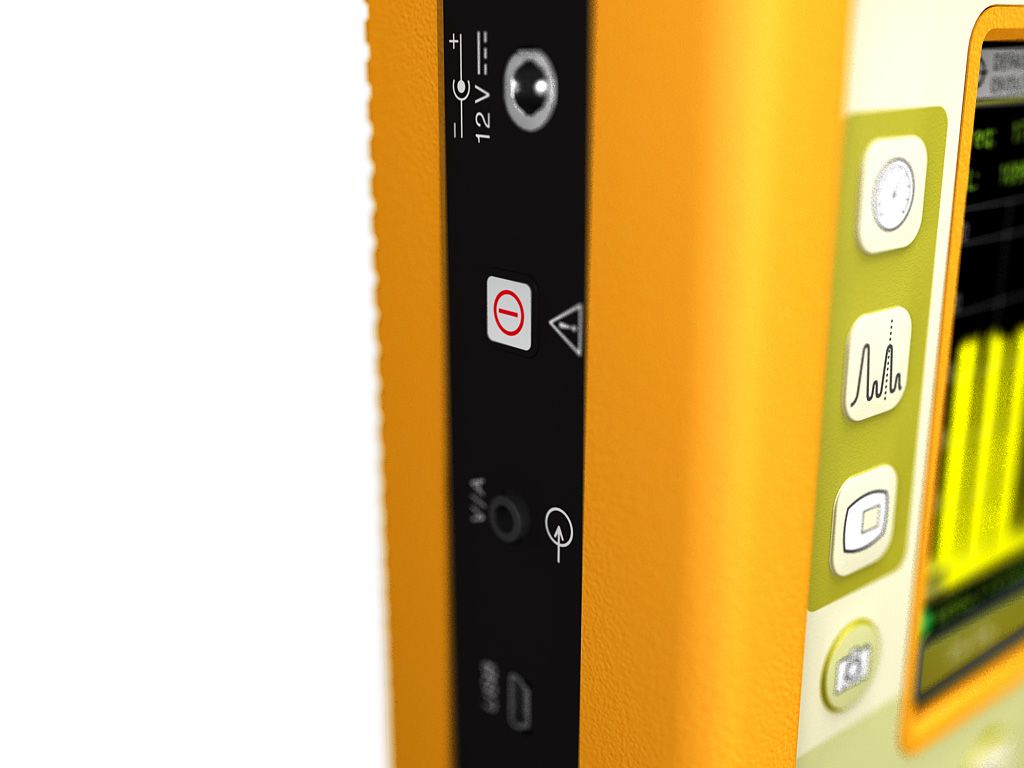

| INPUTS AND OUTPUTS | - Universal RF connector 75 Ω - Analogue Video/Audio input - USB for data transferring |
| FUNCTIONS | - Constellation diagram - LTE - Dynamic echoes analysis - StealthID (instant identification of tuning parameters) - PLS (Physical Layer Scrambling) - Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold - FM radio measurements and decoding - Screenshots and Datalogger for measurement reports - DVB-S2 multistream - Field strength - Task planner |
| PC CONNECTION (via USB interface) | - NetUpdate 4 (free software) - Free and automatic firmware updates - User customised channel plans - Measurement reports and screenshots |
