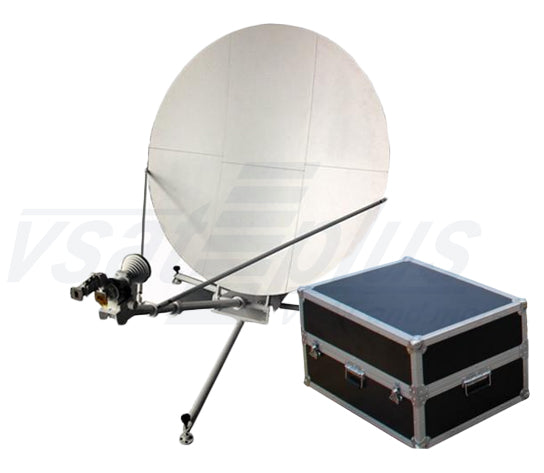

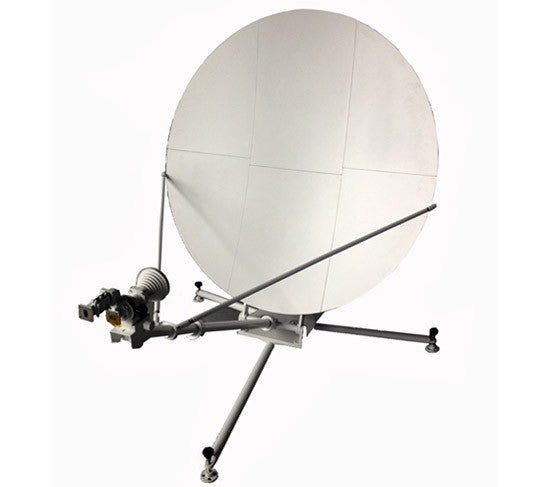

Probecom 1.2M Ku-Band Carbon Flyaway Manual Manpack Antenna

Probecom 1.2M Ku-Band Carbon Flyaway Manual Manpack Antenna

Antennas

Applications: Sudden public events and all kinds of disasters on-site information gathering Disaster relief Public security, military, government, oil, water conservancy, electricity, finance and other important sectors of the country The remote areas and the vast rural areas out of...

USD 6,777.00
  • Category: All Products, Antennas, Featured products, On-sale Products, Probecom Antennas, Quick Deploy/Flyaway Antennas
Applications:
  • Sudden public events and all kinds of disasters on-site information gathering
  • Disaster relief
  • Public security, military, government, oil, water conservancy, electricity, finance and other important sectors of the country
  • The remote areas and the vast rural areas out of coverage
  • Field operations, exploration, military police and news media
Components
  • Single Offset Antenna
  • Azimuth & elevation turntable

Features
  • Carbon fiber antenna reflector with light weight, high precision and high efficiency, corrosion resistance and other characteristics, it ensured the antenna in the normal operation under harsh environment in greatest degree.
  • Compact structure, Lightweight, portable, rapid deployment, high performance, a person can install within 5 minutes, available in airline baggage.
  • The latest design of the Ku-band satellite antenna, being compact and robust, cost-effective can be used in the fast and reliable satellite communications.
  • Designed specifically for field use, regardless of when and where, it can quickly transfer high-quality broadband content.

SPECIFICATIONS

RF PERFORMANCE
Antenna Apperture 1.2 meters
Operation Frequency Tx 13.75-14.5 GHz
Rx 10.95-12.75 GHz
Gain Tx >43dBi
RX >42dBi
Polarization Linear
Cross-polarization Tx >30dB
Rx >30dB
VSWR Tx 1.25︰1
Rx 1.25︰1
3dB beam width Tx 1.2°
Rx 1.32°
Power Capacity 250W
Feed Interface WR75
Tx/Rx Isolation Rx >40dB Tx >85dB
Sidelobe(1°≤θ<20°) First Sidelobe <-18dB
MECHANICAL SPECIFICATION
Antenna Type Offset antenna
Main reflector material Carbon Fiber (6 panels)
Weight 17 Kg
Elevation 10°-- 85°
Azimuth ±45°
Polarization ±90°
ENVIRONMENTAL SPECIFICATION
Wind load operational 10m/s operational status
13m/s—20m/s (survival status)
Operational Temperature -40℃-+70℃
