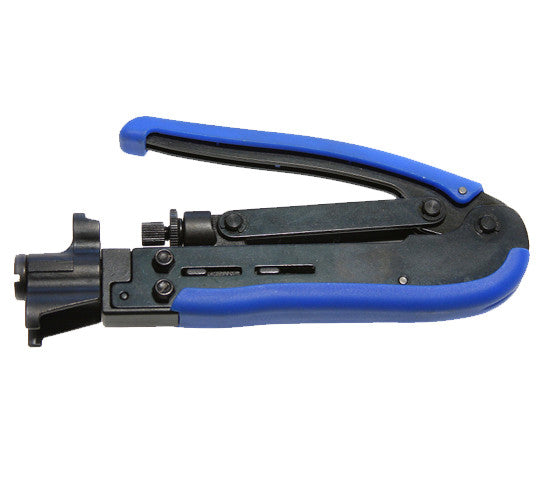

PPC VT200 RG6 RG59 RG11 Compression Tool
The VT200 professional compression tools are for use on all types of series 59, 6, 7 and 11 coaxial cable, as well as 320QR mini hardline cable.
For use with the following connectors:
| EX® | AquaTight® | CMP® |
| EX6XL EX7N716 | EX6XLWS EX11N716WS | CMP6 CMP59Q |
| EX59XL EX11 | EX59XLWS EX320QRWS | CMP6Q CMPF-MINI |
| EX59XLHE EX11N716 | EX7N716WS | CMP59 CMPF-MINI-HE |
| EX7 EX320QR |
