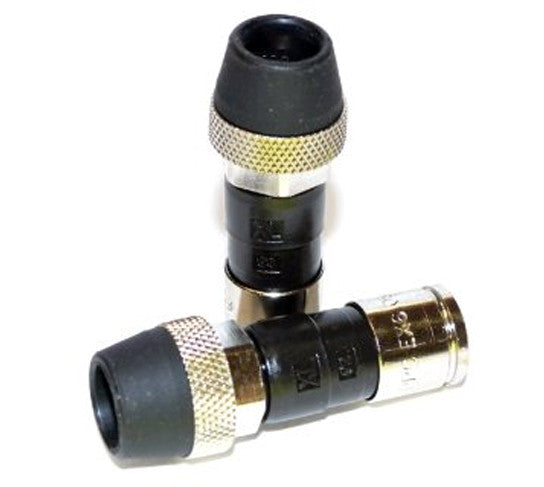

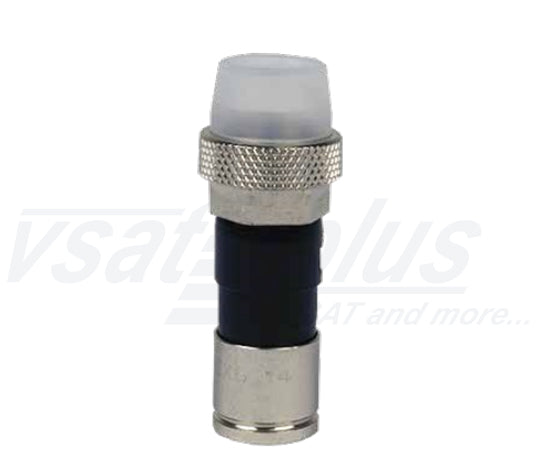

PPC EX6XLWS RG-6 AquaTight® EX® Connector (Bag of 50 pieces)
AquaTight EX Universal Compression Connectors Series 6 & 59 Datasheet
AquaTight EX Universal Compression Connectors Series 6 & 59 Installation Manual
PPC EX6XLWS RG-6 AquaTight® EX® Connector (Bag of 50 pieces)
Cables and Connectors
AquaTight EX Universal Compression Connectors Series 6 & 59 Moisture can kill a network. In real life, the use of port seals is often intermittent, and using the correct port seal is a tall order. Improper use or lack of...
USD 47.00
- SKU::
- Category: Accessories, All Products, Installation Accessories, PPC, a Belden Brand
AquaTight EX Universal Compression Connectors Series 6 & 59
Moisture can kill a network. In real life, the use of port seals is often intermittent, and using the correct port seal is a tall order. Improper use or lack of port seals leaves connectors susceptible to the elements. The PPC AquaTight® for 59 an 6 series cable guarantees the use of the proper port sealevery time, keeping the moisture out.
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -30 dB to 3 GHz |
| Insertion Loss | Less than .10 dB to 3 GHz |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40°F to +140°F (-40°C to 60°C) |
| Cable Retention | 45 lbs (20.41 kg) minimum |
Meets or exceeds all SCTE specifications
AquaTight EX Universal Compression Connectors Series 6 & 59 Datasheet AquaTight EX Universal Compression Connectors Series 6 & 59 Installation Manual
