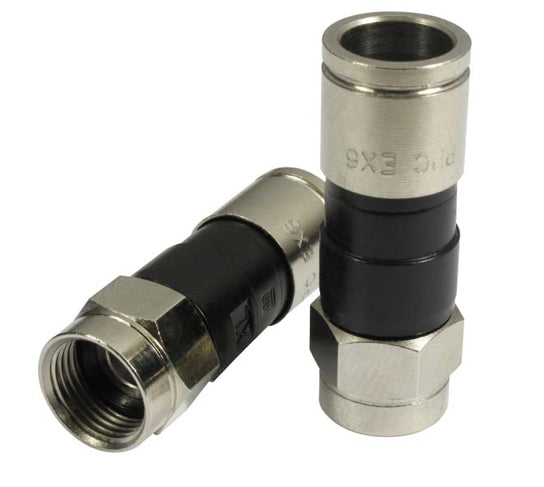

PPC EX6XL RG-6 EX® Universal Compression Connectors (Bag of 50 pieces)
EX® universal compression connectors for 6 & 59 series cable Datasheet
EX® universal compression connectors Installation Manual
PPC EX6XL RG-6 EX® Universal Compression Connectors (Bag of 50 pieces)
Cables and Connectors
EX® universal compression connectors for 6 & 59 series cable Installers are faced with the problem of identifying old unmarked 60% through Quad Shield Series 6 cable, and having to guess which connector is the best match. This results in...
USD 37.00
- SKU::
- Category: Accessories, All Products, Installation Accessories, PPC, a Belden Brand
EX® universal compression connectors for 6 & 59 series cable
Installers are faced with the problem of identifying old unmarked 60% through Quad Shield Series 6 cable, and having to guess which connector is the best match. This results in unnecessary service calls due to the use of the wrong connector/cable match.
The unique patented design of the EX® body achieves true universality on 60% through Quad Shield for PE, and PVC jackets for 6 and 59 series cable.
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -30 dB to 3 GHz |
| Insertion Loss | Less than .10 dB to 3 GHz |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40°F to +140°F (-40°C to 60°C) |
| Cable Retention | 45 lbs (20.41 kg) minimum |
EX® universal compression connectors for 6 & 59 series cable Datasheet EX® universal compression connectors Installation Manual
