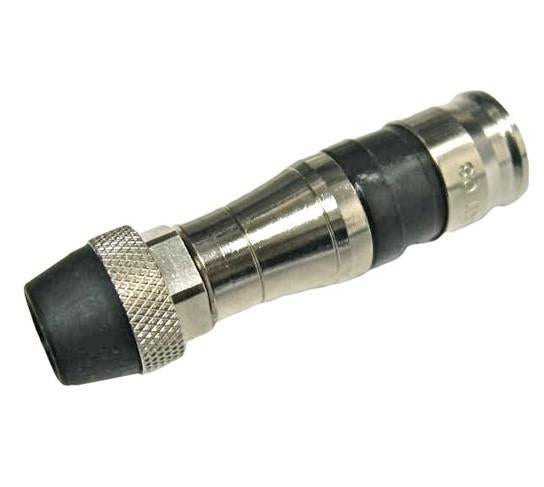

PPC EX11N716WS RG-11 AquaTight® EX® Compression Connectors (Bag of 25pieces)
PPC EX11N716WS RG-11 AquaTight® EX® Compression Connectors (Bag of 25pieces)
Cables and Connectors
AquaTight™ EX Compression Connectors Series 7 &11 PPC’s revolutionary AquaTight™ integrated port seal technology has now been expanded across the entire EX Series product line! This design concept combines an EX compression connector with an integrated port seal and guarantees...
USD 98.00
- SKU::
- Category: Accessories, All Products, Installation Accessories, PPC, a Belden Brand
AquaTight™ EX Compression Connectors Series 7 &11
PPC’s revolutionary AquaTight™ integrated port seal technology has now been expanded across the entire EX Series product line!
This design concept combines an EX compression connector with an integrated port seal and guarantees the use of a port seal every time to eliminate moisture migration problems.
The unique patented design of the EX® body achieves true universality on 60% through Quad Shield, PE, and PVC jacket.
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -30 dB to 3 GHz |
| Insertion Loss | Less than .10 dB to 3 GHz |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40°F to +140°F (-40°C to 60°C) |
| Cable Retention | 45 lbs (20.41 kg) minimum |
Meets or exceeds all SCTE specifications
