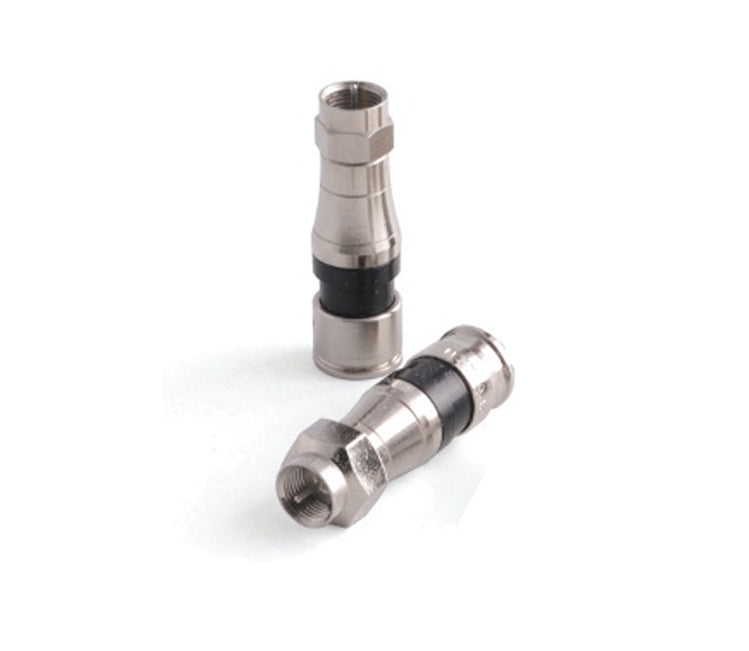

PPC EX11N716 Series 11 Universal Compression Connector (Bag of 25pieces)

PPC EX11N716 Series 11 Universal Compression Connector (Bag of 25pieces)

Connectors

EX Universal Compression Connectors Series 7 & 11 Cable  The unique patented design of the EX® Series body provides a universal compression fit on all Series 11 drop cable types (standard, tri and quad).  The resulting ease of installation and  reliability make...

  • Category: Accessories, All Products, Installation Accessories, PPC, a Belden Brand

EX Universal Compression Connectors Series 7 & 11 Cable

The unique patented design of the EX® Series body provides a universal compression fit on all Series 11 drop cable types (standard, tri and quad).  The resulting ease of installation and  reliability make the EX® Series the most resistant to craft error,  moisture ingress and improper cable/connector matching of any connector on the market.

Bag of 25

EX11N716 DIRECTV and DISH Approved RG-11 Connectors, package of 25. Installers are faced with the problem of identifying old unmarked 60% through Quad Shield Series 11 cable, and having to guess which connector is the best match. This results in unnecessary service calls due to the use of the wrong connector/cable match. The unique patented design of the EX® body achieves true universality on 60% through Quad Shield for PE, and PVC jackets.

Moisture-tight patented design eliminates damage to cable and reduces service calls

  • Universal fit on 60% to Quad cable reduces inventory and installation error
  • 1-piece construction ensures excellent moisture sealing and no missing pieces during installation
  • Physically contoured parts for easy size identification
  • Sold in polybag of 25 pieces
Bandwidth 0 MHz to 3 GHz
Impedance 75 Ohms (nominal)
Return Loss Minimum -30 dB to 3 GHz
Insertion Loss Less than .10 dB to 3 GHz
Operating Voltage 90 V (at 60 Hz continuous AC)
Operating Temperature -40°F to +140°F (-40°C to 60°C)
 Cable Retention 45 lbs (20.41 kg) minimum

Meets or exceeds all SCTE specifications
