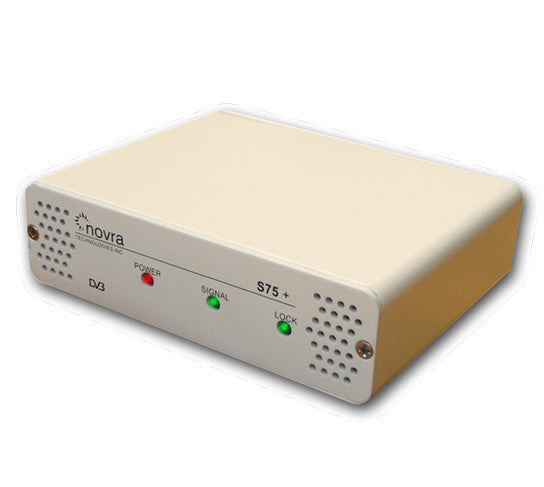

Novra S75+ DVB-S Data Receiver
The S75+ DVB-S satellite receivers are low cost, compact and robust devices that receives a DVB-S satellite signal and passes the IP or MPEG data onto your LAN.
The S75 capabilities are summarized along with the S200 and S300 in the Novra Receiver Summary Table.
The following features are common to all S75 models:
- DVB-S Compliant
- QPSK Demodulation up to 45 Msps @ 7/8 FEC
- Up to 70 Mbps Sustained Throughput
- RJ45 10/100BaseT Ethernet Interface
- IGMP
- Compact Form Factor
Height 3.58 cm 1.41 in
Width 13.27cm 5.22 in
Length 10.42 cm 4.10 in
| RF Tuner | |
|---|---|
| Receiving Frequency | 950 to 2150 MHz |
| Frequency Acquisition | ± 50% Symbol Rate up to ±10 MHz |
| Input Signal Level | -65 dBm to -25 dBm |
| QPSK | |
| Symbol Rate: | 1.5 to 45 Msps |
| Data Rate: | 70 Mbps |
| Root-Raise Cosine Filter with Roll-o 0.35 | |
| DVB Signalling | |
| FEC | |
| Decoding: | Viterbi/Reed-Solomon |
| Viterbi Inner Code: | K=7, R=1/2, 2/3, 3/4, 5/6, 7/8 (Auto Detection) |
| Reed-Solomon Decoding: | 204, 188, T=8 |
| Deinterleaving: | Interleaving Depth=12 |
| LNB Power and Control | |
| LNB Supply Voltage | Selectable 13/18V, 11/15V or off |
| LNB Supply with selectable long line compensation | |
| LNB Control | Selectable 22 KHz, 44 KHz or off |
| LNB Supply Current | 400 mA with Short Circuit and Surge Protection |
| Configuration | |
| IP Address Configuration | |
| PID Selection | |
| LNB Power | |
| Transponder Settings | Symbol Rate, Frequency, Polarization, Band, Power |
| Management Console Application Currently Available as both an Executable and a DLL for MS Windows |
|
| Status Monitoring | |
| Signal Strength | |
| Signal Lock, Data Lock | |
| Error status | Viterbi BER, Uncorrectable Errors |
| Status Indicators | |
| Power | Red LED |
| Lock | Green LED |
| Data | Blue LED |
| Ethernet Link (green) and Transmit (yellow) | |
| Hardware Capabilities | |
| Multiprotocol Encapsulation (MPE) | |
| PID Filters | 16 |
| Internal Hardware Watchdog | |
| Non-Volatile Configuration Storage | |
| Field upgradeable operating system for new s/w releases and functional upgrades |
|
| Operating Systems | |
| Once Congured, is OS Independent | |
| Physical Interfaces | |
| RF Input Connector | F-Type, 75 ohms |
| Ethernet 100 Base-T LAN Interface | RJ-45 |
| Physical/Environmental | |
| Height | 1.41 in (3.58 cm) |
| Width | 5.22 in (13.26 cm) |
| Depth | 4.10 in (10.42 cm) |
| Operating Temperature | 0C to 40C |
| Storage Temperature | -55C to 85C |
| Operating Humidity | 10 to 90% Non-Condensing |
| Standards/Regulatory | |
| UDP/TCP/IP Protocol | |
| IP Multicast | |
| IGMP | V1.0, V2.0 |
| ETSI 301.192 DVB | |
| ISO/IEC 13818-1 | |
| ISO/IEC 13818-6 | |
| IEEE 802.3 10/100 Mbps | |
| FCC/Industry Canada CE | |
| Emission EN 55022 | |
| Immunity EN 55024 | |
| Safety EN 60950 | |
