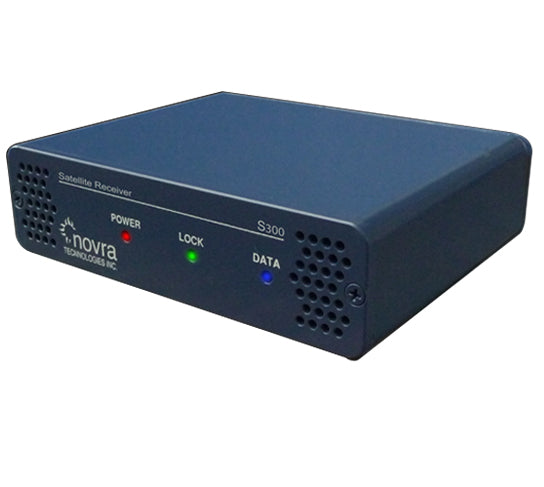

Novra S300V DVB-S2 Satellite Data and Video Receivers

Novra S300V DVB-S2 Satellite Data and Video Receivers

DVB-S/S2

The S300V pro­vides all the func­tions of the S300D, plus it pro­vides spe­cial video han­dling capa­bil­i­ties that make it ide­ally suited to receive and dis­trib­ute MPEG video pro­gram­ming over your LAN. The S300V sim­pli­fies the con­fig­u­ra­tion of your video pro­gram­ming...

  • Category: All Products, DVB-S/DVB-S2, Novra

The S300V pro­vides all the func­tions of the S300D, plus it pro­vides spe­cial video han­dling capa­bil­i­ties that make it ide­ally suited to receive and dis­trib­ute MPEG video pro­gram­ming over your LAN.

The S300V sim­pli­fies the con­fig­u­ra­tion of your video pro­gram­ming so that you only need to select your desired pro­gram (from the Pro­gram List) and the IP address/port you wish to send this pro­gram to. The S300V does the rest. It also pro­vides flex­i­bil­ity to include or exclude selected, Audio, Tele­tex and SI Table PID’s. The S300V sup­ports both Sin­gle Pro­gram Trans­port Stream(s) (SPTS) and Multi-Program Trans­port Stream (MPTS) deployments.

The S300V is ide­ally suited for use as a video aggre­ga­tion point for your IPTV con­tent where dis­tri­b­u­tion over Lan is desired. Typ­ically, it is deployed into head-end net­works such as: hotel or cruise ship info­tain­ment, IPTV ser­vice, or cable TV ser­vice.

Novra’s S300 DVB-S2 Data receiver extends the performance of the S200 DVB-S2 Data receiver by enabling operation up to 32 APSK with multistream VCM support and by providing enhanced video handling capabilities.

The S300 capabilities are summarized along with the S75 and S200 in the Novra Receiver Summary Table below.

The following features are common to all S300 models:

  • DVB-S and DVB-S2 Compliant
  • DVB-S Demodulation:
    • QPSK (DVB-S) up to 45 Msps @ 7/8 FEC
  • DVB-S2 Demodulation
    • QPSK up to 45 Msps @ 8/9 FEC
    • 8PSK up to 45 Msps @ 9/10 FEC
    • 16 APSK up to 45 Msps @ 9/10 FEC
    • 32 APSK up to 45 Msps @ 9/10 FEC
  • Up to 80 Mbps Sustained Throughput
  • Support for VCM
  • Support for ISI Filtering
  • Operation down to 100 Kbaud
RF Tuner
Receiving Frequency 950 to 2150 MHz
Frequency Acquisition ± 10 MHz above 10 Msps
Input Signal Level -70 dBm to -25 dBm
Multi-standard Demodulation
QPSK: 100 Ksps to 45 Msps (DVB-S) Automatic Code Rate detection and lock
QPSK: 100 Ksps to 45 Msps (DVB-S2) Data Throughput: 80 Mbps
8PSK: 100 Ksps to 45 Msps (DVB-S2) Nyquist Root Filter: 0.2, 0.25, 0.35 rollo
16 APSK: 100 Ksps to 45 Msps (DVB-S2) Multi-stream VCM
32 APSK: 100 Ksps to 45 Msps (DVB-S2) ISI Filteirng
Automatic Symbol Rate detection and lock ACM Support
Multi-Standard Decoding FEC (Forward Error Correction)
DVB-S Viterbi 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 puncture rates
Reed Soloman 16 bit decoder
DVB-S2 LDPC 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 rates
BCH (Bose-Chaudhuri-Hocquenghem) decoder
LNB Power and Control
LNB Supply Voltage Selectable 11/15V, 13/18V, 21V or off
LNB Supply with selectable long line compensation
LNB Control Selectable 22 KHz, 44 KHz or off
LNB Supply Current 400 mA with Short Circuit and Surge Protection
Configuration
IP Address Configuration Command Line tool available for Linux, Windows,
MAC OS, and FreeBSD
PID/Program Selection
LNB Power
Transponder Settings
Management Console Application available as an
MS Windows Executable
Status Monitoring
Signal Strength
Signal Lock, Data Lock
Error status Viterbi BER, Uncorrectable Errors
Status Indicators
Power Red LED
Lock Green LED
Data Blue LED
Ethernet Link (green) and Transmit (yellow)
Hardware Capabilities
Multiprotocol Encapsulation (MPE)
PID Filters 16
Internal Hardware Watchdog
Non-Volatile Configuration Storage
Field upgradeable operating system for new
s/w releases and functional upgrades
Operating Systems
Once Configured, Receiver Supports all
Operating Systems
Physical Interfaces
RF Input Connector F-Type, 75 ohms
Ethernet 100 Base-T LAN Interface RJ-45
CI Slot PCMICA
Physical/Environmental
Height 1.41 in (3.58 cm)
Width 5.22 in (13.26 cm)
Depth 4.10 in (10.42 cm)
Operating Temperature 0C to 40C
Storage Temperature -55C to 85C
Operating Humidity 10 to 90% Non-Condensing
Standards/Regulatory
UDP/TCP/IP Protocol
IP Multicast
IGMP V1.0, V2.0
ETSI 301.192 DVB
ISO/IEC 13818-1
ISO/IEC 13818-6
IEEE 802.3 10/100 Mbps
FCC/Industry Canada CE
Emission EN 55022
Immunity EN 55024
Safety EN 60950
