Novra S300D DVB-S2 Satellite Data and Video Receivers
Novra S300D DVB-S2 Satellite Data and Video Receivers
SKU: NOV-S300D

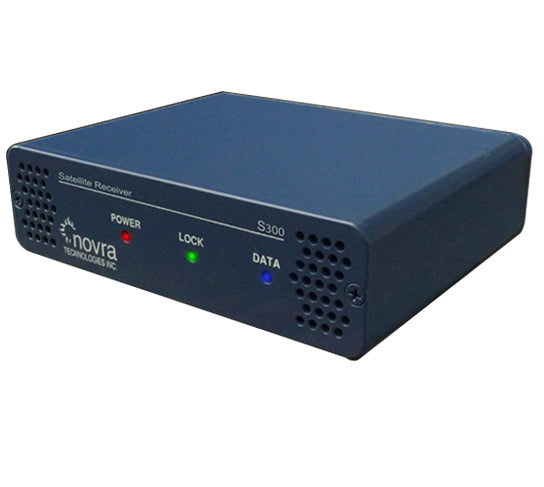

The S300D is a low cost, compact and robust data receiver that receives a DVB-S or DVB-S2 satellite signal and passes the IP data onto your LAN. It is perfectly suited for consumer or small-medium enterprise use, delivering IP-based applications over satellite such as IP multicast media streaming, weather imaging and data, distance education, digital signage, file distribution, and Internet over satellite to a single computer or to a network of computers.
Novra’s S300 DVB-S2 Data receiver extends the performance of the S200 DVB-S2 Data receiver by enabling operation up to 32 APSK with multistream VCM support and by providing enhanced video handling capabilities.
The S300 capabilities are summarized along with the S75 and S200 in the Novra Receiver Summary Table below.
The following features are common to all S300 models:
- DVB-S and DVB-S2 Compliant
- DVB-S Demodulation:
- QPSK (DVB-S) up to 45 Msps @ 7/8 FEC
- DVB-S2 Demodulation
- QPSK up to 45 Msps @ 8/9 FEC
- 8PSK up to 45 Msps @ 9/10 FEC
- 16 APSK up to 45 Msps @ 9/10 FEC
- 32 APSK up to 45 Msps @ 9/10 FEC
- Up to 80 Mbps Sustained Throughput
- Support for VCM
- Support for ISI Filtering
- Operation down to 100 Kbaud
RF Tuner | |
---|---|
Receiving Frequency | 950 to 2150 MHz |
Frequency Acquisition | ± 10 MHz above 10 Msps |
Input Signal Level | -70 dBm to -25 dBm |
Multi-standard Demodulation | |
QPSK: 100 Ksps to 45 Msps (DVB-S) | Automatic Code Rate detection and lock |
QPSK: 100 Ksps to 45 Msps (DVB-S2) | Data Throughput: 80 Mbps |
8PSK: 100 Ksps to 45 Msps (DVB-S2) | Nyquist Root Filter: 0.2, 0.25, 0.35 rollo |
16 APSK: 100 Ksps to 45 Msps (DVB-S2) | Multi-stream VCM |
32 APSK: 100 Ksps to 45 Msps (DVB-S2) | ISI Filteirng |
Automatic Symbol Rate detection and lock | ACM Support |
Multi-Standard Decoding FEC (Forward Error Correction) | |
DVB-S | Viterbi 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 puncture rates Reed Soloman 16 bit decoder |
DVB-S2 | LDPC 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 rates BCH (Bose-Chaudhuri-Hocquenghem) decoder |
LNB Power and Control | |
LNB Supply Voltage | Selectable 11/15V, 13/18V, 21V or off |
LNB Supply with selectable long line compensation | |
LNB Control | Selectable 22 KHz, 44 KHz or off |
LNB Supply Current | 400 mA with Short Circuit and Surge Protection |
Configuration | |
IP Address Configuration | Command Line tool available for Linux, Windows, MAC OS, and FreeBSD |
PID/Program Selection | |
LNB Power | |
Transponder Settings | |
Management Console Application available as an MS Windows Executable |
|
Status Monitoring | |
Signal Strength | |
Signal Lock, Data Lock | |
Error status | Viterbi BER, Uncorrectable Errors |
Status Indicators | |
Power | Red LED |
Lock | Green LED |
Data | Blue LED |
Ethernet Link (green) and Transmit (yellow) | |
Hardware Capabilities | |
Multiprotocol Encapsulation (MPE) | |
PID Filters | 16 |
Internal Hardware Watchdog | |
Non-Volatile Configuration Storage | |
Field upgradeable operating system for new s/w releases and functional upgrades |
|
Operating Systems | |
Once Configured, Receiver Supports all Operating Systems |
|
Physical Interfaces | |
RF Input Connector | F-Type, 75 ohms |
Ethernet 100 Base-T LAN Interface | RJ-45 |
CI Slot | PCMICA |
Physical/Environmental | |
Height | 1.41 in (3.58 cm) |
Width | 5.22 in (13.26 cm) |
Depth | 4.10 in (10.42 cm) |
Operating Temperature | 0C to 40C |
Storage Temperature | -55C to 85C |
Operating Humidity | 10 to 90% Non-Condensing |
Standards/Regulatory | |
UDP/TCP/IP Protocol | |
IP Multicast | |
IGMP | V1.0, V2.0 |
ETSI 301.192 DVB | |
ISO/IEC 13818-1 | |
ISO/IEC 13818-6 | |
IEEE 802.3 10/100 Mbps | |
FCC/Industry Canada CE | |
Emission EN 55022 | |
Immunity EN 55024 | |
Safety EN 60950 |
