DVB-S/S2

The S200CA pro­vides all the func­tions and fea­tures of the S200 and S200-Pro receivers, plus it adds a DVB-Compliant con­di­tional access Com­mon Inter­face (DVB-CI) slot. The inclu­sion of the DVB-CI slot pro­vides a cost-effective means to pro­vide com­pat­i­bil­ity with the...

  • Category: All Products, DVB-S/DVB-S2, Novra

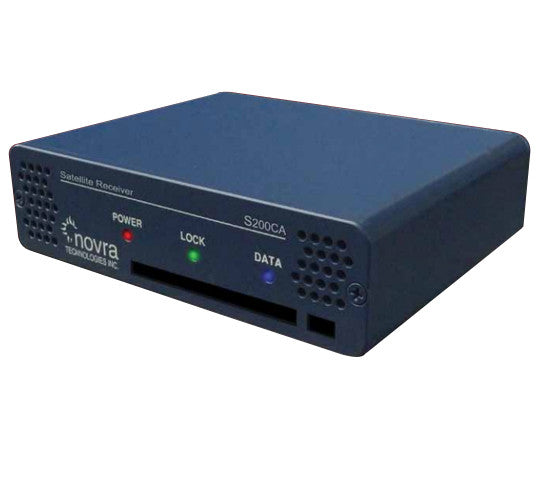

The S200CA pro­vides all the func­tions and fea­tures of the S200 and S200-Pro receivers, plus it adds a DVB-Compliant con­di­tional access Com­mon Inter­face (DVB-CI) slot. The inclu­sion of the DVB-CI slot pro­vides a cost-effective means to pro­vide com­pat­i­bil­ity with the vast major­ity of DVB con­di­tional access systems.

The S200CA is ide­ally suited as a video aggre­ga­tion point for your IPTV net­work where dis­tri­b­u­tion over LAN is desired and the con­tent is scram­bled with a DVB con­di­tional access sys­tem. The S200CA is typ­i­cally deployed along side the S200-Pro into head-end net­works such as: hotel or cruise ship info­tain­ment, IPTV ser­vice, or cable TV ser­vice head ends.

The S200 DVB-S2 satellite receiver is a compact and robust device that receives a DVB-S or DVB-S2 satellite signal and passes the IP or MPEG data onto your LAN.

The S200 capabilities are summarized along with the S75 and S300 in the Novra Receiver Summary Table.

The following features are common to all S200 models:

  • DVB-S and DVB-S2 Compliant
  • DVB-S Demodulation:
    • QPSK (DVB-S) up to 45 Msps @ 7/8 FEC
  • DVB-S2 Demodulation
    • QPSK up to 45 Msps @ 8/9 FEC
    • 8PSK up to 30 Msps @ 9/10 FEC
  • Up to 80 Mbps Sustained Throughput
  • RJ45 10/100BaseT Ethernet Interface
  • IGMP Support
  • Compact Form Factor

Height 3.58 cm 1.41 in
Width 13.27cm 5.22 in
Length 10.42 cm 4.10 in
.

RF Tuner
Receiving Frequency 950 to 2150 MHz
Frequency Acquisition ± 50% Symbol Rate up to ±10 MHz
Input Signal Level -70 dBm to -25 dBm
Multi-standard Demodulation
DVB-S - QPSK 1.0 to 45 Msps (auto selection)
DVB-S2 - QPSK 1-45 Msps (auto selection)
DVB-S2 - 8PSK 1-30 Msps (auto selection)
Data Rate 72 Mbps
Nyquist Root Filter 0.2, 0.25, 0.35 rolloff
Multi-Standard Decoding FEC (Forward Error Correction)
DVB-S Viterbi 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 puncture rates
Reed Soloman 16 bit decoder
DVB-S2 LDPC 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 rates
BCH (Bose-Chaudhuri-Hocquenghem) decoder
LNB Power and Control
LNB Supply Voltage Selectable 13/18V, 11/15V or off
LNB Supply with selectable long line compensation
LNB Control Selectable 22 KHz, 44 KHz or o
LNB Supply Current 400 mA with Short Circuit and Surge Protection
Configuration
IP Address Configuration
PIOD Selection
LNB Power
Transponder Settings Symbol Rate, Frequency, Polarization, Band, Power
Management Console Application Currently Available as
both an Executable and a DLL for MS Windows
Status Monitoring
Signal Strength
Signal Lock, Data Lock
Error status Viterbi BER, Uncorrectable Errors
Status Indicators
Power Red LED
Lock Green LED
Data Blue LED
Ethernet Link (green) and Transmit (yellow)
Hardware Capabilities
Multiprotocol Encapsulation (MPE)
PID Filters 16
Internal Hardware Watchdog
Non-Volatile Configuration Storage
Field upgradeable operating system for new
s/w releases and functional upgrades
Operating Systems
Once Configured, Receiver Supports all
Operating Systems
Physical Interfaces
RF Input Connector F-Type, 75 ohms
Ethernet 100 Base-T LAN Interface RJ-45
Physical/Environmental
Height 1.41 in (3.58 cm)
Width 5.22 in (13.26 cm)
Depth 4.10 in (10.42 cm)
Operating Temperature 0C to 40C
Storage Temperature -55C to 85C
Operating Humidity 10 to 90% Non-Condensing
Standards/Regulatory
UDP/TCP/IP Protocol
IP Multicast
IGMP V1.0, V2.0
ETSI 301.192 DVB
ISO/IEC 13818-1
ISO/IEC 13818-6
IEEE 802.3 10/100 Mbps
FCC/Industry Canada CE
Emission EN 55022
Immunity EN 55024
Safety EN 60950
