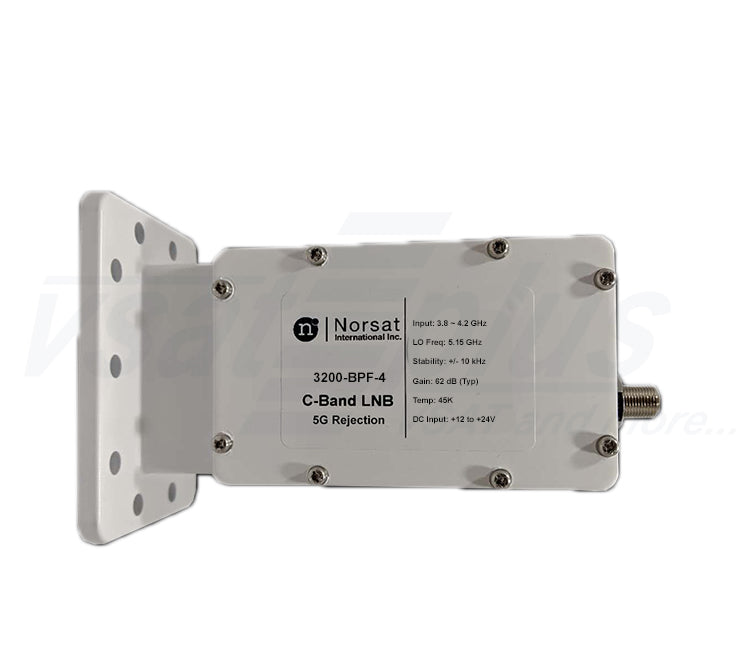

Norsat Series 3200-BPF-4 5G C-Band 5G Interference LNB

Norsat Series 3200-BPF-4 5G C-Band 5G Interference LNB

C-Band PLL LNB

Norsat’s C-band Interference bandpass filter features a broad passband with low insertion loss, steep skirts that roll off quickly and high stopband rejection. Rejection: <3.7 GHz and >4.8 GHz with no degradation Input Frequency: 3.8 – 4.2 GHz Local Frequency:...

USD 520.00
  • Category: All Products, C-Band LNBs, Low Noise Block LNB, New Arrivals, Norsat

Norsat’s C-band Interference bandpass filter features a broad passband with low insertion loss, steep skirts that roll off quickly and high stopband rejection.

  • Rejection: <3.7 GHz and >4.8 GHz with no degradation
  • Input Frequency: 3.8 – 4.2 GHz
  • Local Frequency: 5.15 GHz
  • Output Frequency: 950 – 1350 MHz
  • Local Stability: ±10 kHz
  • Noise Temperature: 45K

KEY SPECIFICATIONS
Product Family 3000 Series
Band C-Band
LO Type PLL
# of onboard LOs Single-band
LO Stability ± 10 kHz max.
Input Frequency - Band 1 C-Band: 3.754 - 4.20 GHz
Output Frequency 1 L-Band: 950 - 1396 MHz

RF SPECIFICATIONS
Input Frequency 3.8 - 4.2 GHz
LO Frequency 1 5.15 GHz
Phase Noise @ 1KHz offset -80 dBc/Hz
Phase Noise @ 10KHz offset -85 dBc/Hz
Phase Noise @ 100KHz offset -95 dBc/Hz
Conversion Gain 55 - 70 dBm
Input VSWR 2.5 : 1
Output VSWR 2.5 : 1
Output P1dB compression point 9 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 300 mA

INTERFACE SPECIFICATIONS
RF Input Connector CPR 229G waveguide grooved
RF Output Connector F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C

PHYSICAL SPECIFICATIONS

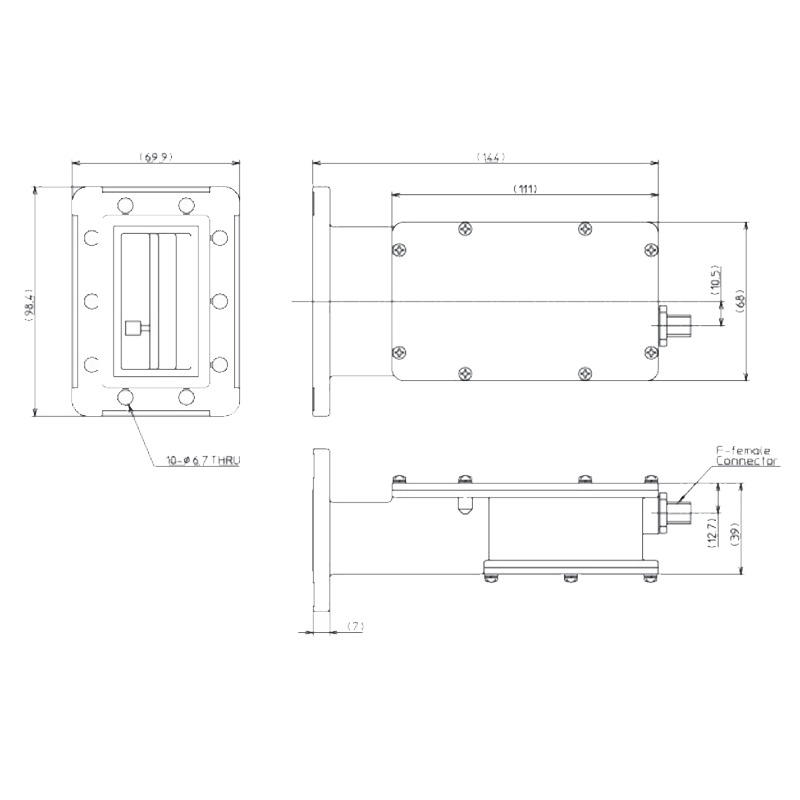

Dimensions (L x W x H) 144 x 70 x 98 mm
Weight 0.5 kg
