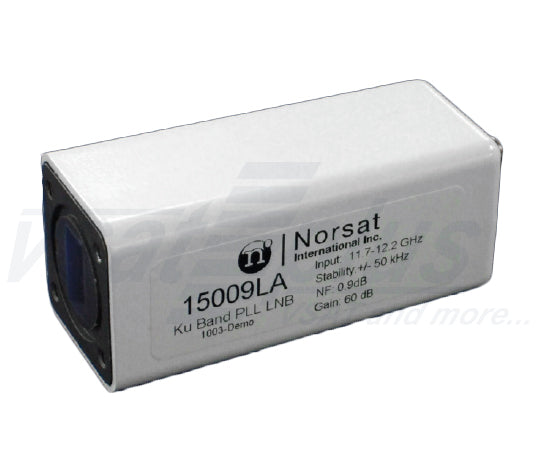

Norsat Series 15000L Ku-Band PLL LNB LO Stability ±50 kHz

Norsat Series 15000L Ku-Band PLL LNB LO Stability ±50 kHz

Ku-Band PLL LNBs

FEATURES L.O. stability ±50 kHz (over temperature excl offset) Phase noise -65 dBc/Hz at 1kHz (SSB), -75 dBc/Hz at 10kHz, -85 dBc/Hz at 100kHz Input VSWR 2.0 : 1 Output VSWR 2.0 : 1 Conversion gain 62 dB Output P1dB 6 dBm Power...

  • Category: All Products, Ku-Band LNBs, Low Noise Block LNB, Norsat

FEATURES

  • L.O. stability ±50 kHz (over temperature excl offset)
  • Phase noise -65 dBc/Hz at 1kHz (SSB), -75 dBc/Hz at 10kHz, -85 dBc/Hz at 100kHz
  • Input VSWR 2.0 : 1
  • Output VSWR 2.0 : 1
  • Conversion gain 62 dB
  • Output P1dB 6 dBm
  • Power requirements +15 to +24 V supplied through center conductor of IF cable
  • Current drain 170 mA
  • Input Waveguide WR75
  • Dimensions 110 (L) x 42 (W) x 42 (H) mm, (4.3 x 1.7 x 1.7 in)
  • Weight 300g / 10.6 oz
  • Temperature Range -40°C to + 60°C

FREQUENCY BANDS AVAILABLE

Typical service

15000LA

 15000LB

15000LC

Input frequency (GHz)

11.70 to 12.20

12.25 to 12.75

10.95 to 11.70

L.O. frequency (GHz)

10.75

 11.30

10.00

Output frequency (MHz)

950 to 1450

950 to 1450

950 to 1700

Norsat 15000L Specifications
Phase noise
    (SSB) maximum
-65 dBc/Hz at 1 kHz
-75 dBc/Hz at 10 kHz
-85 dBc/Hz at 100 kHz
Input VSWR maximum 2.2 : 1
Output VSWR maximum 2.2 : 1
Conversion gain 50 dB min
65 dB max
Output P1dB maximum 6 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain maximum 200 mA
Dimensions 110 (L) x 42 (W) x 42 (H) mm
(4.3 x 1.7 x 1.7 in)
Weight 300 g / 10.6 oz
